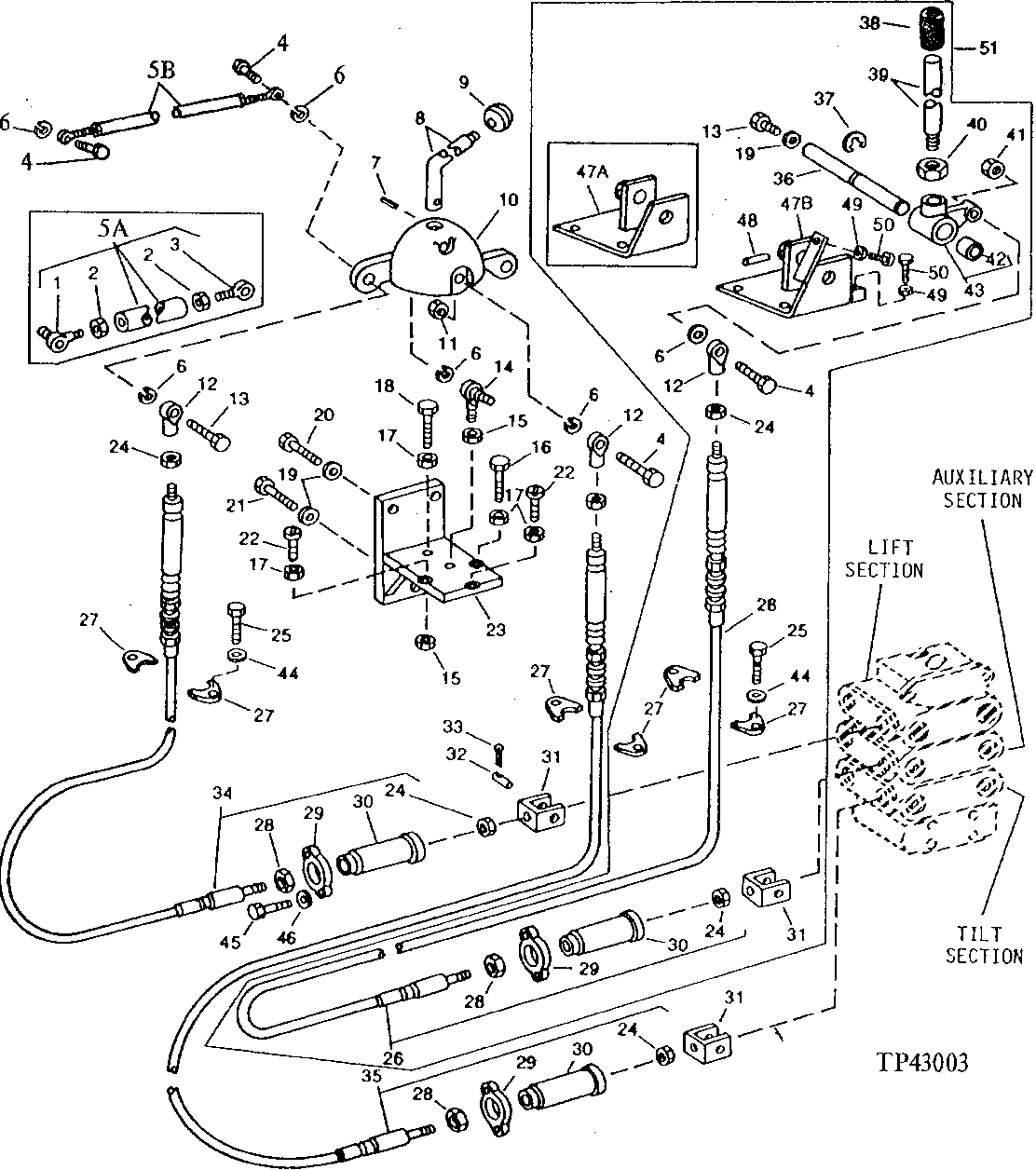

DOZER CONTROL LINKAGE (THREE-SPOOL VALVE) [03G13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT46597	1	Ball Joint	-
2	14H882	2	Nut	5/16"
3	AT46594	1	LINK END	-
4	19H2477	3	CAP SCREW	5/16" X 1-1/4"
6	12H303	4	Lock Washer	5/16", (2-BETWEEN CABLE END BALLJOINT AND CAST BALL) (1-CAST BALL AUXILIARY LEVER)
7	25H524	1	GROOVE PIN	3/16" X 1-1/4"
8	T72553	1	LEVER	-
9	AP17808	1	Knob	-
10	T119998	1	BASE	(SUB FOR T59368)
11	R11151	1	Lock Nut	-
12	R56397	1	Washer	-
12	AT81077	3	LINK END	-
13	19H2676	1	Cap Screw	HS, SAE 8, 3/8" X 1" (SHAFT TO RIGHT HAND CONSOLE)
14	AT75688	1	BALL JOINT	-
15	14H866	2	Nut	5/8"
16	12H294	1	Lock Washer	5/8", (BASE CONTROL LEVER ROD END BALLJOINT)
17	14H1076	4	Nut	3/8"
18	19H3239	1	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
19	12H304	4	Lock Washer	3/8"
20	19H1648	2	Cap Screw	HS, SAE 8, 3/8" X 3/4"
21	19H1648	1	Cap Screw	HS, SAE 8, 3/8" X 3/4"
22	19H2791	3	Cap Screw	3/8" X 1-3/4", (INTO FRONT, REAR, AND OUTER TAPPED HOLES OF LEVER BASE BRACKET TO POSITION CONTROL LEVER IN CENTER OF CONSOLE HOLE OPENING)
23	AT117811	1	BRACKET	(SUB FOR AT81086)
24	14H649	6	Nut	1/4"
25	19H3467	6	Screw	5/16" X 1"
26	AT81076	1	CABLE	(WITHOUT CAB)
26	AT81079	1	CABLE	(WITH CAB)
27	T82272	6	PLATE	-
28	14H904	3	Nut	3/4"
29	T80559	3	FLANGE	-
30	T81032	3	SLEEVE	-
31	T80557	3	CLEVIS	-
32	T80558	3	PIN FASTENER	-
33	11M7077	3	Cotter Pin	1.600 X 25 MM
34	AT150915	1	CABLE	(LIFT FUNCTION) (WITHOUT CAB)
34	AT150916	1	CABLE	(LIFT FUNCTION) (WITH CAB)
34	AT150916	1	CABLE	(AUXILIARY FUNCTION) (WITHOUT CAB)
35	AT150917	1	CABLE	(AUXILIARY FUNCTION) (WITH CAB)
35	AT150917	1	CABLE	(TILT FUNCTION) (WITH AND WITHOUT CAB)
36	T50789	1	PIN FASTENER	(WITH CAB)
36	T48086	1	PIN FASTENER	(WITHOUT CAB)
37	R27434	1	Snap Ring	-
38	-	1	Part 46	(TO HOLD GRIP ON AUXILIARY LEVER)
38	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
39	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
40	14H821	1	Nut	5/8"
41	14H785	1	Nut	5/16"
42	M1640T	1	BUSHING	-
43	T50788	1	LEVER	(SUB FOR AT49356) (WITH CAB)
43	AT64256	1	BELLCRANK	(WITHOUT CAB)
44	24H1685	6	Washer	11/32" X 47/64" X 0.083"
45	19H2992	6	Screw	1/4" X 1-1/4"
46	24H1287	6	Washer	9/32" X 5/8" X 0.065", (SUB FOR T31185)
48	34H314	1	Spring Pin	1/4" X 1-1/4"
49	14H785	2	Nut	5/16", (INTO TAPPED BLOCKS FOR CABLE AUXILIARY LEVER STOPS WELDED ON EACH END OF AUXLIARY SLOT IN CONSOLE)
50	19H3552	2	Cap Screw	5/16" X 1-1/2", (INTO TAPPED BLOCKS FOR CABLE AUXILIARY LEVER STOPS WELDED ON EACH END OF AUXILIARY SLOT IN CONSOLE)
51	AT81083	1	PACKAGE OF PARTS	(AUXILIARY CONTROL LINKAGE) (INCLUDES AT81084 VALVE SECTION)
5A	-	1	Part 5	(SUB AT151186) (ALSO ORDER (2) 19H2477)
5B	AT151186	1	TIE ROD ASSEMBLY	-
47A	AT49355	1	BRACKET	-
47B	AT113017	1	BRACKET	-
