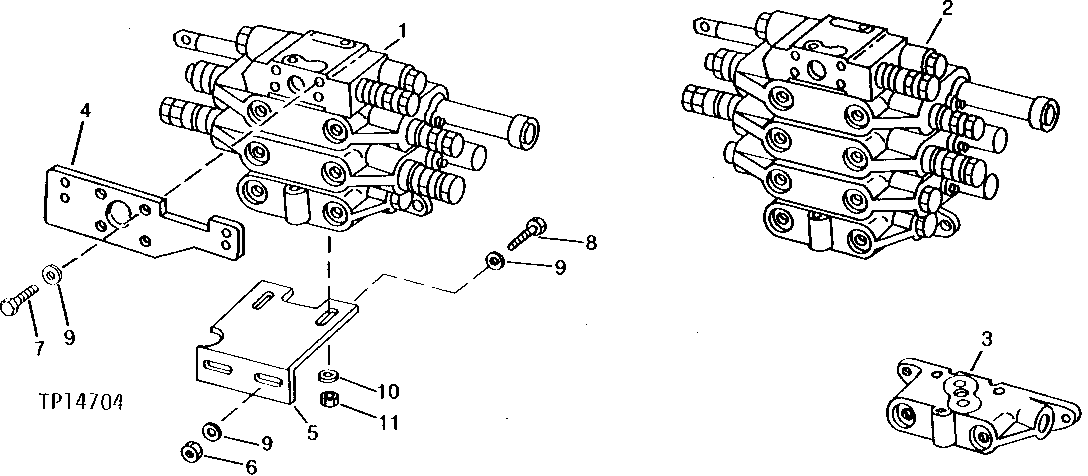

CONTROL VALVE ASSEMBLY, VALVE BRACKETS AND REMOTE INLET HOUSING (TWO AND THREE-SPOOL) [03I04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT84208	1	SPOOL VALVE	(TWO-SPOOL) (SUB AT113429) (ALSO ORDER AT113278, AT113279 AND (2) 38H1179)
1	-	1	Part 3	(AT125782 NO LONGER AVAILABLE FURNISH COMPONENTS) (TWO-SPOOL) (SUB FOR AT113429)
1	AT80070	1	SPOOL VALVE	(TWO-SPOOL)
2	AT80071	1	SPOOL VALVE	(THREE-SPOOL)
2	AT84209	1	SPOOL VALVE	(SUB AT113430, AT113278, AT113279 AND (2) 38H1179)
2	-	1	Part 6	(AT125783 NO LONGER AVAILABLE FURNISH COMPONENT PARTS) (THREE-SPOOL) (SUB FOR AT113430)
3	T82214	1	END PLATE	(FOR REMOTE MOUNTED VALVE)
4	T80555	1	PLATE	(SUB T82213)
4	T82213	1	PLATE	-
5	T80556	1	BRACKET	-
6	14H1076	2	Nut	3/8", (LOWER BRACKET TO RH PLATFORM SUPPORT)
7	19H2676	8	Cap Screw	HS, SAE 8, 3/8" X 1" (2-RH PLATFORM SUPPORT TO PLATE) (2-THREE SPOOL VALVE TO PLATE) (4-VALVE PLATE TO CENTER FRAME)
8	19H3239	2	Cap Screw	3/8" X 1-1/4", (LOWER BRACKET TO RH PLATFORM SUPPORT)
9	12H304	4	Lock Washer	3/8", (VALVE PLATE TO CENTER FRAME SCREWS)
10	T33177	2	WASHER	-
11	14H807	1	Nut	7/16", (LOWER BRACKET TO LONG VALVE STUD)
12	R57696	1	Washer	(2-RH PLATFORM SUPPORT TO PLATE SCREWS) (4-LOWER BRACKET TO RH PLATFORM SUPPORT SCREWS)
13	24M7233	2	WASHER	10.700 X 21 X 2.500 MM, (TWO OR THREE SPOOL VALVE TO PLATE SCREWS)

CONTROL VALVE ASSEMBLY, VALVE BRACKETS AND REMOTE INLET HOUSING (TWO AND THREE-SPOOL) [03I04]
