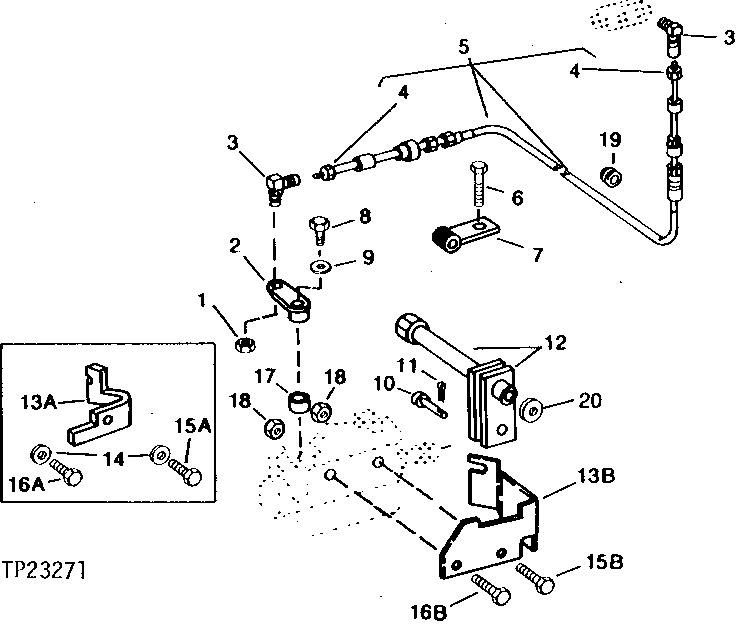

BRAKE VALVE LINKAGE (WITHOUT CAB) [02H12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T10581	2	Lock Nut	(SUB FOR T60313) (BALLJOINT TO BRAKE VALVE LEVER)
2	T127743	1	LEVER	(SUB FOR AT57844)
3	AU11709	2	Ball Joint	-
4	14H649	2	Nut	1/4"
5	AT113470	1	CABLE	(SUB FOR AT80961)
6	19H1648	1	Cap Screw	3/8" X 3/4"
7	H75541	1	Clamp	(SUB FOR R34557)
8	19H3217	1	Cap Screw	HS, SAE 8, 3/8" X 1 3/4" (BRAKE LEVER TO BRAKE VALVE)
9	24H1308	1	Washer	13/32" X 1" X 0.134", (BRAKE LEVER TO BRAKE VALVE)
10	T44988	1	Pin Fastener	(SUB FOR T15652, THIS APPLICATION)
11	11M7081	1	Cotter Pin	2.500 X 20 MM
12	AT75386	1	LEVER	-
14	12H304	2	Lock Washer	3/8"
17	T12192	1	BUSHING	-
18	T11234	2	Lock Nut	-
19	R27533	1	Grommet	-
20	24H1181	1	Washer	13/16" X 1-1/8" X 0.060", (USE PROPER NUMBER OF WASHERS TO INSURE BRAKE VALVE PUMP OFF ROD IS CENTERED BETWEEN LEVER EARS AND ROD DOES NOT BIND WHEN DEPRESSED)
13A	T59426	1	ANCHOR	-
13B	T104672	1	ANCHOR	-
15A	19H3404	1	Cap Screw	3/8" X 4"
15B	19H1925	1	Cap Screw	3/8" X 4-1/4"
16A	19H2458	1	Cap Screw	3/8" X 3"
16B	19H1912	1	Cap Screw	3/8" X 3-1/2"

BRAKE VALVE LINKAGE (WITHOUT CAB) [02H12]
