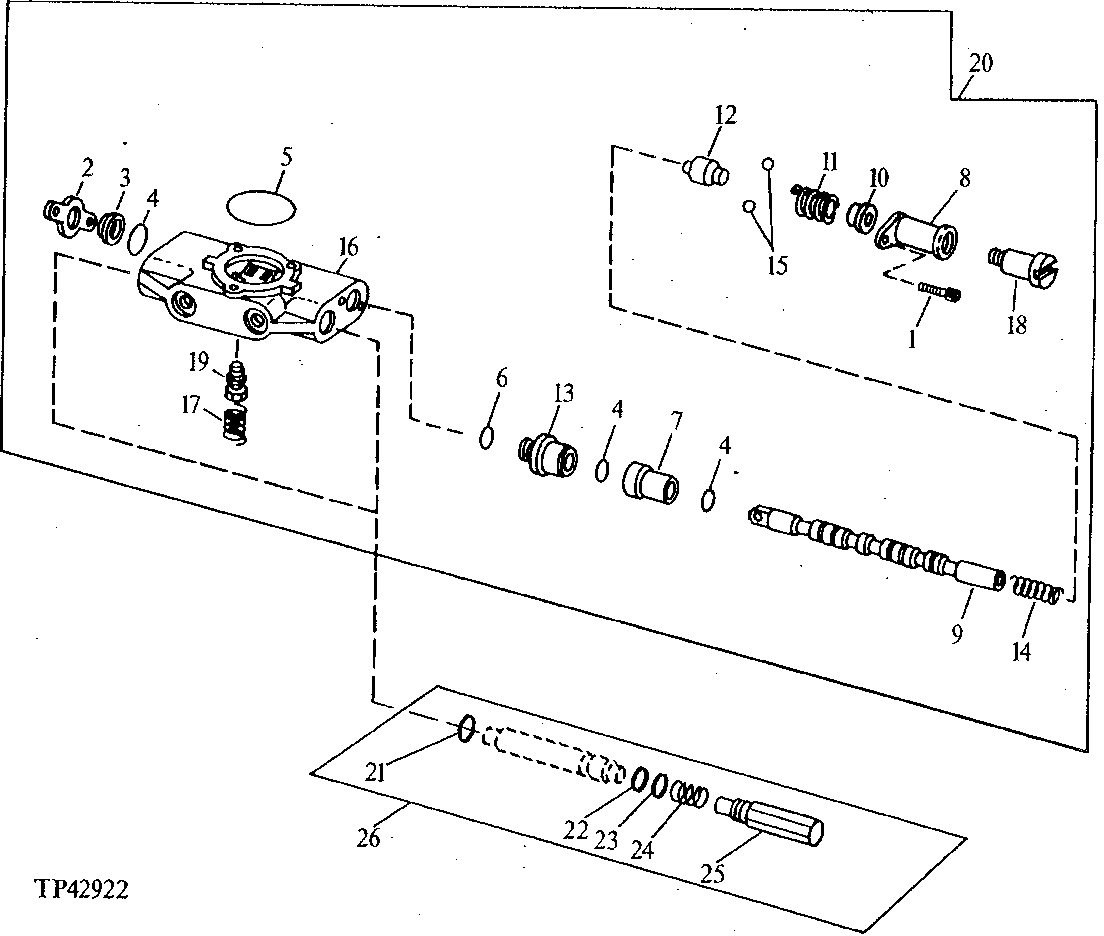

BLADE SECTION WITH CIRCUIT RELIEF VALVES (SERIAL NO. 756986- ) [03I10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T118712	2	Screw	1/4" X 2"
2	T81524	1	Plate	-
3	T81525	1	SEAL	-
4	T81526	3	O-RING	-
5	T118685	1	O-Ring	(SUB FOR H64810, THIS APPLICATION)
6	P42061	1	O-Ring	-
7	T118708	1	Valve Seat Insert	-
8	T152398	1	Cap	(SUB FOR T118707, THIS APPLICATION)
9	-	1	Part 9	(SUB AT129768) (ALSO ORDER AT168675, AT175085 AND T187884) (MAY REQUIRE AT172860)
10	T118709	1	Valve Seat Insert	-
11	T81529	1	SPRING	-
12	T118715	1	Cam	(SUB AT129768) (ALSO ORDER AT168675, AT175085 AND T187884) (MAY REQUIRE AT172860)
13	T152401	1	Sleeve	(SUB FOR T118713, THIS APPLICATION)
14	T124155	1	Spring	-
15	T81535	4	Ball	-
16	-	1	Part 16	-
17	T81539	1	Spring	-
18	T118711	1	End	-
19	T81538	1	Poppet	-
20	AT129768	1	SPOOL VALVE	(SUB FOR AT113336) (ALSO ORDER AT168675, AT175085 AND T187884) (MAY REQUIRE AT172860)
21	T118681	1	O-Ring	(K)
22	-	1	Part 22	(K)
23	-	1	Part 23	(K) BACKUP RING
24	T118867	1	Spring	-
25	T118866	1	Housing	-
26	AT129788	1	Pressure Relief Valve	CIRCUIT RELIEF, (SUB FOR AT81085)
26	AT133122	1	Pressure Relief Valve	LIFT CIRCUIT 1250PSI
-	AT314538	1	Seal Kit	7/8 INCH RELIEF VALVE SEAL KIT, (SUB FOR AT83171, AT168676, AT178359 AND AT189413)
-	AT314539	1	Seal Kit	1 1/16 INCH RELIEF VALVE SEAL KIT, (SUB FOR AT178359 AND AT189413)

BLADE SECTION WITH CIRCUIT RELIEF VALVES (SERIAL NO. 756986- ) [03I10]
