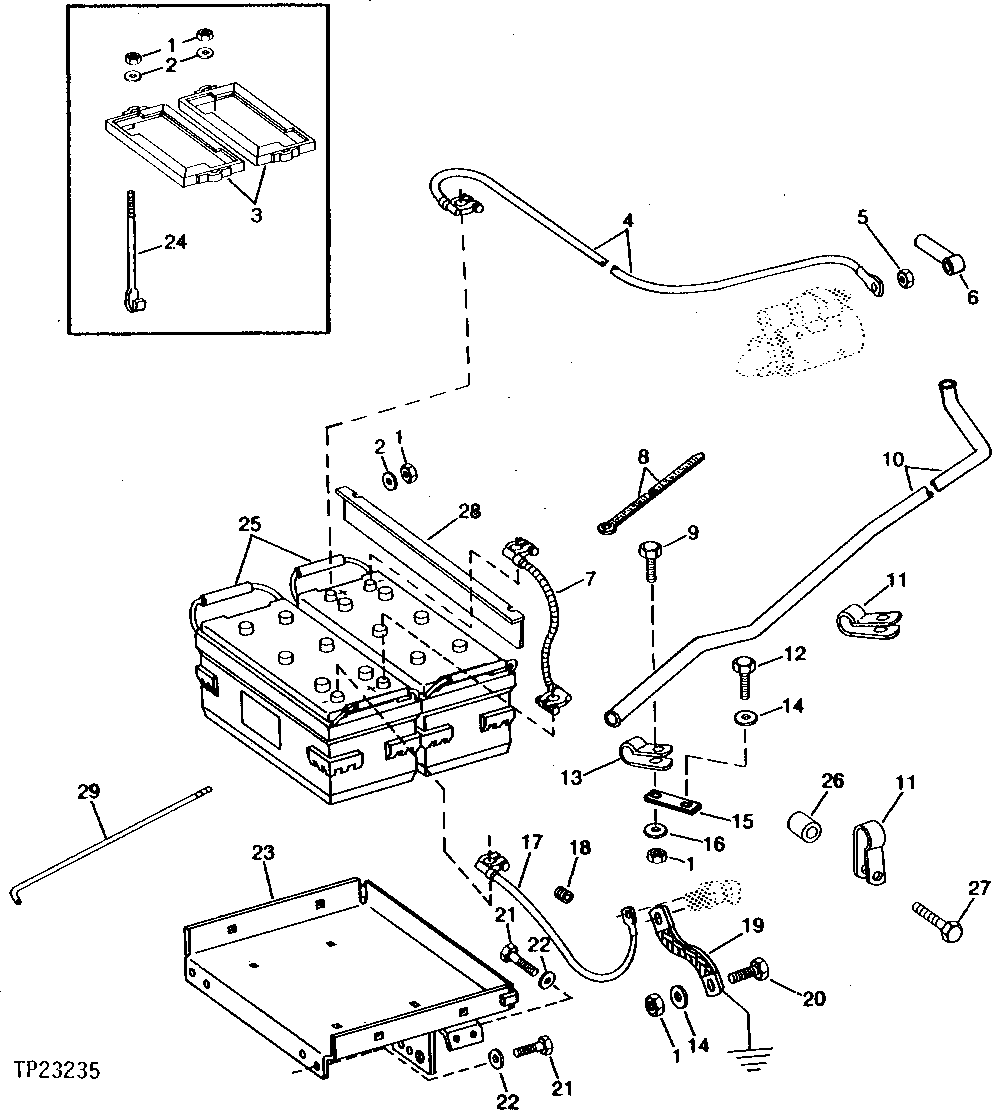

BATTERY (WITH 310-MINUTE RESERVE CAPACITY) [02I16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M40333	4	Lock Nut	1/4"
1	14H1076	5	Nut	3/8"
2	24H1308	4	Washer	13/32" X 1" X 0.134"
2	24H1288	4	Washer	9/32" X 1" X 1/16"
3	AT59763	2	FRAME	-
4	AT72173	1	BATTERY CABLE	-
5	14H826	1	Nut	1/2"
6	T74405	2	BOOT	-
7	AT72164	1	BATTERY CABLE	-
8	R44302	1	Tie Band	-
9	19H2676	1	Cap Screw	3/8" X 1"
10	T72116	1	TUBE	-
11	R72659	1	Clamp	(SUB FOR AH83545)
12	19H1648	1	Cap Screw	3/8" X 3/4"
13	T35699	1	Clamp	-
14	24H1308	5	Washer	13/32" X 1" X 0.134"
15	T48850	1	STRAP	-
16	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
17	AT74430	1	BATTERY CABLE	-
18	R41439	1	Grommet	-
19	AT38449	1	Ground Cable	-
20	19H3217	1	Cap Screw	3/8" X 1-3/4"
21	19H2898	8	Cap Screw	1/2" X 1-1/4"
22	24M7240	8	Washer	13 X 25 X 3 MM
23	AT46393	1	SUPPORT	-
23	AT112974	1	SUPPORT	-
24	T47788	4	BOLT	-
25	TY21754	2	DRY CHARGED BATTERY	(SUB FOR AU42915 AND TY6105)
25	TY6128	2	Dry Charged Battery	-
26	28H1720	1	Bushing	-
27	19H2458	1	Cap Screw	3/8" X 3"
28	T121288	2	Angle	(SUB FOR T79470, THIS APPLICATION)
29	T22571	4	Bolt	(SUB FOR T79471, THIS APPLICATION) (SUB FOR E58231)

BATTERY (WITH 310-MINUTE RESERVE CAPACITY) [02I16]
