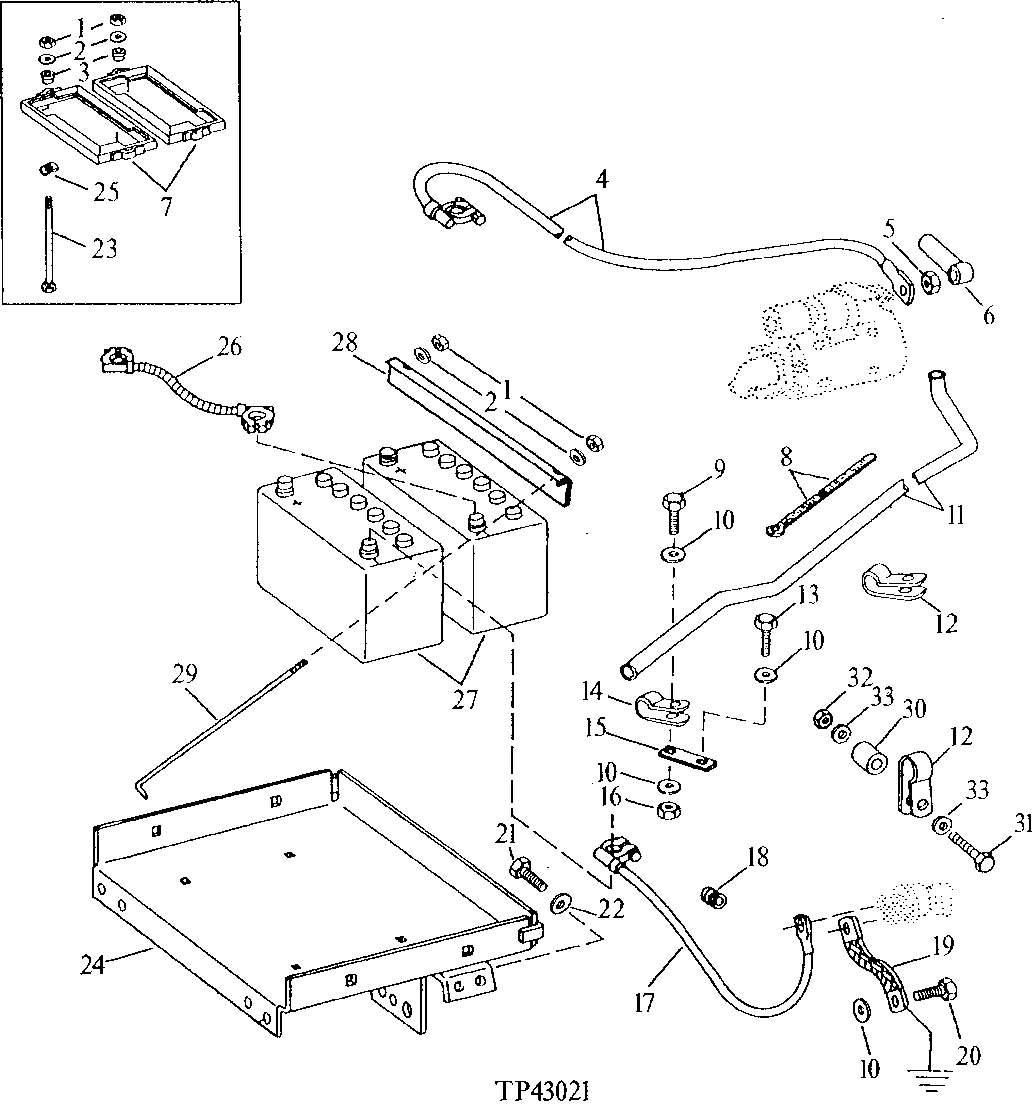

BATTERY (WITH 180-MINUTE RESERVE CAPACITY) [02I14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M40333	4	Lock Nut	1/4"
1	14H786	4	Nut	1/4"
2	24H1288	4	Washer	-
2	24H1287	4	Washer	9/32" X 5/8" X 0.065"
3	M643T	4	BUSHING	-
4	AT72173	1	BATTERY CABLE	-
5	14H826	1	Nut	1/2"
6	T74405	2	BOOT	-
7	AT11880	2	FRAME	-
8	R44302	1	Tie Band	-
9	19H2676	1	Cap Screw	3/8" X 1"
10	24H1308	4	Washer	13/32" X 1" X 0.134"
11	T72116	1	TUBE	-
12	R72659	3	Clamp	(SUB FOR AH83545)
13	19H2284	1	Cap Screw	3/8" X 7/8"
14	T35699	1	Clamp	-
15	T48850	1	STRAP	-
16	14H1076	1	Nut	3/8"
17	AT74430	1	BATTERY CABLE	-
18	R41439	1	Grommet	-
19	AT38449	1	Ground Cable	-
20	19H3217	1	Cap Screw	3/8" X 1-3/4"
21	19H2898	4	Cap Screw	1/2" X 1-1/4"
22	24H1288	4	Washer	9/32" X 1" X 1/16"
23	03H2208	4	Bolt	1/4" X 9-1/4"
24	AT46393	1	SUPPORT	-
24	AT112974	1	SUPPORT	-
25	U44618	4	PUSH NUT	-
26	AT72162	1	BATTERY CABLE	-
27	-	1	Part 30	(MAKE FROM T119816 BULK MATERIAL, CUT TO LENGTH) (MAKE (2) THREE FOOT PARTS, INSTALL OVER BATTERY VENTS AND ROUTE TO RIGHT SIDE SO VENT TUBE EXIT AT REAR OF RIGHT FENDER)
27	TY6127	2	DRY CHARGED BATTERY	-
27	TY21741	2	DRY CHARGED BATTERY	(SUB FOR TY6106) (NO VENT TUBE HOLE)
27	R76477	1	Tie Band	(SUB FOR A49232, THIS APPLICATION) (BAND BATTERY VENT HOSES TOGETHER AT RIGHT SIDE OF BATTERY AND BAND HOSES TO LARGE SUCTION HOSE)
28	T121288	2	Angle	(SUB FOR T79470, THIS APPLICATION)
29	T22571	4	Bolt	(SUB FOR T79471, THIS APPLICATION) (SUB FOR E58231)
30	28H1720	1	Bushing	-
31	19H3065	1	Cap Screw	3/8" X 2"
32	T11234	1	Lock Nut	-
33	24M7296	2	Washer	10.500 X 30 X 2.500 MM

BATTERY (WITH 180-MINUTE RESERVE CAPACITY) [02I14]
