Открытый узел

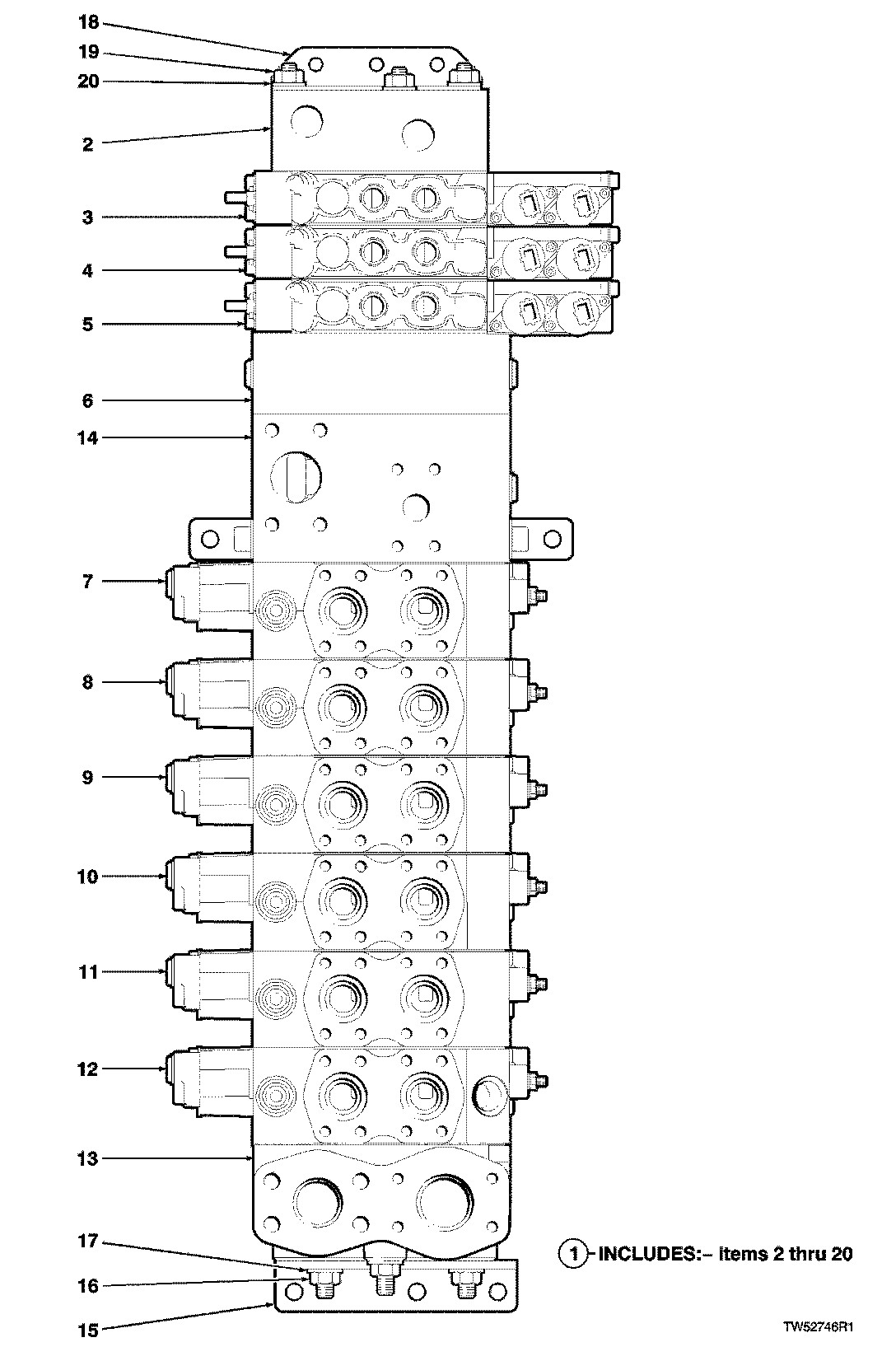

VALVE CONTROL MAIN D2 (3 PUMP) ( 10BA1272 - ) 2452-071/10 [2452-071/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F123102	1	VALVE - 850	-
2	F435874	1	VALVE SECTION - 950 - S/N 009001 & UP	Refer to Page: FELLER BUNCHER\850 UPTO SN 10BA1271 FELLER BUNCHER\850 UPTO SN 10BA1271 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION INLET PLATE END D2 (3 PUMP) ( 987389 - ) 2452-053/10
3	F435875	1	VALVE SECTION - 950 - S/N 009001 & UP	Refer to Page: FELLER BUNCHER\850 UPTO SN 10BA1271 FELLER BUNCHER\850 UPTO SN 10BA1271 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION WRIST D2 (3 PUMP) ( 987389 - ) 2452-054/10
4	F435876	1	VALVE SECTION - UPPER CLAMP	Refer to Page: FELLER BUNCHER\850 UPTO SN 10BA1271 FELLER BUNCHER\850 UPTO SN 10BA1271 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION CLAMPS D2 (3 PUMP) ( 987389 - ) 2452-055/10
5	F435876	1	VALVE SECTION - UPPER CLAMP	Refer to Page: FELLER BUNCHER\850 UPTO SN 10BA1271 FELLER BUNCHER\850 UPTO SN 10BA1271 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION CLAMPS D2 (3 PUMP) ( 987389 - ) 2452-055/10
6	F435877	1	VALVE - ADAPTER-MANIFOLD	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION MANIFOLD ADAPTER D2 (3 PUMP) ( 987389 - 10BA1280) 2452-072/10
7	F434401	1	VALVE SECTION - TILT	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION TILT D2 (3 PUMP) ( 987389 - 10BA1280) 2452-060/10
8	F434400	1	VALVE SECTION - STICK	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION STICK D2 (3 PUMP) ( 987389 - 10BA1280) 2452-062/10
9	F434399	1	VALVE SECTION - 850	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION HOIST D2 (3 PUMP) ( 987389 - 10BA1280) 2452-064/10
10	F434398	1	VALVE SECTION - TRACTION DRIVE R.H	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION TRACK D2 (3 PUMP) ( 987389 - 10BA1280) 2452-066/10
11	F434398	1	VALVE SECTION - TRACTION DRIVE R.H	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION TRACK D2 (3 PUMP) ( 987389 - 10BA1280) 2452-066/10
12	F434396	1	VALVE SECTION - 850	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION INLET D2 (3 PUMP) ( 987389 - 10BA1280) 2452-069/10
13	F434397	1	VALVE SECTION - 850	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION SWING D2 (3 PUMP) ( 987389 - 10BA1280) 2452-068/10
14	F435864	1	VALVE - MID INLET/OUTLET	Refer to Page: FELLER BUNCHER\950 UPTO SN 10BA1299 FELLER BUNCHER\950 UPTO SN 10BA1299 - 850/950 (Timberjack < 2000)\VALVE SECTION\VALVE SECTION MID INLET/ OUTLET D2 (3 PUMP) ( 987389 - 10BA1280) 2452-057/10
15	F433699	1	BRACKET -	-
16	F042664	3	NUT -	-
17	F435917	3	WASHER -	-
18	F435921	1	BRACKET -	-
19	F435919	3	NUT -	-
20	F435920	3	WASHER -	-

VALVE CONTROL MAIN D2 (3 PUMP) ( 10BA1272 - ) 2452-071/10 [2452-071/10]

Нет текстового описания
