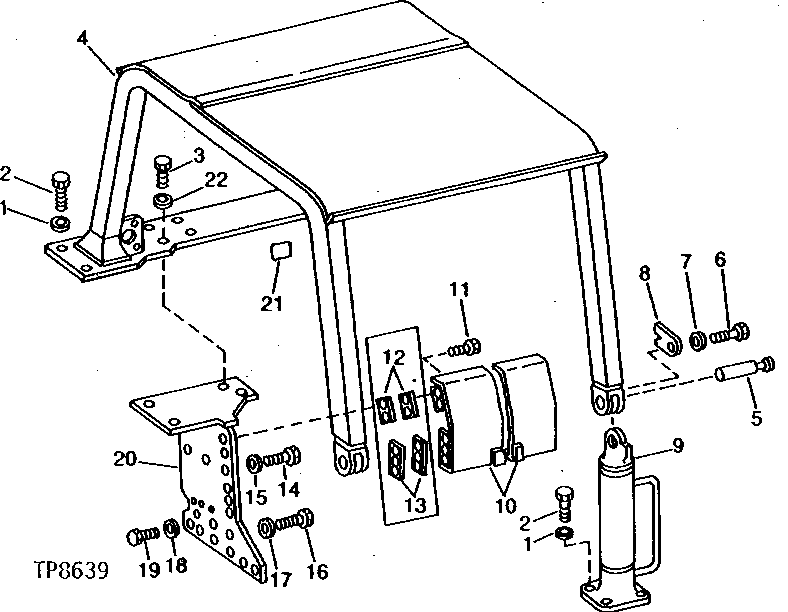

ROLL-OVER PROTECTIVE STRUCTURE (WITHOUT CAB) [03E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78019	4	Washer	(SUB FOR T21397)
1	R78019	12	Washer	(SUB FOR T21397)
2	19H2410	12	CAP SCREW	HS, SAE 8, 3/4" X 3"
3	19H3273	8	CAP SCREW	HS, SAE 8, 3/4" X 3-1/4"
3	19H3027	8	Cap Screw	HS, SAE 8, 3/4" X 3-1/2"
4	AT58749	1	ROLL-GARD	(SUB AT66985)
4	AT139659	1	ROPS	(INCLUDES T104633 AND T146097) (SUB FOR AT66985)
4	T104633	1	LABEL	-
4	T146097	1	Label	(SUB FOR T146097) (SEAT BELT WARNING)
5	T53306	2	PIN	-
6	19H1781	2	CAP SCREW	1/2" X 3-1/2"
7	T20168	2	Washer	-
8	T57132	2	RETAINER	-
9	AT82069	1	ROPS	LOWER LEFT, (SUB FOR AT54820)
9	AT82070	1	ROPS	LOWER RIGHT, (SUB FOR AT54819)
10	AT58750	1	PLATE	(SUB AT74992)
10	AT142357	1	ROPS	(SUB FOR AT74992 AND AT82932)
11	19H2898	10	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
12	T61175	1	STRAP	1.52 MM (.060")
12	T61176	1	STRAP	0.91 MM (.036")
13	T61177	1	STRAP	1.52 MM (.060")
13	T61178	1	STRAP	0.91 MM (.036")
14	19H2431	6	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
15	T10510	6	Washer	(USE IF AVAILABLE)
15	R78019	6	Washer	(SUB FOR T10510)
16	19H1004	6	CAP SCREW	1/2" X 2-1/4"
17	T21242	6	Washer	-
18	T75690	12	Washer	(SUB FOR T30636, THIS APPLICATION)
19	19H3099	12	CAP SCREW	HS, SAE 8, 1" X 3-3/4"
20	AT58751	1	SUPPORT	REAR, R.H. (SUB AT74632)
20	AT72155	1	SUPPORT	REAR, R.H. (SUB AT74632)
20	AT74632	1	ROPS	REAR, R.H.
20	AT58752	1	SUPPORT	REAR, L.H. (NOT ILLUSTRATED)
20	AT72156	1	SUPPORT	REAR, L.H. (NOT ILLUSTRATED) (SUB AT74631)
20	AT74631	1	ROPS	REAR, L.H. (NOT ILLUSTRATED)
21	T43705	1	SAFETY SIGN	-
22	B3627R	8	WASHER	-

ROLL-OVER PROTECTIVE STRUCTURE (WITHOUT CAB) [03E15]
