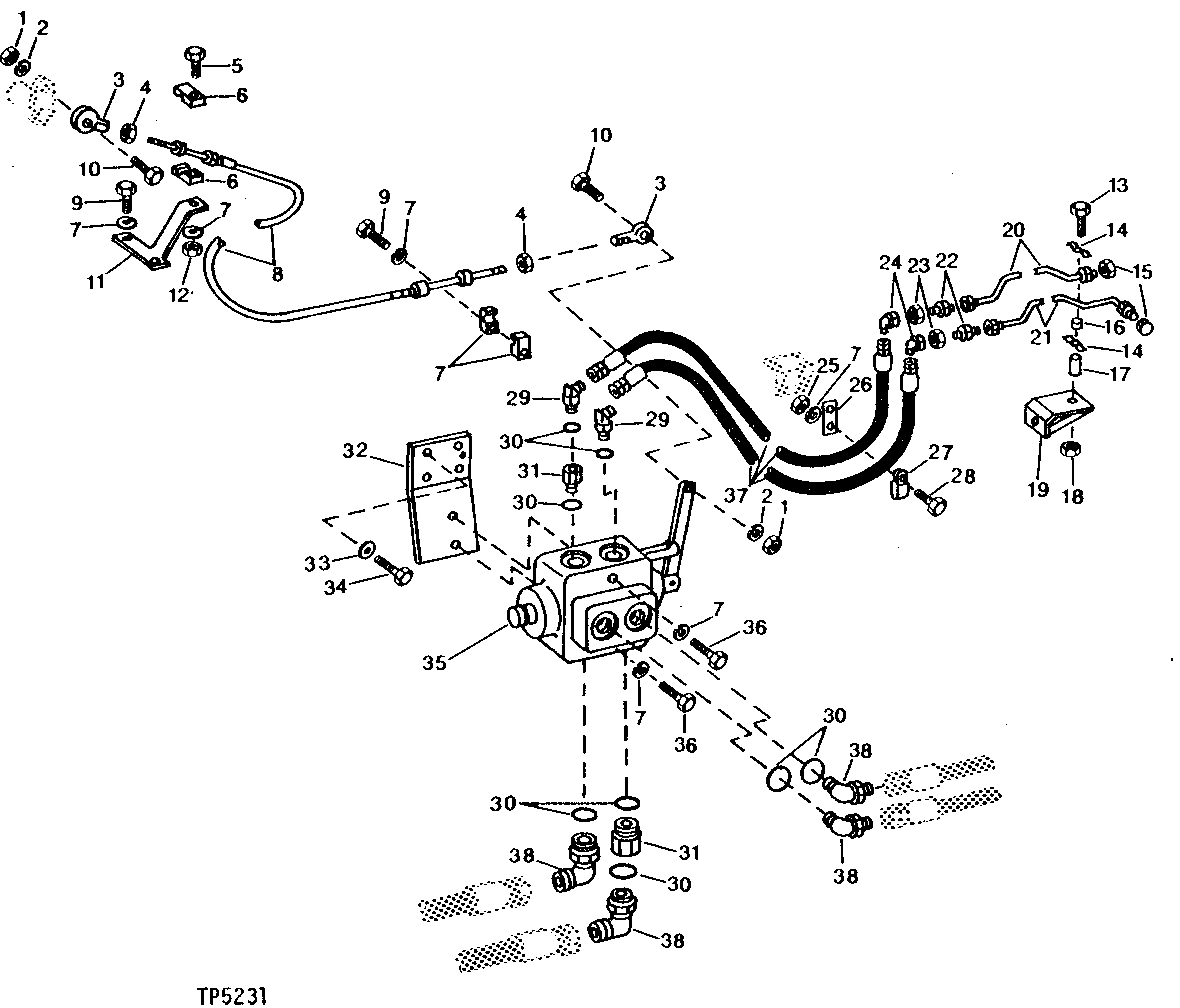

RIPPER HYDRAULICS (TWO SPOOL) (TWO SPOOL) [04F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	2	Nut	5/16"
2	12H303	2	Lock Washer	5/16"
3	AT81077	2	LINK END	(SUB FOR AT52415)
4	14H850	2	NUT	1/4"
5	19H2633	1	Cap Screw	3/8" X 1-1/2"
6	T33483	4	CLAMP	-
7	12H304	5	Lock Washer	3/8"
8	AT113472	1	CABLE	(SUB FOR AT50124)
9	19H3065	2	Cap Screw	3/8" X 2"
10	19H1849	2	Cap Screw	5/16" X 1-1/4"
11	T55542	1	BRACKET	-
12	14H812	1	NUT	3/8"
13	19H2458	1	Cap Screw	3/8" X 3"
14	U13055	2	CLAMP	-
15	T29439	2	Fitting	-
16	28H1878	1	SPACER	0.493" X 0.675" X 7/16"
17	28H2576	1	SPACER	3/8" X 1-1/2"
18	T11234	1	Lock Nut	3/8"
19	AT48525	1	BRACKET	-
20	AT61238	1	TUBE	OUTER, (SUB FOR AT50398)
21	AT61237	1	TUBE	(SUB FOR AT50399) INNER
22	R47876	1	Fitting	-
23	R27390	2	Nut	-
24	AT28379	2	Fitting	90°
25	14H812	1	NUT	3/8"
26	T50037	1	STRAP	-
27	AH77869	1	Clip	-
28	19H3239	1	Cap Screw	3/8" X 1-1/4"
29	AT32331	2	Elbow Fitting	90°
30	U12547	8	O-Ring	(SUB FOR (8) F3171R)
31	T55540	2	Fitting	-
32	T55541	1	BRACKET	-
33	12H301	4	Lock Washer	1/2"
34	19H3472	4	Cap Screw	5/8" X 9-3/4"
35	AT73037	1	SELECTIVE CONTROL VALVE	DOUBLE SELECTOR, (SUB FOR AT52416)
36	19H2732	2	Cap Screw	3/8" X 2-3/4"
37	AT53370	2	HYDRAULIC HOSE - FABRICATE	1-1/16" X 2 045 MM (80-1/2") X 1-1/16"
38	AT52417	4	Elbow Fitting	37° FLARE

RIPPER HYDRAULICS (TWO SPOOL) (TWO SPOOL) [04F19]
