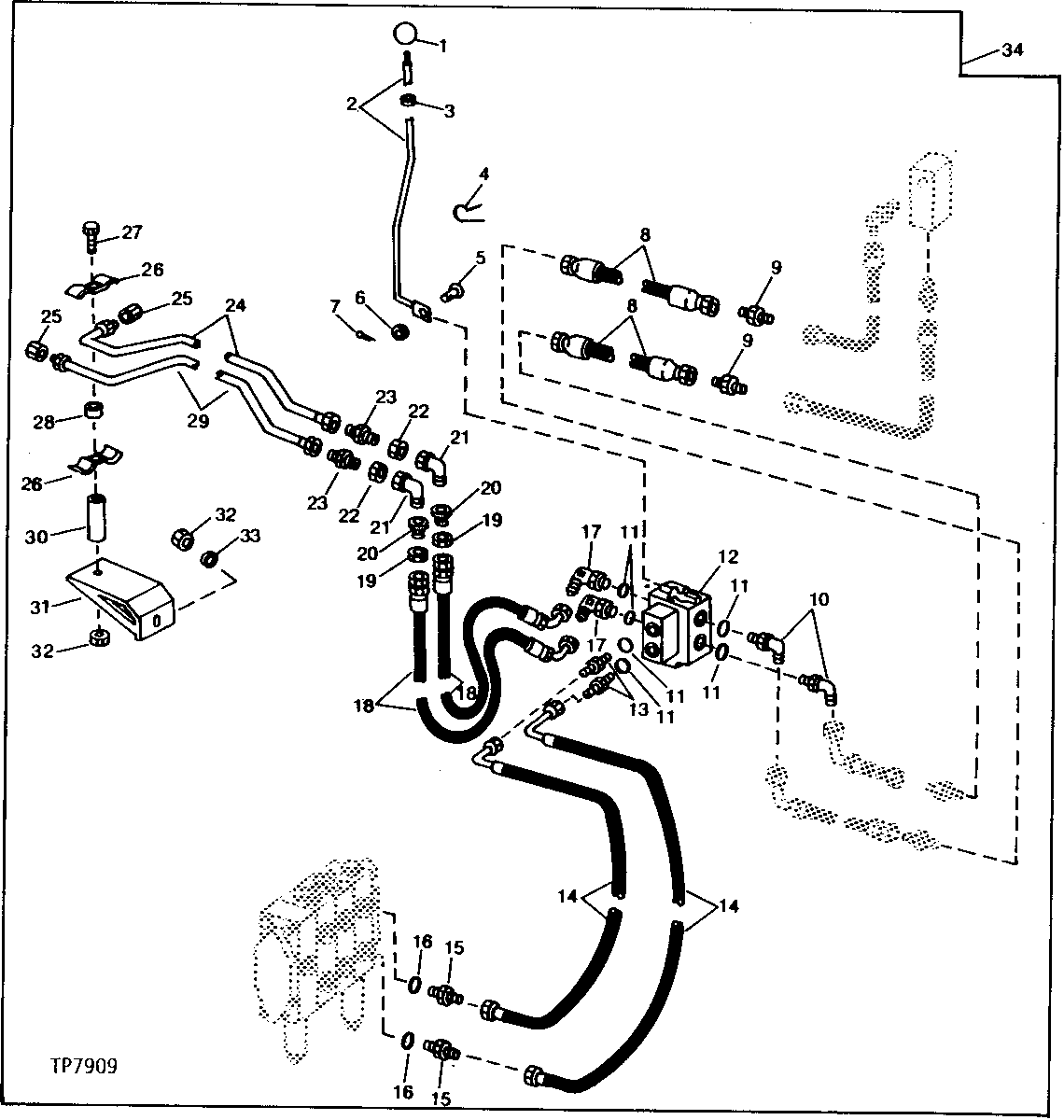

REPLACEMENT RIPPER HYDRAULICS (TWO OR THREE SPOOL) [04F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AP17808	1	Knob	-
2	T71435	1	ROD	-
3	R41439	1	Grommet	-
4	T49589	1	CLAMP	-
5	H26275	1	PIN FASTENER	-
6	24H1287	1	Washer	9/32" X 5/8" X 0.065"
7	11M7081	1	Cotter Pin	2.500 X 20 MM
8	AT42146	2	HYDRAULIC HOSE	3/4" X 351 MM (13-3/4") X 3/4", (TWO-SPOOL ONLY)
9	R34063	2	Fitting	(TWO-SPOOL ONLY)
10	AT52417	2	Elbow Fitting	-
11	U12547	6	O-Ring	(SUB FOR (6) F3171R)
12	AT73037	1	SELECTIVE CONTROL VALVE	DOUBLE SELECTOR, (SUB FOR AT52416)
13	R27267	2	Fitting	-
14	AT68363	2	HYDRAULIC HOSE - FABRICATE	1-1/16" X 1 041 MM (41") X 1-1/16"
15	T27603	2	Fitting	-
16	R29936	2	O-Ring	-
17	AT52417	2	Elbow Fitting	90°
18	AT36594	2	HYDRAULIC HOSE - FABRICATE	3/4" X 1 156 MM (45-1/2") X 3/4"
19	X12BTX-S	2	TUBE NUT	(SUB FOR T47371)
20	T67450	2	FITTING	-
21	AT28379	2	Fitting	90°
22	R27390	2	Nut	-
23	R47876	2	Fitting	-
24	AT61237	1	TUBE	INNER
25	T29439	2	Fitting	-
26	U13055	2	CLAMP	-
27	19H2458	1	Cap Screw	3/8" X 3"
28	28H1878	1	SPACER	0.493" X 0.675" X 7/16"
29	AT61238	1	TUBE	OUTER
30	28H2576	1	SPACER	3/8" X 1-1/2"
31	AT48525	1	BRACKET	-
32	T11234	2	Lock Nut	-
33	24H1305	1	Washer	13/32" X 13/16" X 0.065"
34	AT71373	1	MOUNTING PARTS	SELECTOR VALVE AND RIPPER PLUMBING (AT71373 NO LONGER AVAILABLE)

REPLACEMENT RIPPER HYDRAULICS (TWO OR THREE SPOOL) [04F21]
