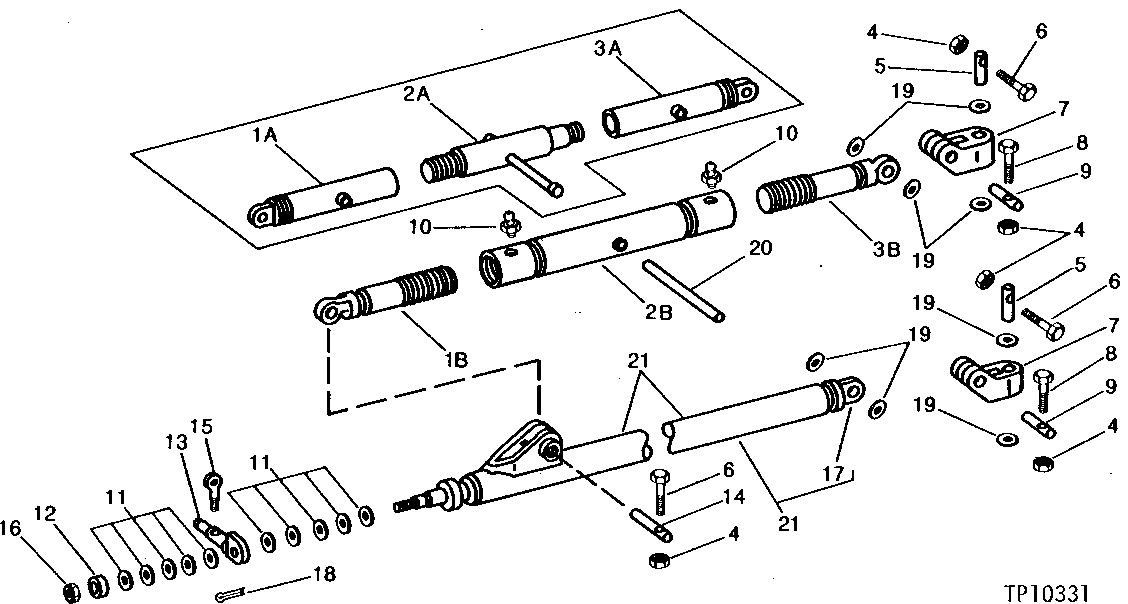

PITCH JACKS AND STRUTS MODEL 6540 (ANGLE DOZER) (SERIAL NO. 705570- ) [04D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	BP12214	10	Lock Nut	1/2"
5	T78846	4	PIN FASTENER	(SUB FOR T58141)
6	19H1868	6	CAP SCREW	1/2" X 3-3/4"
7	T76379	4	CLEVIS	(SUB FOR T58138)
8	19H3586	4	Cap Screw	1/2" X 4-1/4"
9	T78845	4	PIN FASTENER	(SUB FOR T58139)
10	T162396	4	Lubrication Fitting	(SUB FOR JD7798) STRAIGHT, 1/8"
11	T75315	20	Washer	-
12	T75314	2	BUSHING	-
13	T58131	2	PIN	-
14	T78848	2	PIN FASTENER	(SUB FOR T38145)
15	AT55903	2	PIN FASTENER	-
16	U43592	2	Nut	-
17	T76378	2	END	STRUT
18	11H227	1	Cotter Pin	3/8" X 3"
19	H89524	1	Washer	(USE WITH AT74622, AT74623 AND AT74624)
20	T104374	1	PIN	(SUB FOR U42378) (USE WITH AT74622, AT74623 AND AT74624)
21	AT160629	1	SUPPORT	(SUB FOR AT73347) (ALSO ORDER (10) T46180) (L.H. NOT ILLUSTRATED) (INCLUDES AT159923 SHAFT WITH BUSHING)
21	AT159923	1	SHAFT	(NOT ILLUSTRATED) (SHAFT WITH BUSHING)
1A	AT55905	2	JACK	R.H. THREAD, (SUB AT74622, AT74623 AND AT74624)
1B	AT74623	2	SPINDLE	R.H. THREAD
2A	AT56921	2	SHAFT	(SUB AT74622, AT74623 AND AT74624)
2B	AT74622	2	JACK	-
3A	AT55906	2	JACK	L.H. THREAD, (SUB AT74622, AT74623 AND AT74624)
3B	AT74624	2	SPINDLE	L.H. THREAD
