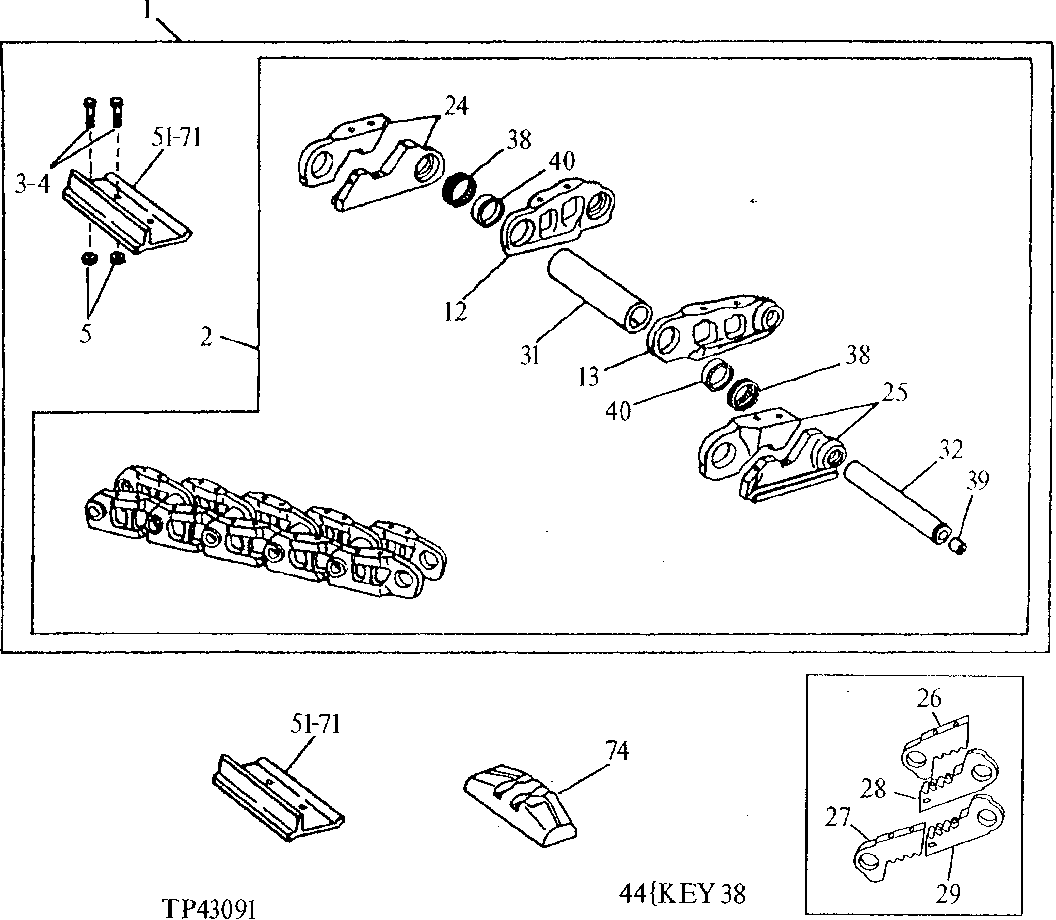

LUBRICATED CHAINS, 3/4, WITH STRUTTED LINKS - STD (37L) AND LGP (43L) [01C08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT148719	2	TRACK ASSEMBLY WITH SHOES	600MM (24") (37L) (INCLUDES SPLIT MASTER LINKS) (USE IF AVAILABLE) (SUB FOR AT83291)
2	AT70785	1	TRACK CHAIN W/O SHOES	(37L) (INCLUDES SPLIT MASTER LINKS) (USE IF AVAILABLE)
2	AT70807	1	TRACK CHAIN W/O SHOES	(43L) (PIN AND BUSHING MASTERLINKS) (USE IF AVAILABLE)
3	T51523	1	Bolt	QUANTITY IS 144 OR 168
4	T73593	4	MASTER TRACK BOLT	-
4	T77085	4	MASTER TRACK BOLT	(FOR SELF CLEANING SHOE)
5	T51524	1	Nut	QUANTITY IS 144 OR 168
12	T67654	1	STRUTTED LINK-LH	QUANTITY IS 36 OR 42
13	T67653	1	STRUTTED LINK-RH	QUANTITY IS 36 OR 42
24	-	1	Part 10	(ALTERNATE) ( AT132895 NO LONGER AVAILABLE) (SUB AT167996)
25	-	1	Part 11	(ALTERNATE) ( AT132894 NO LONGER AVAILABLE) (SUB AT167994)
26	T73591	1	MASTER HALF LINK-LH-BSH END	(USE IF AVAILABLE) (SUB AT167996) (ALSO ORDER AT167994 FIRST TIME REPLACEMENT)
27	T73589	1	MASTER HALF LINK-RH-BSH END	(USE IF AVAILABLE) (SUB AT167994) (ALSO ORDER AT167996 FIRST TIME REPLACEMENT)
28	T73590	1	MASTER HALF LINK-LH-PIN END	(USE IF AVAILABLE) (SUB AT167996) (ALSO ORDER AT167994 FIRST TIME REPLACEMENT)
29	T73588	1	MASTER HALF LINK-RH-PIN END	(USE IF AVAILABLE) (SUB AT167994) (ALSO ORDER AT167996 FIRST TIME REPLACEMENT)
31	T73581	1	BUSHING	QUANTITY IS 37 OR 43
32	T73583	37	Track Pin	-
32	T81949	43	TRACK PIN	-
38	AT112901	1	Seal	QUANTITY IS 37 OR 43 (CONTAINS 2 PCS) (SUB FOR AT70789)
39	T106913	1	PLUG	QUANTITY IS 37 OR 43, (SUB FOR T74064) (SUB FOR T73586, THIS APPLICATION)
40	T73587	1	Thrust Ring	QUANTITY IS 74 OR 86
44	AT173654	1	SEAL KIT	TRACK (CONTAINS 80 PCS) (FOR 37L CHAIN, ALSO ORDER (1) AT112901; FOR 43L CHAIN, ALSO ORDER (7) AT112901) (SUB FOR AT124012)
51	T51535	36	SINGLE BAR SHOE	500MM (20")
51	T51536	36	SINGLE BAR SHOE	560MM (22")
51	T51537	36	SINGLE BAR SHOE	600MM (24")
51	T73600	42	SINGLE BAR SHOE	965MM (38")
71	-	1	Part 27	500MM (20") (SUB FOR T73594)
71	T73595	1	MASTER SINGLE BAR SHOE	560MM (22")
71	T73596	1	MASTER SINGLE BAR SHOE	600MM (24")
71	T73601	1	MASTER SINGLE BAR SHOE	965MM (38")
74	T76957	42	SELF CLEANING SHOE	965MM (38")
74	T76958	1	SELF CLEANING SHOE	965MM (38") MASTER

LUBRICATED CHAINS, 3/4, WITH STRUTTED LINKS - STD (37L) AND LGP (43L) [01C08]
