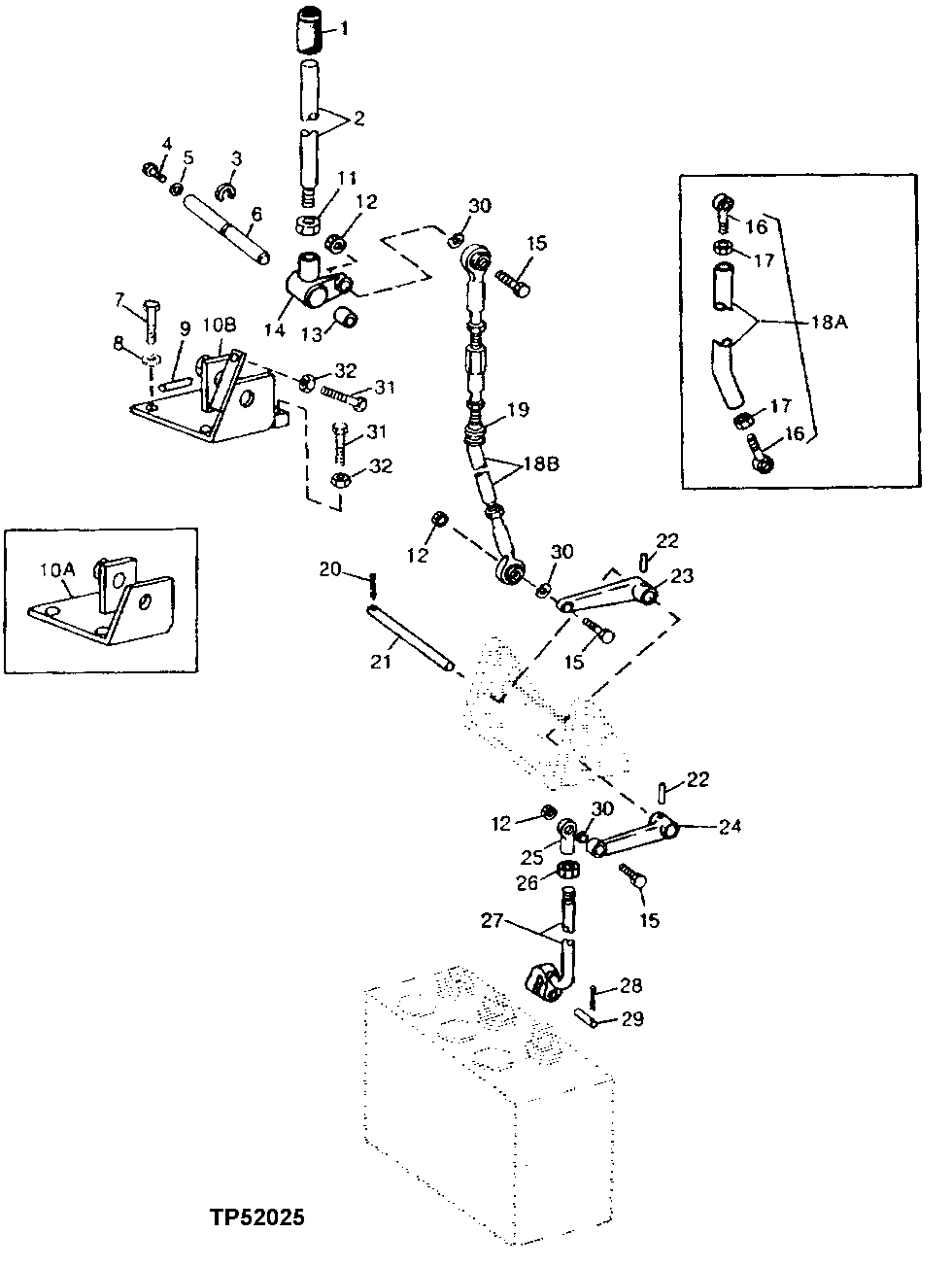

AUXILIARY CONTROL LEVER (WITH CAB) [04B22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(TO HOLD GRIP ON AUXILIARY LEVER)
1	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
2	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
3	R27434	1	Snap Ring	-
4	19H2284	1	Cap Screw	3/8" X 7/8"
5	12H304	1	Lock Washer	3/8"
6	T50789	1	PIN FASTENER	-
7	19H2676	3	Cap Screw	HS, SAE 8, 3/8" X 1", (SUB FOR R53663)
8	12H304	3	Lock Washer	3/8", (SUB FOR R53668)
9	34H314	1	Spring Pin	1/4" X 1-1/4"
11	14H821	1	Nut	5/8"
12	T16464	3	Lock Nut	-
13	M1640T	1	BUSHING	-
14	T50788	1	LEVER	(SUB FOR AT49356)
15	19H3552	3	Cap Screw	5/16" X 1-1/2"
16	AT46594	2	LINK END	-
17	14H882	2	Nut	5/16"
19	R45537	1	Grommet	-
20	11M7083	1	Cotter Pin	3.200 X 50 MM
21	T51985	1	PIN FASTENER	-
22	25H1180	1	GROOVE PIN	5/16" X 1-3/8"
23	T51987	1	LEVER	-
24	T52008	1	LEVER	(SUB FOR T51986, THIS APPLICATION)
25	AT49297	1	Link End	-
26	14H463	1	NUT	5/16"
27	T71434	1	YOKE	(SUB FOR AT62559 AND AT68362)
28	11M7081	1	Cotter Pin	2.500 X 20 MM
29	P46404	1	Pin Fastener	-
30	12H303	3	Lock Washer	5/16"
31	19H1906	2	Cap Screw	5/16" X 1-1/2"
32	14H785	2	Nut	5/16"
10A	-	1	Part 11	(AT49355 - NO LONGER AVAILABLE) (SUB AT113017, (2) 14H785 AND (2) 19H3296)
10B	AT113017	1	BRACKET	(SUB FOR AT49355)
18A	AT50309	1	ROD	(SUB AT65884)
18B	AT65884	1	ROD	-
