Открытый узел

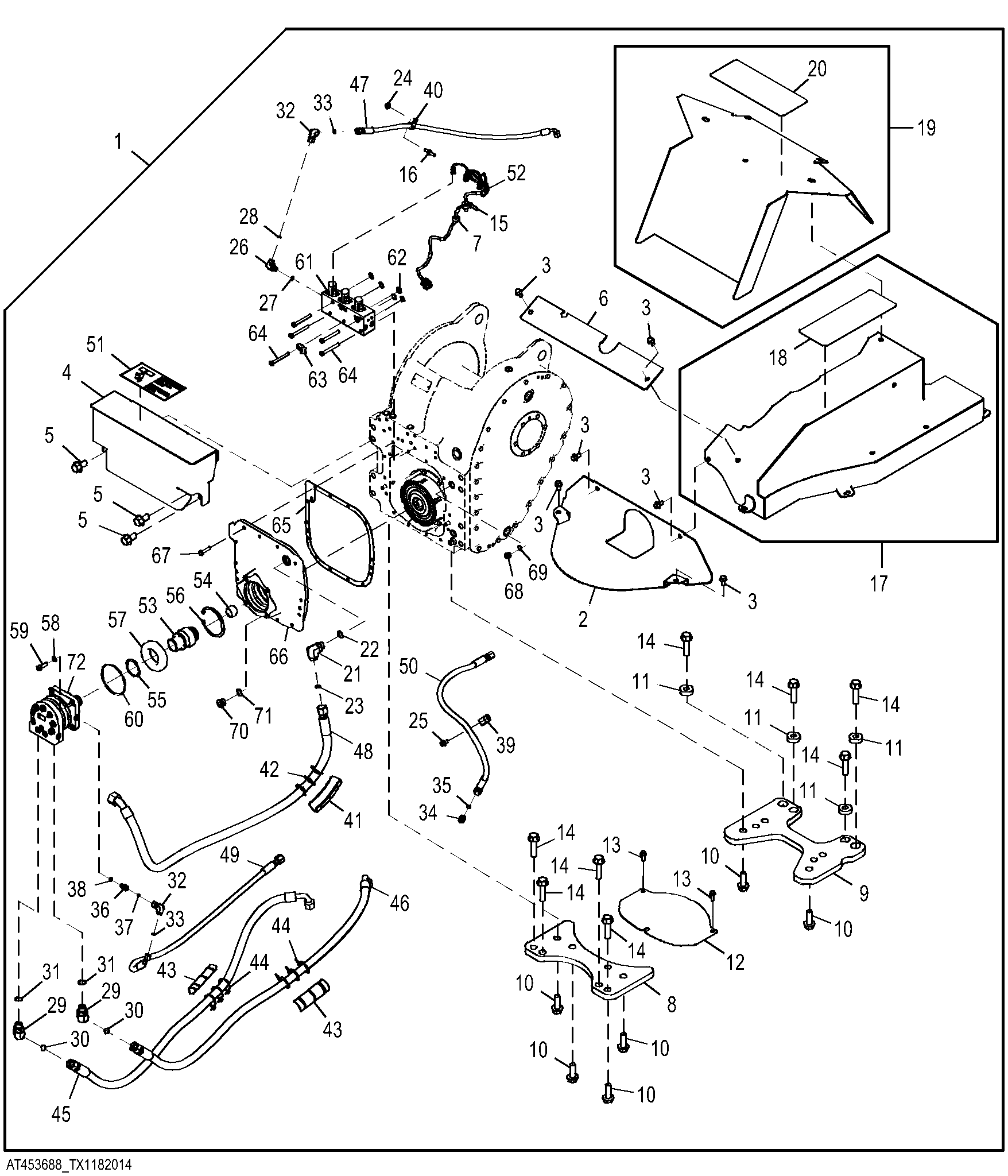

Hydraulic to Mechanical Winch Conversion Kit, 4000 Winch ( - 677800)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT453688	1	Winch Kit	Whole Goods
2	AT444494	1	Guard	Winch Motor
3	19M7788	6	Screw	M12 X 25
4	AT469237	1	Guard	Winch Valve
5	19M8709	3	Screw	M20 X 40
6	T329275	1	Plate	-
7	R70350	1	Grommet	-
8	T348580	1	Plate	Front, High Strength, ORDER T394253
8	T394253	1	Plate	-
9	T348579	1	Plate	Rear, ORDER T394255
9	T394255	1	Plate	-
10	19M7851	6	Screw	M20 X 60
11	T298203	4	Spacer	-
12	T348596	1	Plate	Debris Cover
13	19M7786	2	Screw	M10 X 30
14	19M7831	8	Screw	M20 X 80
15	H224073	1	Tie Band	-
16	T161803	1	Stud	-
17	AT437478	1	Guard	Fuel Tank
18	H21259	1	Mat	-
19	AT437479	1	Guard	Slip Protection
20	H21259	1	Mat	-
21	38H1007	1	Elbow Fitting	-
22	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
23	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	14M7296	1	Flange Nut	M10
25	19M7784	1	Screw	M10 X 20
26	38H1004	1	Elbow Fitting	-
27	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
28	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
29	38H1048	1	Elbow Fitting	-
30	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
31	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
32	38H1094	1	Elbow Fitting	-
33	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
34	38H1147	1	Fitting Plug	-
35	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
36	38H1160	1	Adapter Fitting	-
37	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
38	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
39	T24959	1	Clamp	-
40	T76719	1	Clamp	-
41	AT313439	1	Hose Guard	-
42	R44302	3	Tie Band	-
43	AT313439	2	Hose Guard	-
44	R44302	3	Tie Band	-
45	AT404963	1	Hydraulic Hose	Fabricate
46	AT404963	1	Hydraulic Hose	Fabricate
47	AT413444	1	Hydraulic Hose	Fabricate
48	AT413447	1	Hydraulic Hose	Fabricate
49	AT431027	1	Hydraulic Hose	Fabricate
50	AT444471	1	Hydraulic Hose	Fabricate
51	T361108	1	Safety Sign	Winch Hoist Warning
52	AT438022	1	Wiring Harness	Winch Harness
53	T304442	1	Shaft	-
54	JD8865	1	Needle Bearing	-
55	R26246	1	Snap Ring	-
56	40M7110	1	Snap Ring	-
57	AT139681	1	Ball Bearing	-
58	M3110T	4	Washer	-
59	19M8448	4	Screw	M12 X 35
60	F37030250	1	O-Ring	126.594 X 3.531 mm (4-63/64" X 0.139")
61	AT408334	1	Control Valve	-
61	AT431990	3	Solenoid Valve	-
61	KV26542	1	Seal Kit	-
61	T204128	6	Screw	-
62	U46731	5	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
63	N380408	1	Clamp	-
64	19M8183	5	Cap Screw	M10 X 90
65	T84826	1	Gasket	-
66	T308420	1	Housing	-
67	19M7572	13	Cap Screw	M10 X 45
68	64H1018	1	Drain Plug	-
69	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
70	64H1020	1	Drain Plug	-
71	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
72	AT452328	1	Hydraulic Motor	ORDER AT473710
72	AT473710	1	Hydraulic Motor	-
72	AT452477	1	Seal Kit	Not Illustrated

Hydraulic to Mechanical Winch Conversion Kit, 4000 Winch ( - 677800)
