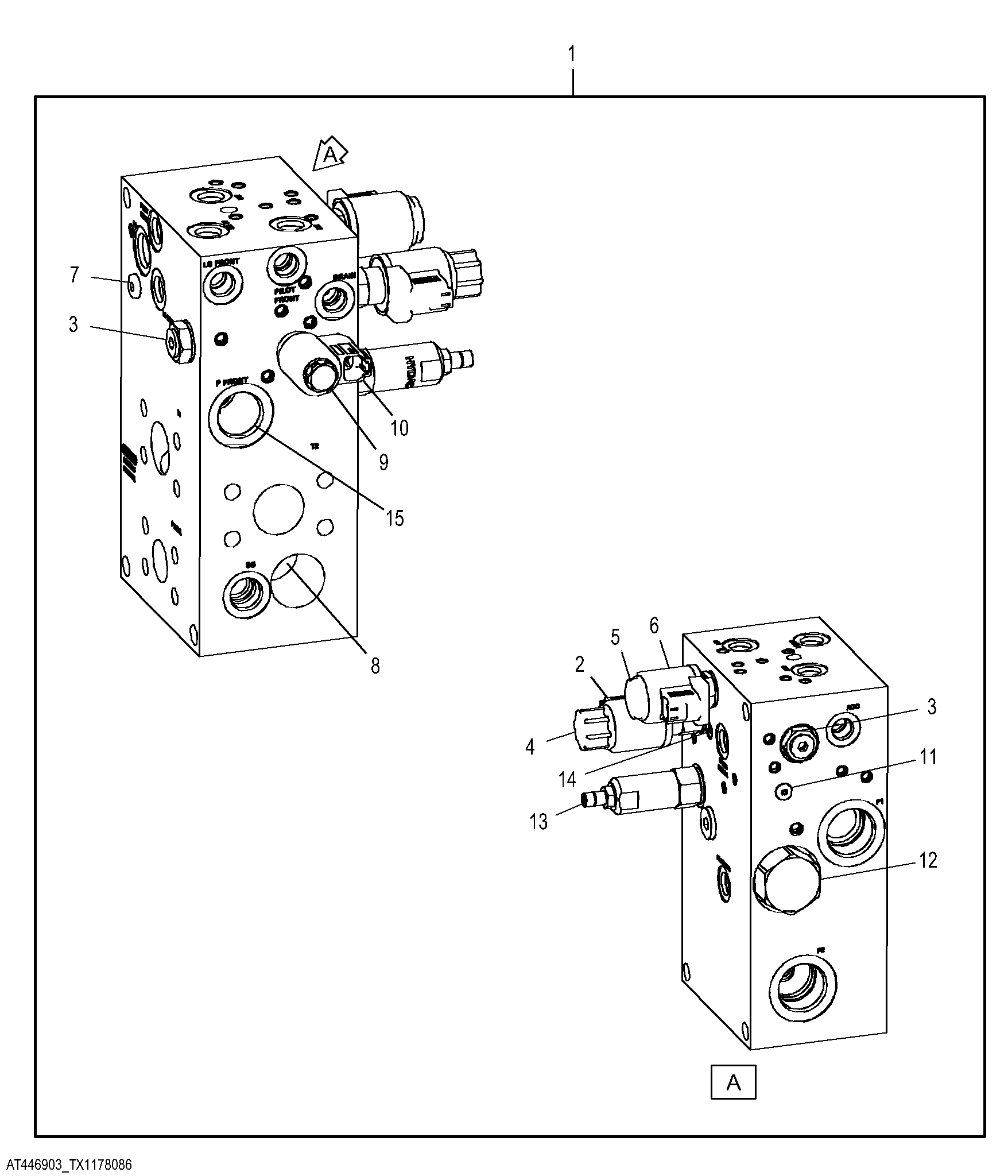

Hydraulic Pump Manifold Components (678288 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT498421	1	Manifold	SUB FOR AT446903
2	AT450008	1	Solenoid Valve Coil	Hydraulic Power Control Solenoid
3	AT498424	2	Check Valve	SUB FOR AA79639
3	AT498425	1	Seal Kit	SUB FOR AXE25429 USE WITH AT498424
4	AT450009	1	Elec-Hyd Proportional Valve	Pressure Reducing Valve, INCLUDES AKK11208 AND AT450016
4	AKK11208	1	Seal Kit	-
4	AT450016	1	Nut Kit	-
5	AT498423	1	Solenoid Valve	Load Sense Select Solenoid, SUB FOR AT450010
5	AT498425	1	Seal Kit	USE WITH AT498423 SUB FOR AXE25429
5	AT450459	1	Nut Kit	-
6	AT368313	1	Solenoid Valve Coil	Load Sense Select Solenoid
7	AN404314	1	Check Valve	-
7	WZW14393	1	Seal Kit	-
8	R56466	1	O-Ring	-
8	AT450011	1	Check Valve	-
9	AT450012	1	Solenoid Valve	Directional Solenoid Valve, INCLUDES AT450460 AND AXE27414
9	AT450460	1	Nut Kit	-
9	AXE27414	1	Seal Kit	-
10	AT447958	1	Solenoid Valve Coil	24 V, Pump Mode Select Solenoid
11	KK13116	1	Orifice	D= 0.6 mm
12	AT498422	1	Hydraulic Pressure Valve	Pressure Compensator, SUB FOR AT450013; INCLUDES AT453238
12	AT453238	1	Seal Kit	-
13	AT450015	1	Hydraulic Pressure Valve	Pressure Reducing Valve, INCLUDES AKK11193
13	AKK11193	1	Seal Kit	-
14	T358628	1	Orifice	D = 1.3 mm
15	38H1163	1	Adapter Fitting	-
15	T77858	1	O-Ring	-
15	U12547	1	O-Ring	-
15	AT458014	1	Check Valve	-

Hydraulic Pump Manifold Components (678288 - )
