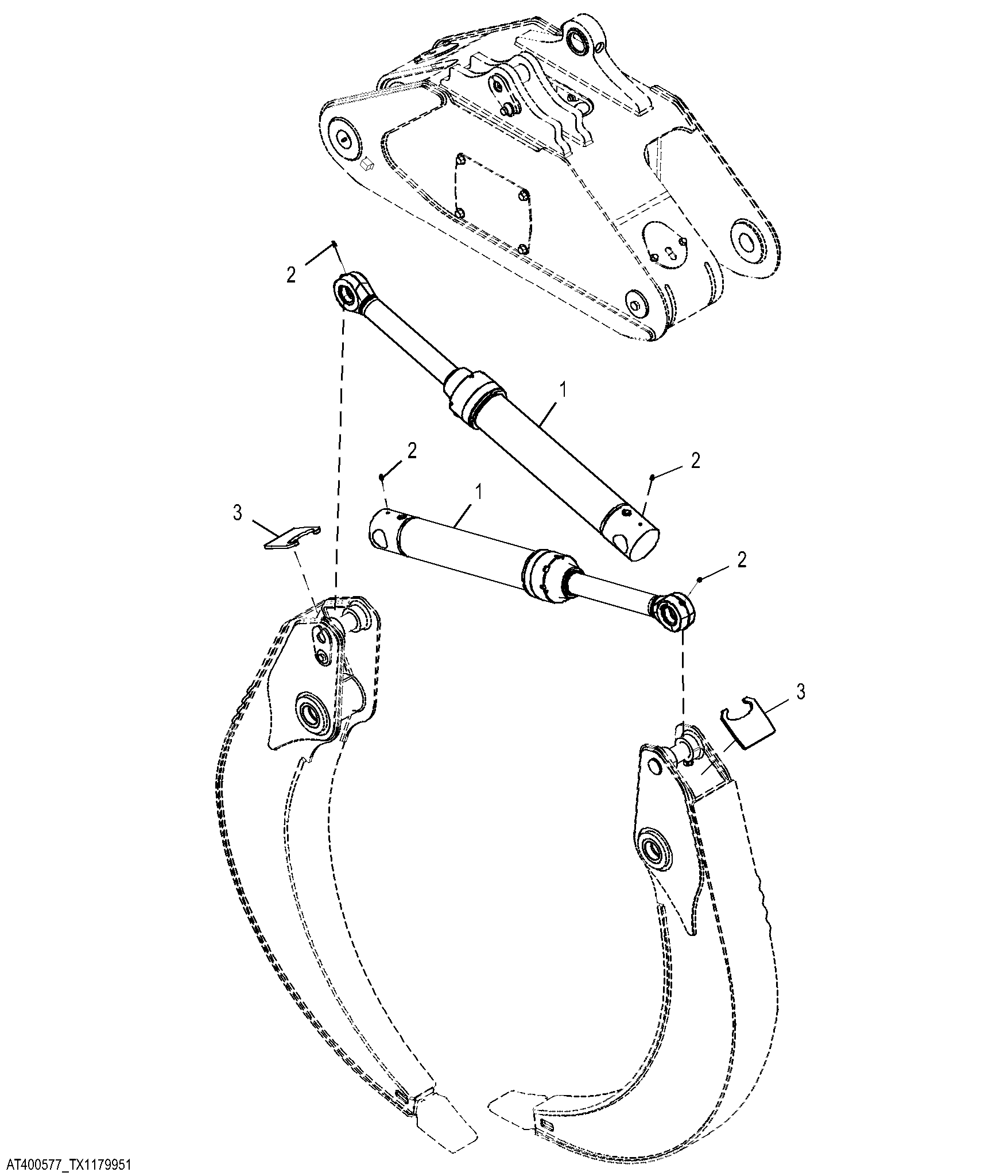

Grapple Cylinders - 19.1 sq ft and 22.3 sq ft Grapples

Grapple Cylinders - 19.1 sq ft and 22.3 sq ft Grapples
Grapple Cylinders - 19.1 sq ft and 22.3 sq ft Grapples
Нет текстового описания
Открытый узел
Grapple Cylinders - 19.1 sq ft and 22.3 sq ft Grapples

Нет текстового описания
| № на схеме | Серийный номер | Кол-во | Название | Описание | |
|---|---|---|---|---|---|
| 1 | AHC16308 | 2 | Hydraulic Cylinder | Components Listed on Seperate Page | |
| 1 | AHC18121 | 2 | Hydraulic Cylinder | - | |
| 2 | JD7759 | 4 | Lubrication Fitting | - | |
| 3 | T398880 | 2 | Gusset | - |
