Two Single Axis Lever from Multi Axis Lever Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11250	1	Lever Kit	WHOLE GOODS
2	AT482049	1	Control	Two Lever Stackable Assembly with Mounting Plate
3	T398438	1	Bracket	-
4	AT467419	1	Control	Analog Lever, Boom Control
5	AT467422	1	Control	Analog Lever, Bucket with Kick down Control
6	21M7665	8	Screw	M6 X 20
7	T406564	4	Bolt	-
8	T379758	1	Cover	RH Stackable Armrest Top
9	T379759	1	Cover	RH Stackable Armrest Bottom
10	T414962X00	1	Label	Fingertip Control
11	R44302	4	Tie Band	-
12	AT484553	1	Cab Wiring Harness	Stackable Control RH Arm Rest, Components on Separate Page
13	AT473826	2	Bracket	Arm Rest Connector Bracket
14	19M8869	4	Screw	M4 X 8
15	57M10650	4	Clip Kit	-
16	19M9836	2	Screw	M8 X 20
17	H224073	2	Tie Band	-
18	AT469448	1	Switch	Motion Control FNR Lever, INCLUDES AT412432, AT412433 AND AT395263
18	AT412432	1	Wiring Harness	-
18	AT412433	1	Wiring Harness	-
18	AT395263	1	Wiring Harness	-
19	19M8576	2	Screw	M5 X 30
20	T402420	1	Cover	-
21	R241171	2	Screw	-
22	R44302	1	Tie Band	-
23	T405059X00	1	Label	FNR No Text
24	T405058X00	1	Label	Turn Signals

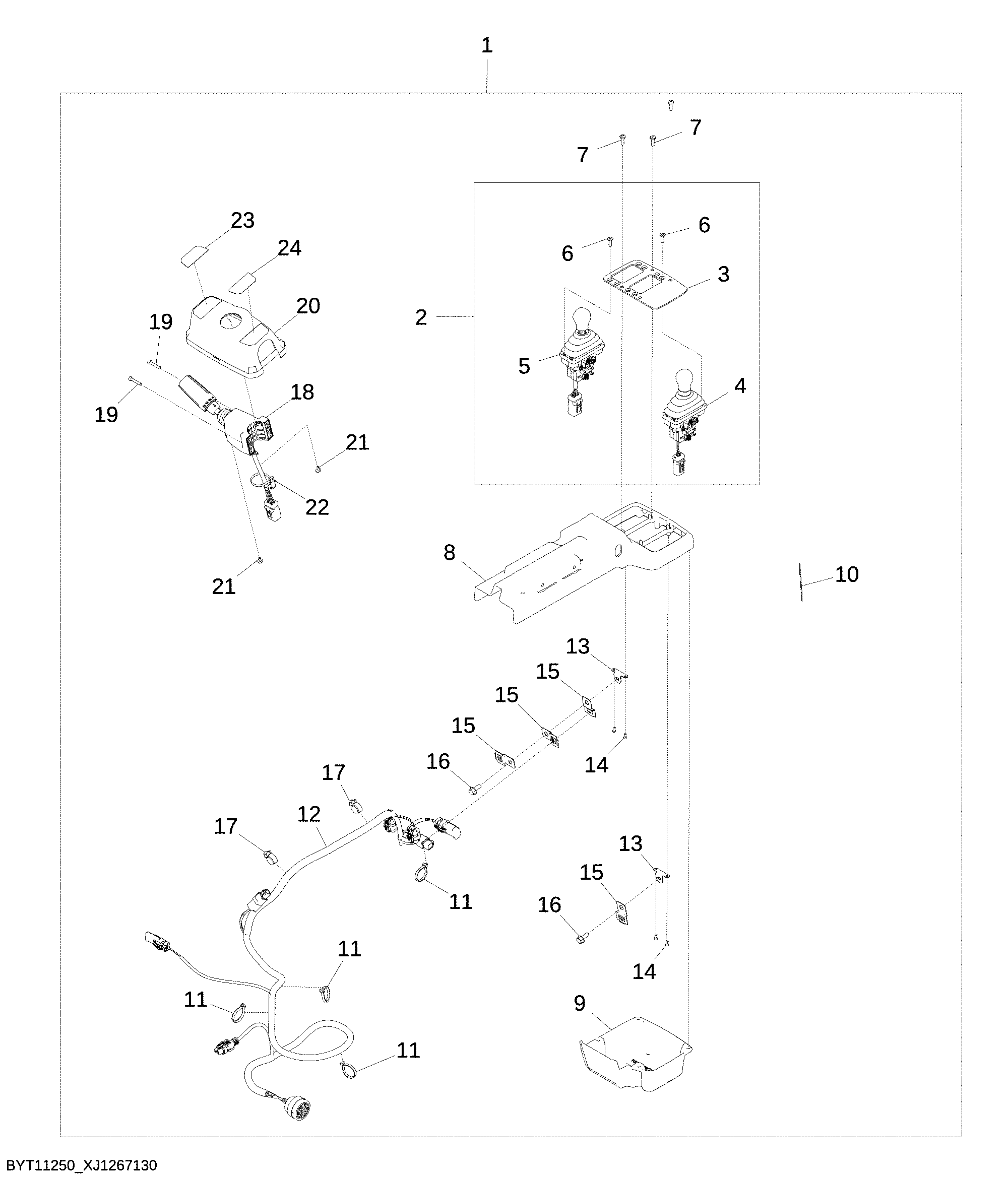

Two Single Axis Lever from Multi Axis Lever Kit

Нет текстового описания
