Открытый узел

Two Function Single Axis Lever Controller

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

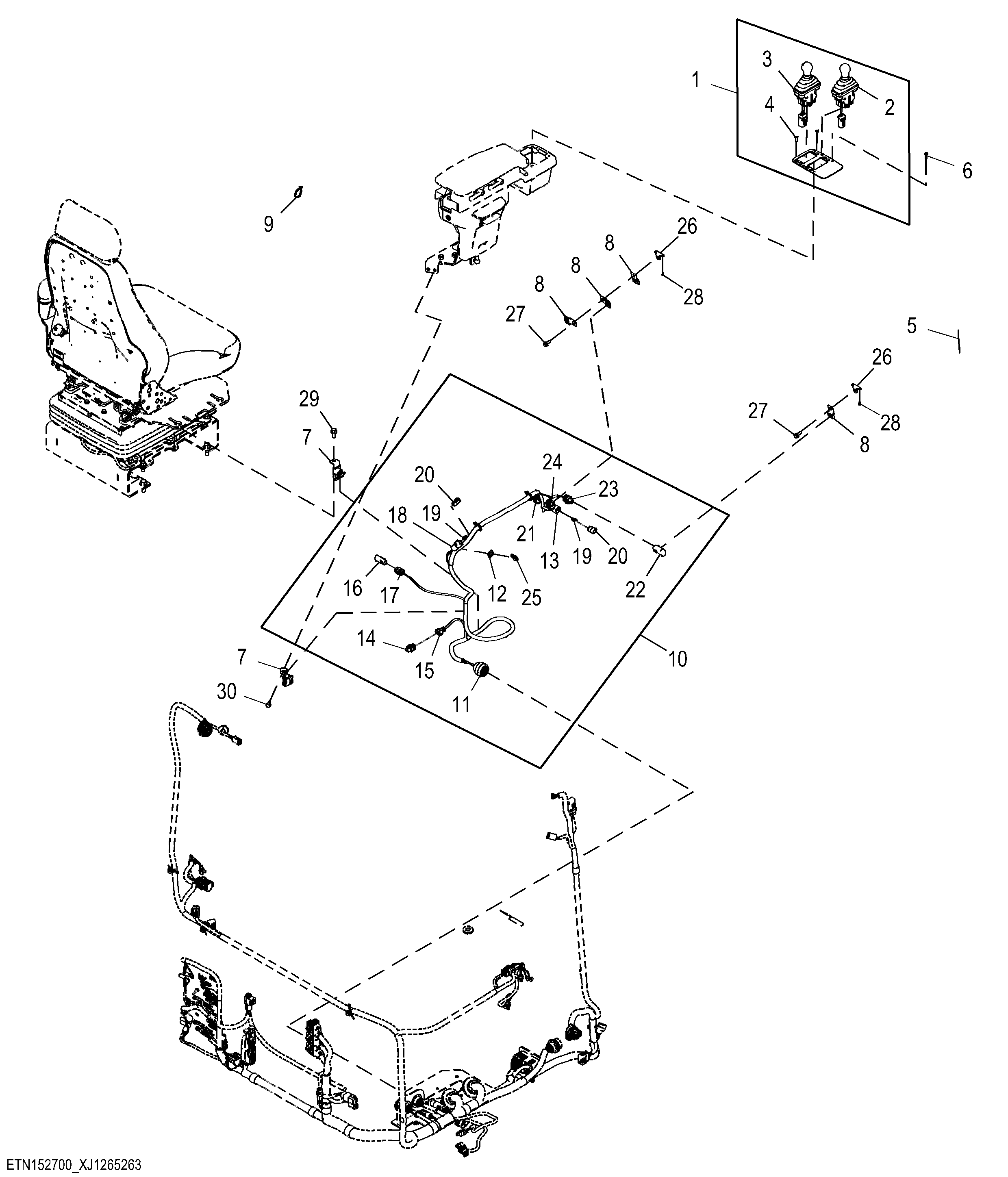

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT482049	1	Control	Two Lever Stackable Assembly
2	AT467419	1	Control	Analog Lever, Boom Control
3	AT467422	1	Control	-
4	21M7665	8	Screw	M6 X 20
5	T414962X00	1	Label	Fingertip Controls No Text
6	T406564	4	Bolt	-
7	T404448	2	Clamp	-
8	57M10650	4	Clip Kit	-
9	R44302	3	Tie Band	-
10	AT484553	1	Cab Wiring Harness	Stackable Controls RH Arm Rest Wiring Harness
11	57M7542	2	Elec. Connector Terminal	-
11	R78069	8	Elec. Connector Cavity Plug	-
11	R78065	20	Elec. Connector Terminal	-
11	57M7751	1	Elec. Connector Housing	X12B, Joystick Control To Load Centre Inline
12	T380249	1	Elec. Connector Accessory	-
13	57M10265	1	Elec.Connect Locking Device	S26, Turn Signal Switch
13	57M11214	6	Elec. Connector Terminal	-
13	57M7771	6	Elec. Connector Terminal	-
13	57M9132	1	Elec.Connect Locking Device	-
14	57M9734	1	Elec. Connector Housing	A39, Seat
14	57M7542	2	Elec. Connector Terminal	-
14	R78065	1	Elec. Connector Terminal	-
15	57M9838	1	Elec. Connector Accessory	-
16	57M11333	1	Elec. Connector Accessory	-
17	57M9772	1	Elec. Connector Housing	S31, Seat Belt Indicator Switch
17	R78065	2	Elec. Connector Terminal	-
18	57M10265	1	Elec.Connect Locking Device	S18, Counter Switch
18	57M11214	6	Elec. Connector Terminal	-
18	57M7771	6	Elec. Connector Terminal	-
18	57M9132	1	Elec.Connect Locking Device	-
19	57M10346	2	Elec. Connector Housing	-
20	57M9130	2	Electrical Connector Assy	-
21	57M9792	1	Elec. Connector Housing	A36, Electrohydraulic (EH) Bucket Lever Assembly
21	57M8263	8	Elec. Connector Terminal	-
22	57M11335	1	Elec. Connector Accessory	-
23	57M9817	1	Elec. Connector Housing	A37, Electrohydraulic (EH) Joystic Auxialliary Assembly
23	57M8263	4	Elec. Connector Terminal	-
24	57M9817	1	Elec. Connector Housing	A35, Electrohydraulic (EH) Boom Lever Assembly, Multiple Lever
24	57M8263	4	Elec. Connector Terminal	-
25	R44302	1	Tie Band	-
26	AT473826	2	Bracket	-
27	19M9836	2	Screw	M8 X 20
28	19M8869	4	Screw	M4 X 8
29	19M7785	1	Screw	M10 X 25
30	19M7865	1	Screw	M8 X 16

Two Function Single Axis Lever Controller

Нет текстового описания
