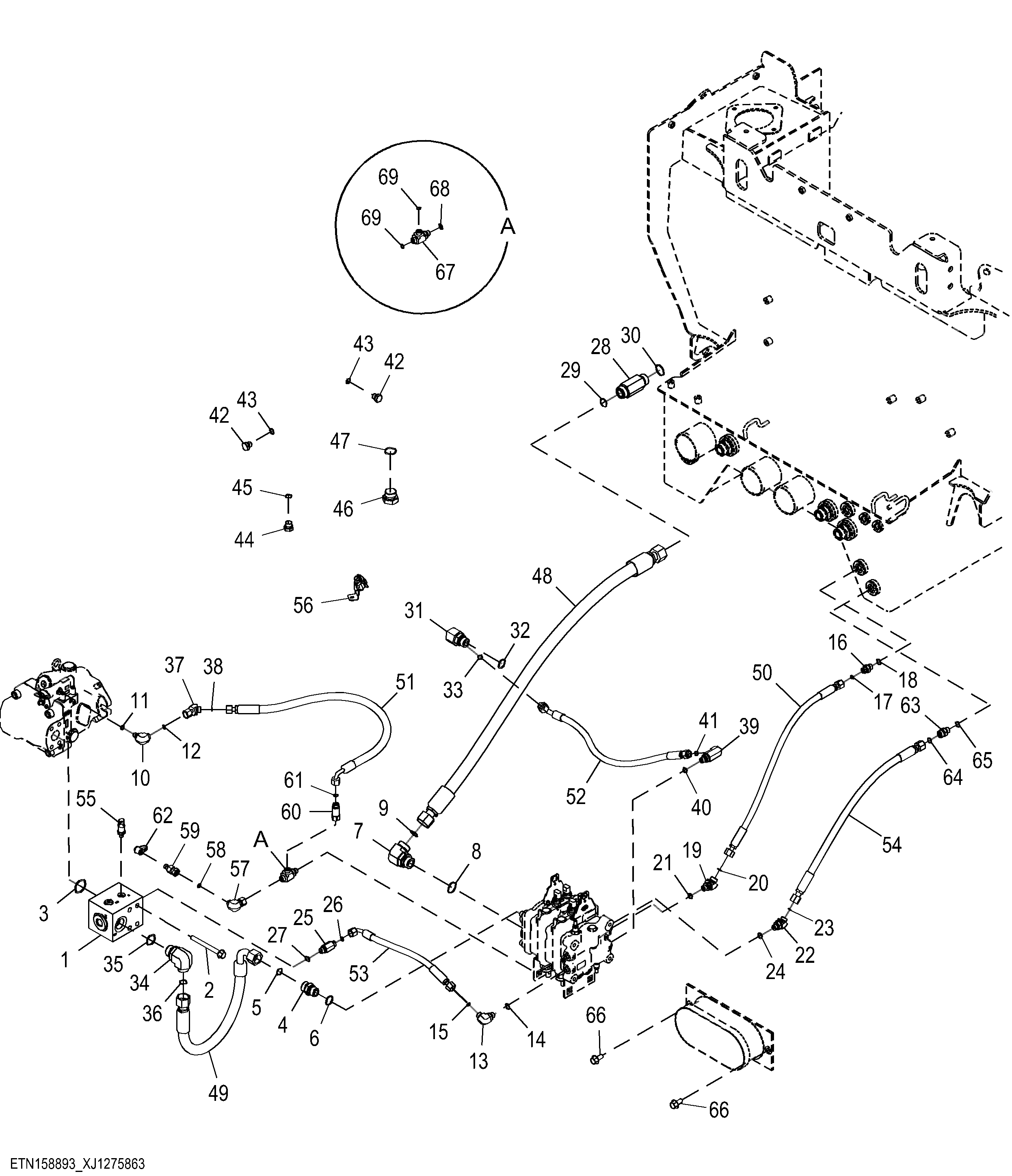

Steering System Hoses without Secondary Steering ( 2 of 2 )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7049	1	O-Ring	38.600 X 2.900 mm
1	AT487595	1	Valve	INCLUDES 51M7049, 64M1025, 51M7042, 64M1018, 51M7043, 64M1019
1	64M1019	1	Drain Plug	-
1	51M7043	1	O-Ring	15.300 X 2.200 mm
1	51M7042	1	O-Ring	13.300 X 2.200 mm
1	64M1018	1	Drain Plug	-
1	64M1025	1	Drain Plug	-
2	19M7821	4	Screw	M12 X 120
3	T78393	1	O-Ring	-
4	38H5005	1	Adapter Fitting	-
5	T77858	1	O-Ring	-
6	51M7047	1	O-Ring	23.600 X 2.900 mm
7	38H5020	1	Elbow Fitting	-
8	51M7048	1	O-Ring	29.600 X 2.900 mm
9	T76938	1	O-Ring	-
10	38H5022	1	Elbow Fitting	-
11	51M7040	1	O-Ring	9.300 X 2.200 mm
12	T77613	1	O-Ring	-
13	38H5035	1	Elbow Fitting	-
14	51M7042	1	O-Ring	13.300 X 2.200 mm
15	T77613	1	O-Ring	-
16	38H5037	1	Adapter Fitting	-
17	T77613	1	O-Ring	-
18	51M7042	1	O-Ring	13.300 X 2.200 mm
19	38H5467	1	Adapter Fitting	-
20	T77857	1	O-Ring	-
21	51M7042	1	O-Ring	13.300 X 2.200 mm
22	38H5154	1	Elbow Fitting	-
23	T77613	1	O-Ring	-
24	51M7042	1	O-Ring	13.300 X 2.200 mm
25	38H5178	1	Adapter Fitting	-
26	T77613	1	O-Ring	-
27	51M7042	1	O-Ring	13.300 X 2.200 mm
28	38H5203	1	Adapter Fitting	-
29	T76938	1	O-Ring	-
30	51M7048	1	O-Ring	29.600 X 2.900 mm
31	38H5245	1	Elbow Fitting	-
32	51M7047	1	O-Ring	23.600 X 2.900 mm
33	T77857	1	O-Ring	-
34	38H5264	1	Adapter Fitting	-
35	51M7048	1	O-Ring	29.600 X 2.900 mm
36	T77858	1	O-Ring	-
37	38H5437	1	Adapter Fitting	-
38	T77613	1	O-Ring	-
39	38H5469	1	Adapter Fitting	-
40	51M7042	1	O-Ring	13.300 X 2.200 mm
41	T77613	1	O-Ring	-
42	64M1004	2	Drain Plug	-
43	51M7042	2	O-Ring	13.300 X 2.200 mm
44	64M1005	1	Drain Plug	-
45	51M7043	1	O-Ring	15.300 X 2.200 mm
46	64M1010	1	Drain Plug	-
47	51M7048	1	O-Ring	29.600 X 2.900 mm
48	AT468467	1	Hydraulic Hose	-
49	AT469119	1	Hydraulic Hose	-
50	AT469242	1	Hydraulic Hose	-
51	AT469249	1	Hydraulic Hose	-
52	AT469799	1	Hydraulic Hose	-
53	AT471423	1	Hydraulic Hose	-
54	AT507266	1	Hydraulic Hose	-
55	AT511599	1	Pressure Sensor	SUB FOR AT456465
56	T404448	1	Clamp	-
57	38H5145	1	Elbow Fitting	-
58	T77613	1	O-Ring	-
59	RE60701	1	Diagnostic Coupling	-
60	AT505282	1	Check Valve	-
61	T77613	1	O-Ring	-
62	R77175	1	Cover	-
63	38H5135	1	Fitting	-
64	T77857	1	O-Ring	-
65	51M7042	1	O-Ring	13.300 X 2.200 mm
66	19M9873	4	Screw	M12 X 25
67	38H5165	1	Tee Fitting	-
68	51M7042	1	O-Ring	13.300 X 2.200 mm
69	T77613	2	O-Ring	-

Steering System Hoses without Secondary Steering ( 2 of 2 )
