Открытый узел

Stackable Controls, RH Arm Rest, Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT484553	1	Cab Wiring Harness	Stackable Controls, RH Arm Rest, Wiring Harness
2	57M7751	1	Elec. Connector Housing	X12B, Joystick Control To Load Centre Inline
2	R78065	20	Elec. Connector Terminal	-
2	57M7542	2	Elec. Connector Terminal	-
2	R78069	8	Elec. Connector Cavity Plug	-
3	T380249	1	Elec. Connector Accessory	-
4	57M10265	1	Elec.Connect Locking Device	S18, Turn Signal Switch
4	57M11214	5	Elec. Connector Terminal	-
4	57M7771	1	Elec. Connector Terminal	-
5	57M9734	1	Elec. Connector Housing	A39, Seat
5	57M7542	2	Elec. Connector Terminal	-
5	R78065	1	Elec. Connector Terminal	-
6	57M9838	1	Elec. Connector Accessory	-
7	57M11333	1	Elec. Connector Accessory	-
8	R78065	2	Elec. Connector Terminal	-
8	57M9772	1	Elec. Connector Housing	S31, Seat Belt Indicator Switch
9	57M10265	1	Elec.Connect Locking Device	S26, Turn Signal Switch
9	57M11214	5	Elec. Connector Terminal	-
9	57M7771	1	Elec. Connector Terminal	-
10	57M10346	2	Elec. Connector Housing	-
11	57M9130	2	Electrical Connector Assy	-
12	57M9792	1	Elec. Connector Housing	A36, Electrohydraulic (EH) Bucket Lever Assembly
12	57M8263	8	Elec. Connector Terminal	-
13	57M11335	1	Elec. Connector Accessory	-
14	57M9817	1	Elec. Connector Housing	A35, Electrohydraulic Boom Lever Assembly
14	57M8263	4	Elec. Connector Terminal	-
15	57M9817	1	Elec. Connector Housing	A37, Electrohydraulic (EH) Joystic Auxialliary Assembly
15	57M8263	4	Elec. Connector Terminal	-
16	R44302	1	Tie Band	-
17	R44302	1	Tie Band	-

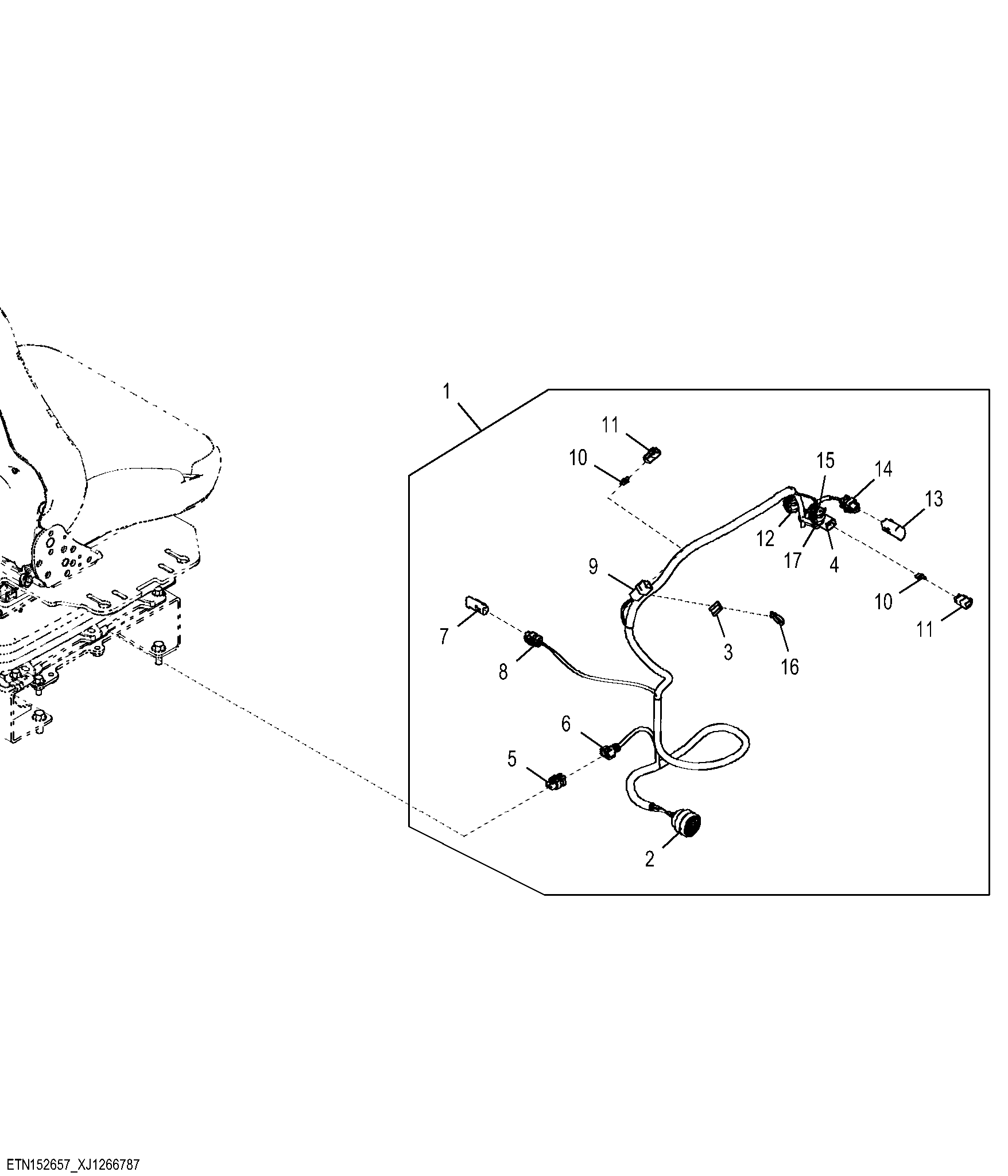

Stackable Controls, RH Arm Rest, Wiring Harness

Нет текстового описания
