Открытый узел

Reverse Clutch Assembly

Reverse Clutch Assembly

Reverse Clutch Assembly

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

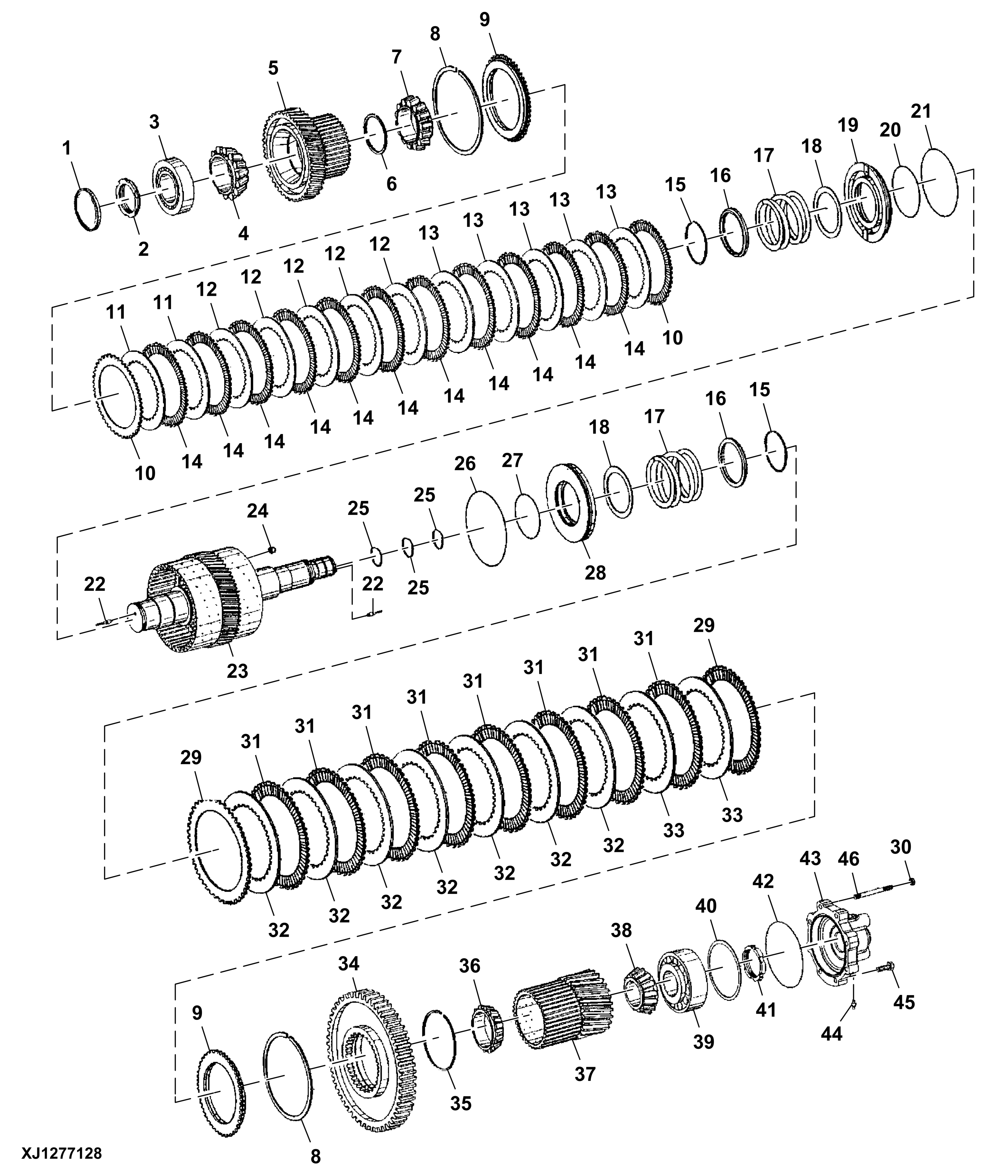

Reverse Clutch Assembly

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T168754	1	Cover	-
2	T226531	1	Nut	-
3	T195012	1	Ball Bearing	-
4	T195011	1	Tapered Roller Bearing	-
5	T195008	1	Spur Gear	-
6	T195010	1	O-Ring	-
7	T195009	1	Tapered Roller Bearing	-
8	T169093	2	Snap Ring	TK = 2.60 mm
8	T169086	1	Snap Ring	TK = 3.10 mm
8	T69086	2	Plate	TK = 3.10 mm
8	T179603	1	Snap Ring	TK = 2.35 mm
8	T179602	2	Snap Ring	TK = 2.25 mm
8	T179600	2	Snap Ring	TK = 2.10 mm
8	T170706	2	Snap Ring	TK = 2.45 mm
8	T169094	2	Snap Ring	TK = 2.55 mm
8	T169092	2	Snap Ring	TK = 2.65 mm
8	T169091	2	Snap Ring	TK = 2.70 mm
8	T169090	2	Snap Ring	TK = 2.75 mm
8	T169089	2	Snap Ring	TK = 2.80 mm
8	T169758	2	Ring	TK = 2.85 mm
8	T169759	2	Ring	TK = 2.90 mm
8	T169760	2	Ring	TK = 2.95 mm
9	T181737	2	End Plate	-
10	T169604	2	Disk With Outer Spline	-
11	T205646	2	Disk With Inner Spline	TK = 2.5 mm
11	T225919	2	Clutch Disk	TK = 4.0 mm
11	T205647	2	Disk With Inner Spline	TK = 3.0 mm
11	T225918	2	Clutch Disk	TK = 3.5 mm
12	T205647	5	Disk With Inner Spline	TK = 3.0 mm
13	T205646	8	Disk With Inner Spline	TK = 2.5 mm
14	T196794	11	Disk	-
15	T169618	2	Snap Ring	-
16	T181434	2	Ring	-
17	T169709	2	Compression Spring	-
18	T426031	1	Washer	-
18	T425023	1	Washer	-
18	T426032	1	Washer	-
18	T181433	2	Washer	-
19	T182778	1	Piston	-
20	T169036	1	O-Ring	-
21	T169034	1	O-Ring	-
22	T182775	3	Plug	-
23	T182800	1	Drum	-
24	T176801	2	Flow Control Hyd. Valve	-
25	T169017	3	Piston Ring	-
26	T168697	1	O-Ring	-
27	T168692	1	O-Ring	-
28	T195003	1	Piston	-
29	T169604	2	Disk With Outer Spline	-
30	14M7274	2	Nut	M10
31	T169603	8	Disk With Outer Spline	-
32	T205647	7	Disk With Inner Spline	TK = 3.0 mm
33	T205646	2	Disk With Inner Spline	TK = 2.5 mm
33	T205647	2	Disk With Inner Spline	TK = 3.0 mm
33	T225918	2	Clutch Disk	TK = 3.5 mm
33	T225919	2	Clutch Disk	TK = 4.0 mm
34	T203202	1	Gear	-
35	T169030	1	Snap Ring	-
36	T195016	1	Bearing Cup	-
37	T195015	1	Gear	-
38	T195017	1	Tapered Roller Bearing	-
39	T195018	1	Ball Bearing	-
40	T425761	1	Shim	-
40	T425760	1	Shim	-
40	T425759	1	Shim	-
40	T426016	1	Solid Shim	-
40	T426017	1	Solid Shim	-
40	T426014	1	Solid Shim	-
40	T426009	1	Solid Shim	-
40	T168837	1	Solid Shim	TK = 1.7 mm
40	T426012	1	Solid Shim	-
40	T426010	1	Solid Shim	-
40	T426015	1	Solid Shim	-
40	T426013	1	Solid Shim	-
40	T168840	1	Solid Shim	TK = 2.0 mm
40	T168830	1	Solid Shim	TK = 1.0 mm
40	T168831	1	Solid Shim	TK = 1.1 mm
40	T168832	1	Solid Shim	TK = 1.2 mm
40	T168833	1	Solid Shim	TK = 1.3 mm
40	T168834	1	Solid Shim	TK = 1.4 mm
40	T168835	1	Solid Shim	TK = 1.5 mm
40	T168836	1	Solid Shim	TK = 1.6 mm
40	T168838	1	Solid Shim	TK = 1.8 mm
40	T168839	1	Solid Shim	TK = 1.9 mm
40	T426011	1	Solid Shim	-
41	T226529	1	Nut	-
42	T170126	1	O-Ring	-
43	T195022	1	Cover	-
44	T182775	2	Plug	-
45	19M7804	6	Screw	M10 X 40
46	T195114	2	Stud	-
47	14M7274	2	Nut	M10
