Power Takeoff with Lock-up Torque Converter

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T425020	1	Washer	-
1	T425854	1	Washer	-
1	Z77199	1	Washer	TK = 1.63 mm
1	T425849	1	Washer	-
1	T425843	1	Washer	-
1	T425850	1	Washer	-
1	T425853	1	Washer	-
1	T425845	1	Washer	-
1	T425847	1	Washer	-
1	T425852	1	Washer	-
1	T426035	1	Washer	-
1	T169663	1	Shim	TK = 0.15 mm
1	T425022	1	Washer	-
1	T426034	1	Washer	-
1	T181392	1	Shim	TK = 1.80 mm
1	T181393	1	Shim	TK = 1.85 mm
1	T425019	1	Washer	-
1	T181395	1	Shim	TK = 1.95 mm
1	T426037	1	Washer	-
1	T426033	1	Washer	-
1	T426038	1	Washer	-
1	T426036	1	Washer	-
1	Z77198	1	Washer	TK = 1.47 mm
1	L41005	1	Shim	TK = 0.10 mm
1	L41004	1	Shim	TK = 0.20 mm
1	T169664	1	Shim	TK = 0.25 mm
1	T229087	1	Solid Shim	TK = 1.90 mm
1	T169665	1	Shim	TK = 0.35 mm
1	L41002	1	Shim	TK = 0.40 mm
1	L101689	1	Shim	TK = 0.45 mm
1	L41001	1	Shim	TK = 0.50 mm
1	L101690	1	Shim	TK = 0.55 mm
1	L41000	1	Shim	TK = 0.60 mm
1	L112212	1	Washer	TK = 0.70 mm
1	L112213	1	Washer	TK = 0.75 mm
1	L40999	1	Washer	TK = 0.80 mm
1	L112214	1	Washer	TK = 0.85 mm
1	L112215	1	Washer	TK = 0.90 mm
1	L112216	1	Washer	TK = 0.95 mm
1	L40998	1	Washer	TK = 1.00 mm
1	L112222	1	Washer	TK = 1.05 mm
1	L41003	1	Shim	TK = 0.30 mm
1	T425846	1	Washer	-
1	L112211	1	Washer	TK = 0.65 mm
2	T168706	1	Piston Ring	-
3	T169096	1	Gear	-
4	T425021	2	Washer	-
5	T170190	1	Bearing	-
6	T170193	1	Ring	-
7	AT436783	1	Cylindrical Roller Bearing	-
8	T398497	1	Shaft	-
9	L60042	1	Shim	-
10	T426491	1	Screw	-
11	T425031	8	Screw	-
12	T174398	1	O-Ring	-
13	T174529	1	O-Ring	-
14	T196851	2	Cap Screw	-
15	T213834	1	Spacer	-
16	T213837	1	Splined Coupling	-
17	T246998	1	Plate	-
18	T246999	1	Cover	-
19	30M7014	1	Plug	52 mm
20	T169055	1	Cover	-

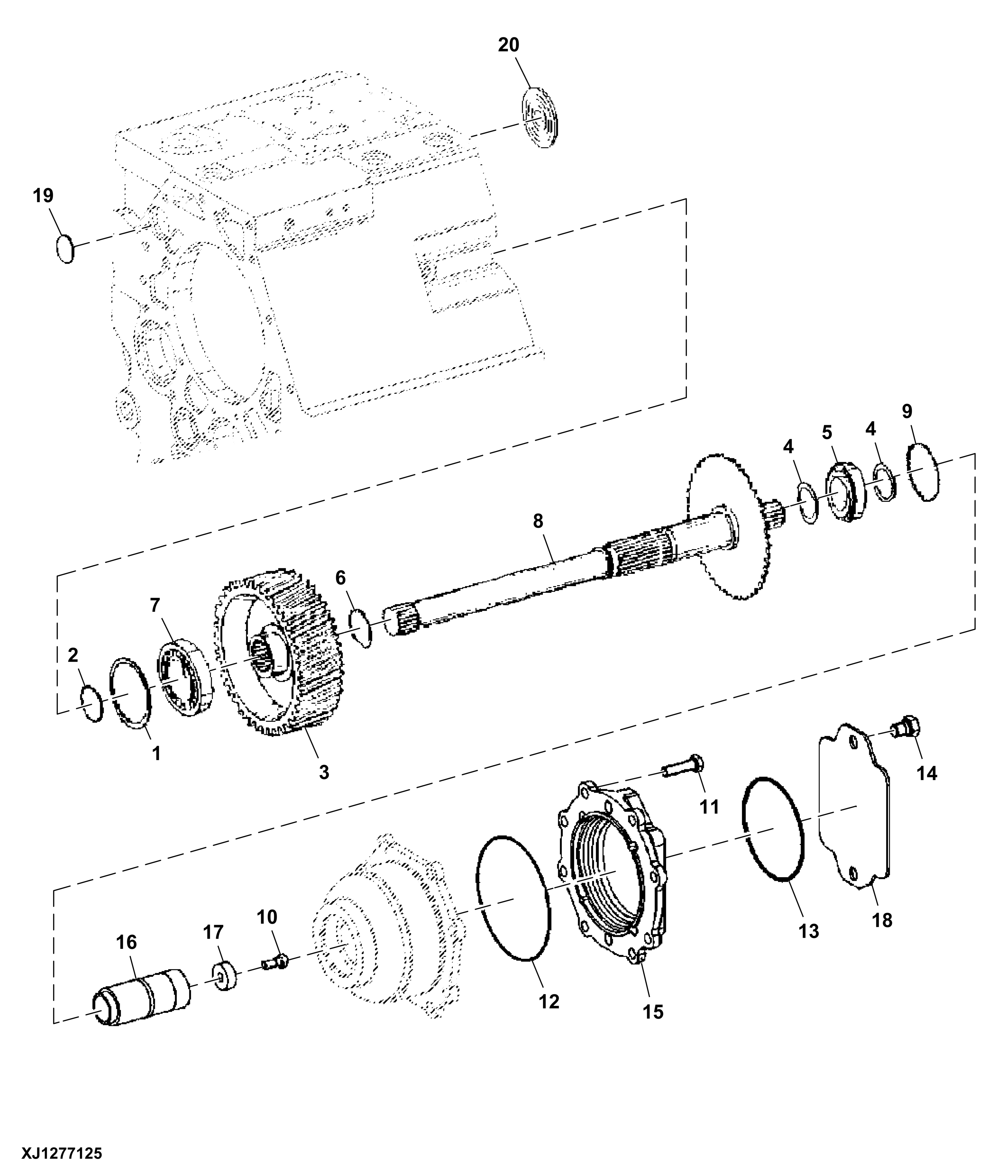

Power Takeoff with Lock-up Torque Converter
