Orbital Secondary Steering Plumbing ( 2 of 2 )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	51M7042	1	O-Ring	13.300 X 2.200 mm
1	AT487594	1	Valve	Pump Outlet Manifold, INCLUDES 51M7042, 64M1018
1	64M1018	1	Drain Plug	-
2	19M7821	4	Screw	M12 X 120
3	T78393	1	O-Ring	-
4	38H5006	1	Adapter Fitting	-
5	T76938	1	O-Ring	-
6	51M7048	1	O-Ring	29.600 X 2.900 mm
7	38H5010	1	Adapter Fitting	-
8	T77932	1	O-Ring	-
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	38H5017	1	Elbow Fitting	-
11	51M7043	1	O-Ring	15.300 X 2.200 mm
12	T77857	1	O-Ring	-
13	38H5024	1	Elbow Fitting	-
14	51M7043	1	O-Ring	15.300 X 2.200 mm
15	T77932	1	O-Ring	-
16	38H5027	1	Elbow Fitting	-
17	51M7045	1	O-Ring	19.300 X 2.200 mm
18	T77857	1	O-Ring	-
19	38H5035	2	Elbow Fitting	-
20	51M7042	2	O-Ring	13.300 X 2.200 mm
21	T77613	2	O-Ring	-
22	38H5036	1	Elbow Fitting	-
23	51M7042	1	O-Ring	13.300 X 2.200 mm
24	T77857	1	O-Ring	-
25	38H5071	1	Elbow Fitting	-
26	T77857	1	O-Ring	-
27	51M7043	1	O-Ring	15.300 X 2.200 mm
28	38H5135	1	Fitting	-
29	T77857	1	O-Ring	-
30	51M7042	1	O-Ring	13.300 X 2.200 mm
31	38H5203	2	Adapter Fitting	-
32	T76938	2	O-Ring	-
33	51M7048	2	O-Ring	29.600 X 2.900 mm
34	38H5264	1	Adapter Fitting	-
35	51M7048	1	O-Ring	29.600 X 2.900 mm
36	T77858	1	O-Ring	-
37	38H5436	1	Adapter Fitting	-
38	51M7040	1	O-Ring	9.300 X 2.200 mm
39	T77613	2	O-Ring	-
40	62M1001	1	Adapter Fitting	-
41	51M7043	1	O-Ring	15.300 X 2.200 mm
42	64M1004	4	Drain Plug	-
43	51M7042	4	O-Ring	13.300 X 2.200 mm
44	64M1008	1	Drain Plug	-
45	51M7047	1	O-Ring	23.600 X 2.900 mm
46	AT479281	1	Oil Line	-
47	AT479282	1	Oil Line	-
48	AT471434	1	Oil Line	-
49	AT471435	1	Oil Line	-
50	AT478362	1	Oil Line	-
51	AT451782	1	Hydraulic Hose	-
52	AT451670	1	Hydraulic Hose	-
53	T76938	1	O-Ring	-
54	AT469120	1	Hydraulic Hose	INCLUDES T77932
55	T77932	1	O-Ring	-
56	AT471437	1	Hydraulic Hose	INCLUDES T77857
57	T77857	1	O-Ring	-
58	AT478211	1	Hydraulic Hose	INCLUDES T77932
59	T77932	1	O-Ring	-
60	AT486897	1	Hydraulic Hose	-
61	AT487449	1	Hydraulic Hose	-
62	AT490109	1	Hydraulic Hose	INCLUDES T77858
63	T77858	1	O-Ring	-
64	AT498196	1	Hydraulic Hose	INCLUDES T77857
65	T77857	1	O-Ring	-
66	T57359	2	Clamp	-
67	T364889	1	Plate	-
68	19M9849	2	Screw	M10 X 60
69	T70659	2	Clamp	-
70	19M9844	6	Screw	M10 X 20
71	RE60701	1	Diagnostic Coupling	-
72	R77175	1	Cover	-
73	H135156	2	Clamp	-
74	H120847	2	Clamp	-
75	H121168	1	Plate	-
76	19M8874	1	Screw	M8 X 75
77	14M7649	1	Flange Nut	M8
78	H224073	1	Tie Band	-
79	T404608	1	Plate	-
80	T38377	2	Clamp	-
81	19M9845	2	Screw	M10 X 25
82	14M7648	1	Flange Nut	M10
83	AT511599	1	Pressure Sensor	SUB FOR AT456465
84	AH89486	1	Clip	-
85	AT505282	1	Check Valve	-
86	T77613	1	O-Ring	-
87	28H3482	1	Washer	0.493" X 0.675" X 5/16"
88	AH77884	1	Clip	-
89	51M7040	1	O-Ring	9.300 X 2.200 mm

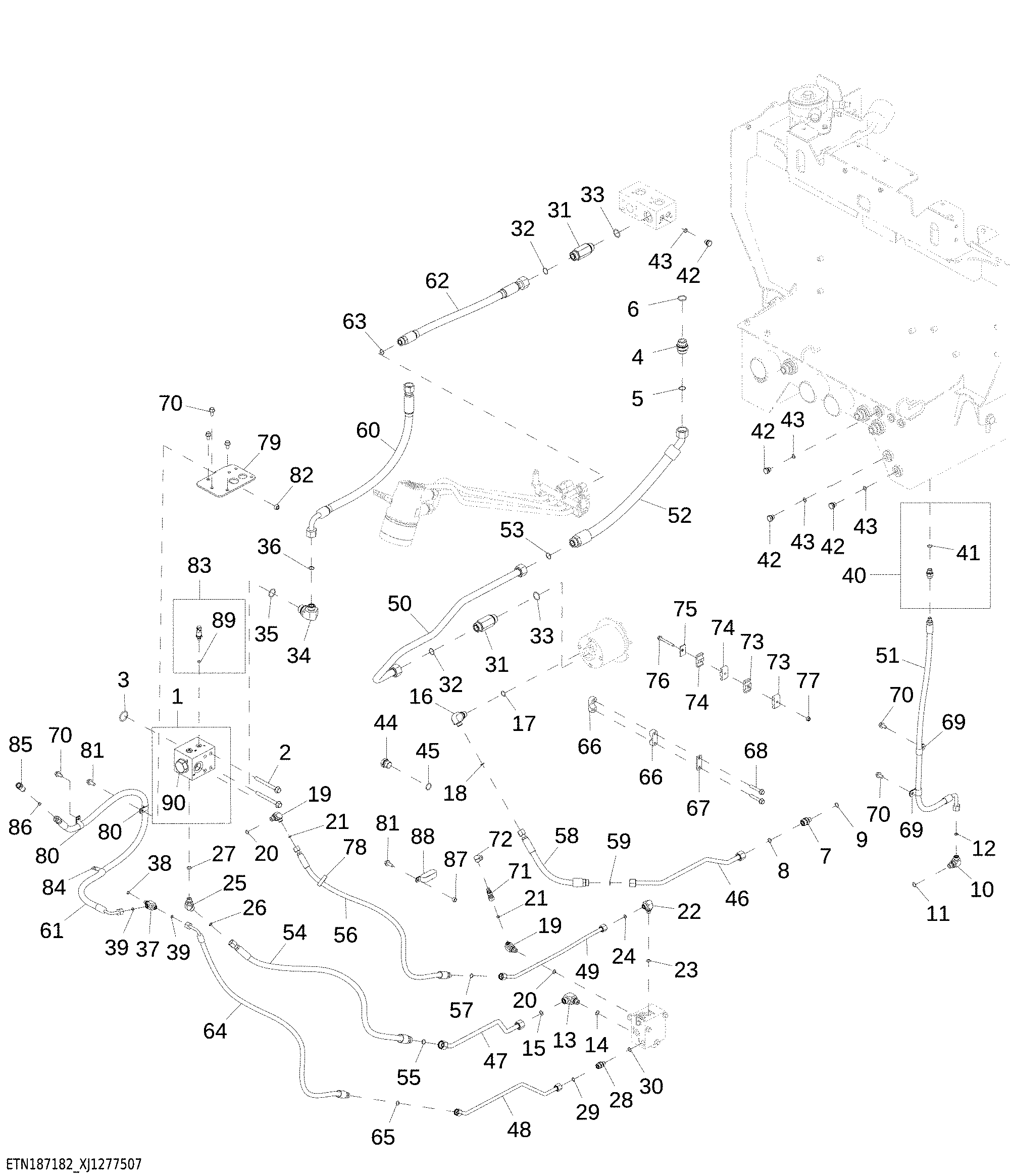

Orbital Secondary Steering Plumbing ( 2 of 2 )
