Открытый узел

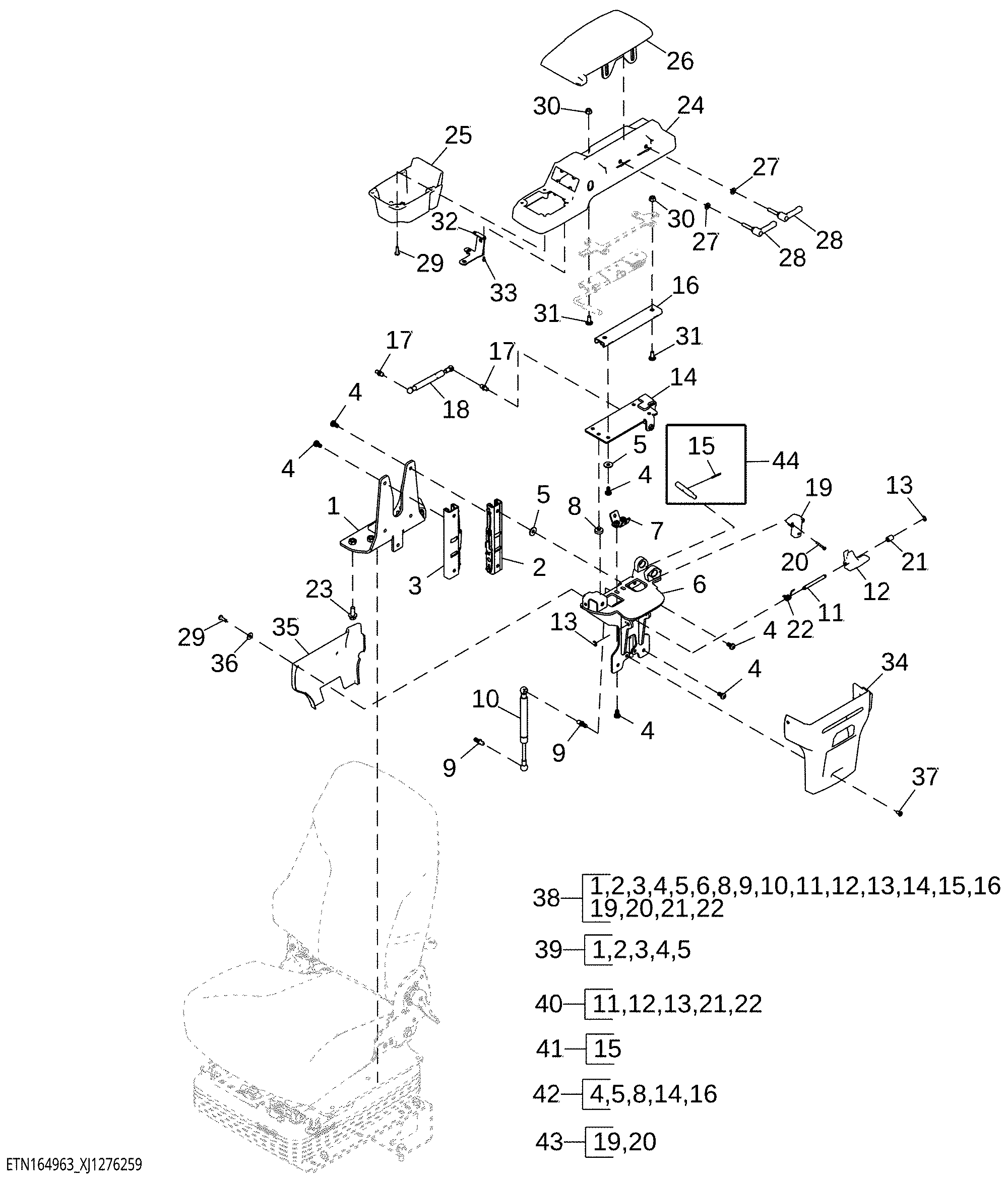

LH Armrest with Front Neutral Reverse Joystick

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT473605	1	Bracket	LH Armrest, Seat Plate
2	AT467826	1	Seat Slide Track Kit	Armrest Slider, RH
3	AT467827	1	Seat Slide Track Kit	Armrest Slider, LH
4	T402951	14	Bolt	-
5	24M7298	16	Washer	8.400 X 25 X 2 mm
6	AT469011	1	Bracket	LH Armrest, Middle, ORDER AT512130
6	AT512130	1	Bracket	LH Armrest, Middle
7	AT495405	1	Bracket	Armrest Rotation Stop
8	R209721	3	Bumper	-
9	T376516	2	Ball Stud	-
10	AT467828	1	Spring Assembly	Vertical Armrest Spring
11	T391198	1	Pin	-
12	T391181	1	Lever	-
13	40M7403	2	Snap Ring	-
14	AT478629	1	Bracket	ORDER AT512128
14	AT512128	1	Bracket	-
15	T426642	1	Spring Pin	Armrest Spring Pin
16	AT473190	1	Seat Slide Track Kit	Armrest Slider, RH, INCLUDES AT486544, T402951, AT473605, 24M7298, AT467826 AND AT467827
17	T395060	2	Ball Stud	-
18	AT469013	1	Spring Assembly	Armrest Rotation Spring, LH, USE WITH AT469010
18	AT512127	1	Spring Assembly	Armrest Rotation Spring, LH, USE WITH AT512131
19	RE321826	1	Sensor	Hall Position Sensor
20	21M7475	2	Screw	M4 X 35
21	T394723	1	Spacer	Armrest Handle Spacer
22	T394028	1	Torsion Spring	-
23	19M7785	4	Screw	M10 X 25
24	T386731	1	Console	-
25	T372690	1	Console	-
26	AT469014	1	Armrest	LH
27	24M7238	2	Washer	8.700 X 17 X 2 mm
28	T407888	2	Handle	Armrest Locking Handle
29	T406564	8	Bolt	-
30	14M7298	4	Flange Nut	M8
31	03M7184	4	Bolt	M8 X 20
32	AT473827	1	Bracket	Armrest Connector Bracket with Joystick
33	19M8869	2	Screw	M4 X 8
34	T381195	1	Cover	LH Armrest Outer Side Cover
35	T381196	1	Cover	LH Armrest Inner Side Cover
36	24H1821	4	Washer	9/32" X 47/64" X 1/16"
37	21M7687	2	Screw	M6 X 12
38	AT469010	1	Armrest Console	Armrest Rotator, LH, ORDER AT512131, INCLUDES AT473190, AT486544, T402951, AT473605, 24M7298, AT467826, AT467827, AT486547 AND AT486550
38	AT512131	1	Armrest Console	Armrest Rotator, LH, INCLUDES AT473190, AT486544, T402951, AT473605, 24M7298, AT467826, AT467827, AT486547 AND AT486550
39	AT486544	1	Bracket Kit	Vertical Slide Kit, LH, Not Illustrated
40	AT486547	1	Bracket Kit	Armrest Vertical Adjustment Handle Kit, INCLUDES T394723, T391181, T391198, 40M7403, T394028, AT473605, T402951, R209721, T376516, T426642, AT469013, RE321826, T394723, AT473190
42	AT486545	1	Bracket Kit	Fore Slide Kit, LH, ORDER AT512129, INCLUDES R209721, 34M7083, T402951, AT473190, AT478629 AND 24M7298
42	34M7083	1	Spring Pin	3 X 30 mm, Not Illustrated
42	AT512129	1	Bracket Kit	Fore Slide Kit, LH, INCLUDES R209721, 34M7083, T402951, AT473190, AT478629 AND 24M7298
43	AT486551	1	Sensor Kit	Hall Sensor Kit, INCLUDES RE321826 AND 21M7475
44	AT486550	1	Pin Kit	Arm Rest Pin Kit, INCLUDES T426642

LH Armrest with Front Neutral Reverse Joystick

Нет текстового описания
