Floor Mat, Harnesses and Steering Controller Parts Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11216	1	Mounting Parts	WHOLE GOODS
2	AT478213	1	Bracket	Electro-Hydraulic Steering Controller Bracket
3	RE305397	1	Steering Controller	Electro-Hydraulic Steering Controller
4	19M8686	2	Screw	M8 X 90
5	19M9405	3	Screw	M8 X 16
6	AT486680	1	Bracket	-
7	AT487271	2	Converter	8 Amp
8	24M7146	4	Washer	4.300 X 12 X 1 mm
9	19M7752	4	Cap Screw	M4 X 20
10	19M7867	2	Screw	M8 X 25
11	AT498273	1	Wiring Harness	Electro-Hydraulic Joystick Steering Wiring Harness Components on Seperate Page
12	T74416	2	Clamp	-
13	T407839	1	Bracket	-
14	57M10650	1	Clip Kit	-
15	AT406571	1	Sensor	Boom Self-Level Sensor
16	T23876	3	Screw	-
17	AT489895	1	Bracket	-
18	19M9873	2	Screw	M12 X 25
19	T407840	1	Guide	-
20	24H1657	2	Washer	21/64" X 1-1/4" X 7/64"
21	19M9837	2	Screw	M8 X 25
22	14H850	1	NUT	1/4"
23	R44302	1	Tie Band	-
24	R50454	2	Clamp	-
25	19M9836	2	Screw	M8 X 20
26	R44302	6	Tie Band	-
27	H224073	3	Tie Band	-
28	T210717	1	Bracket	Harness Mounting Bracket
29	H224073	2	Tie Band	-
30	14M7648	1	Flange Nut	M10
31	19M9844	1	Screw	M10 X 20
32	T399201	1	Cover	Front Console Cover
33	T399202	1	Console	-
34	AT486915	1	Storage Compartment	-
35	R120160	2	Clip	-
36	AT482236	1	Cab Wiring Harness	No Column Front Console Wiring Harness Components on Seperate Page
37	T309615	4	Clamp	-
38	R263172	4	Screw	-
39	R44302	12	Tie Band	-
40	T420516	1	Plate	Floor Seal
41	T402616	1	Gasket	-
42	19M7868	4	Screw	M8 X 30
43	T421448	1	Mat	-
44	AT490074	1	Bracket	-
45	T409919X00	2	Label	LH Joystick Steer No Text Not Illustrated

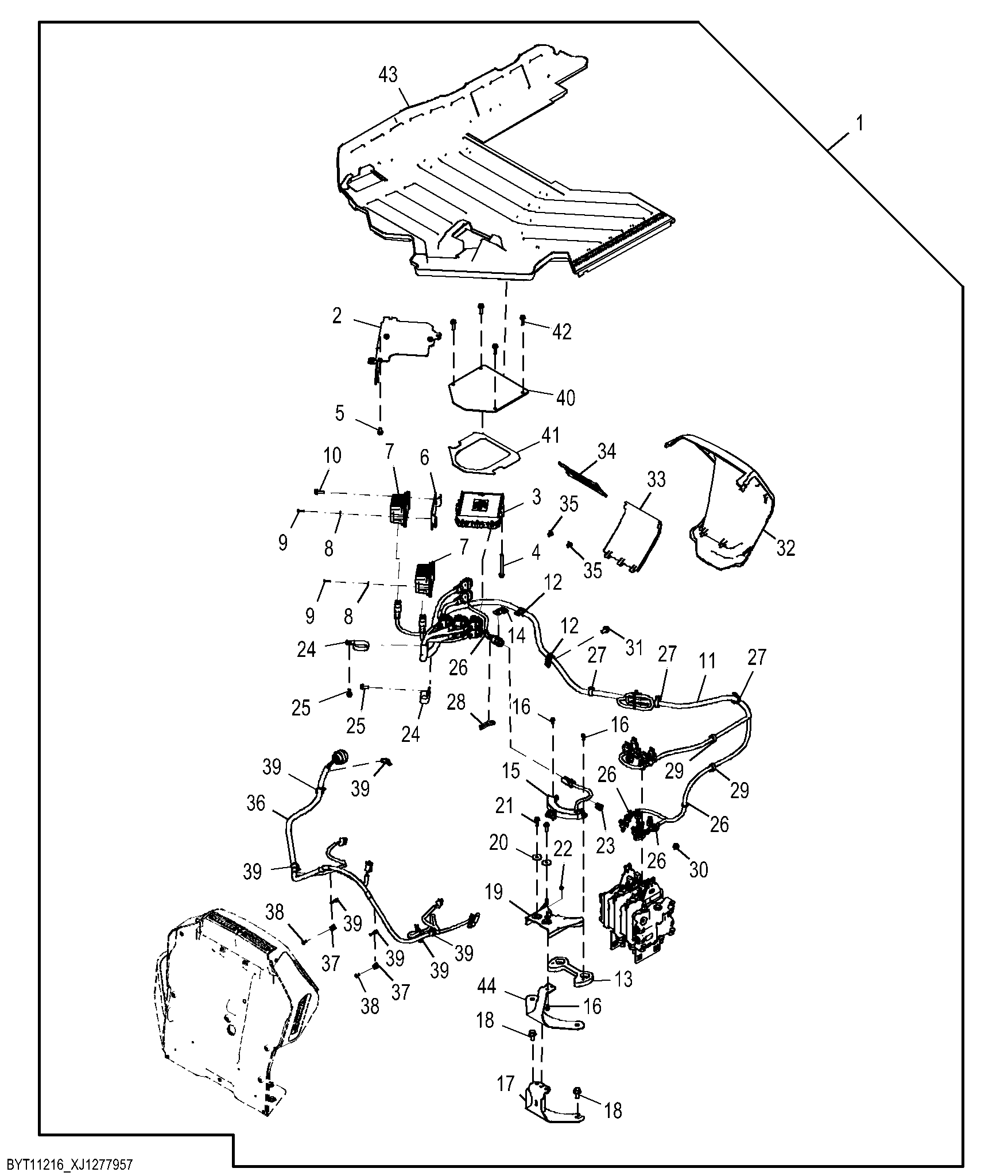

Floor Mat, Harnesses and Steering Controller Parts Kit
