Axle Cooling and Filtration System, No Differential Lock (4 of 5)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5010	4	Adapter Fitting	-
2	T77932	4	O-Ring	-
3	51M7043	4	O-Ring	15.300 X 2.200 mm
4	38H5175	1	Tee Fitting	-
5	T77932	2	O-Ring	-
6	AT471097	1	Bracket	Axle Cooling Tubes Bracket, Middle
7	AT486061	1	Bracket	Axle Cooling Tubes Bracket, Front
8	T383970	1	Plate	Axle Cooling Tubes, Front
9	T77932	4	O-Ring	-
10	AH226096	2	Clamp	-
11	T238029	1	Adjusting Strap	-
12	AT501504	1	Oil Line	-
13	AT501508	1	Oil Line	-
14	AT501506	1	Oil Line	-
15	AT501509	1	Oil Line	-
16	AT501589	1	Hydraulic Hose	INCLUDES T77932
17	T77932	1	O-Ring	-
18	AT502704	1	Hydraulic Hose	INCLUDES T77932
19	T77932	1	O-Ring	-
20	AT470298	1	Hydraulic Hose	INCLUDES T77932
21	T77932	1	O-Ring	-
22	AT470297	1	Hydraulic Hose	INCLUDES T77932
23	T77932	1	O-Ring	-
24	H120847	16	Clamp	-
25	H121168	4	Plate	-
26	19M9873	6	Screw	M12 X 25
27	19M9977	4	Screw	M8 X 80
28	14M7649	6	Flange Nut	M8

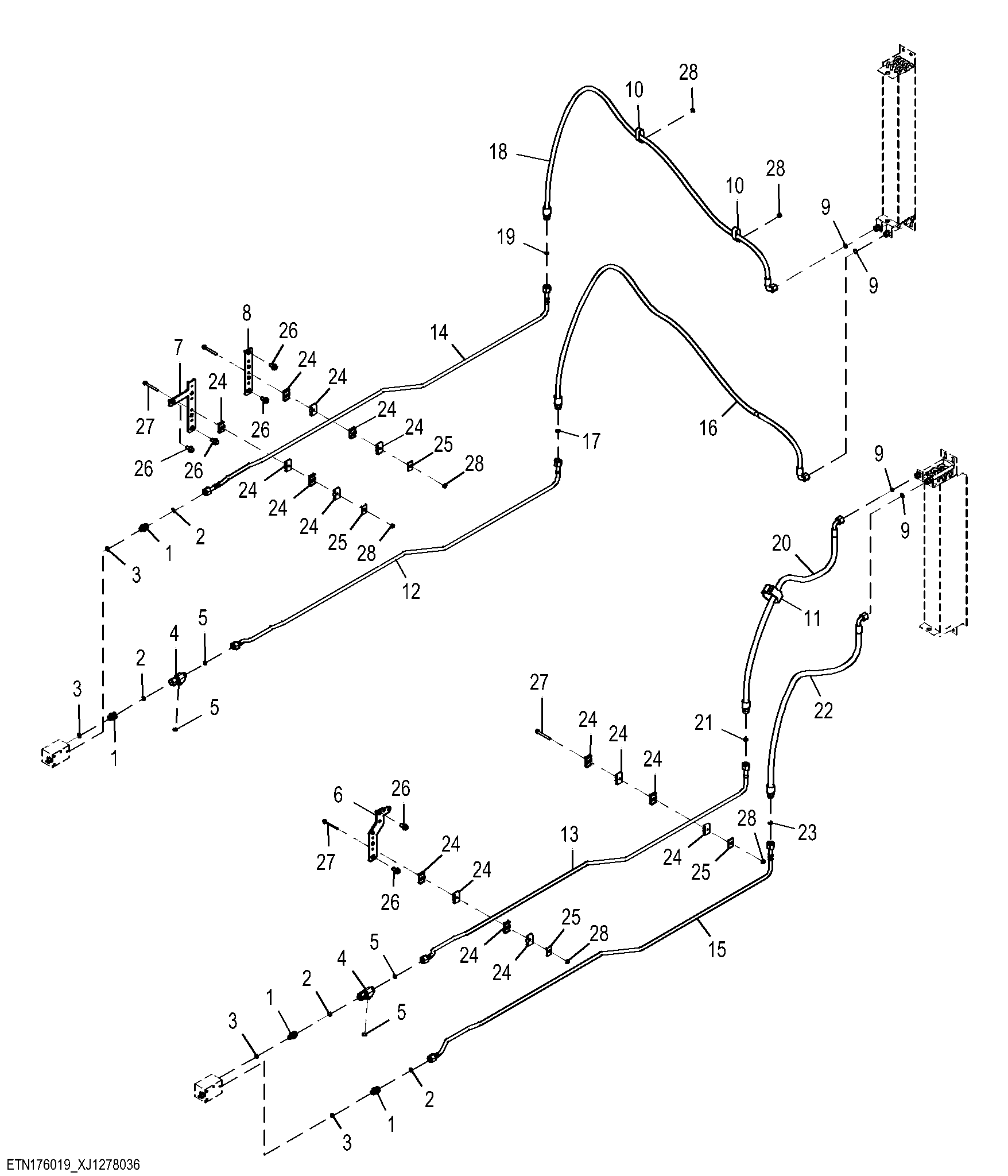

Axle Cooling and Filtration System, No Differential Lock (4 of 5)

Нет текстового описания
