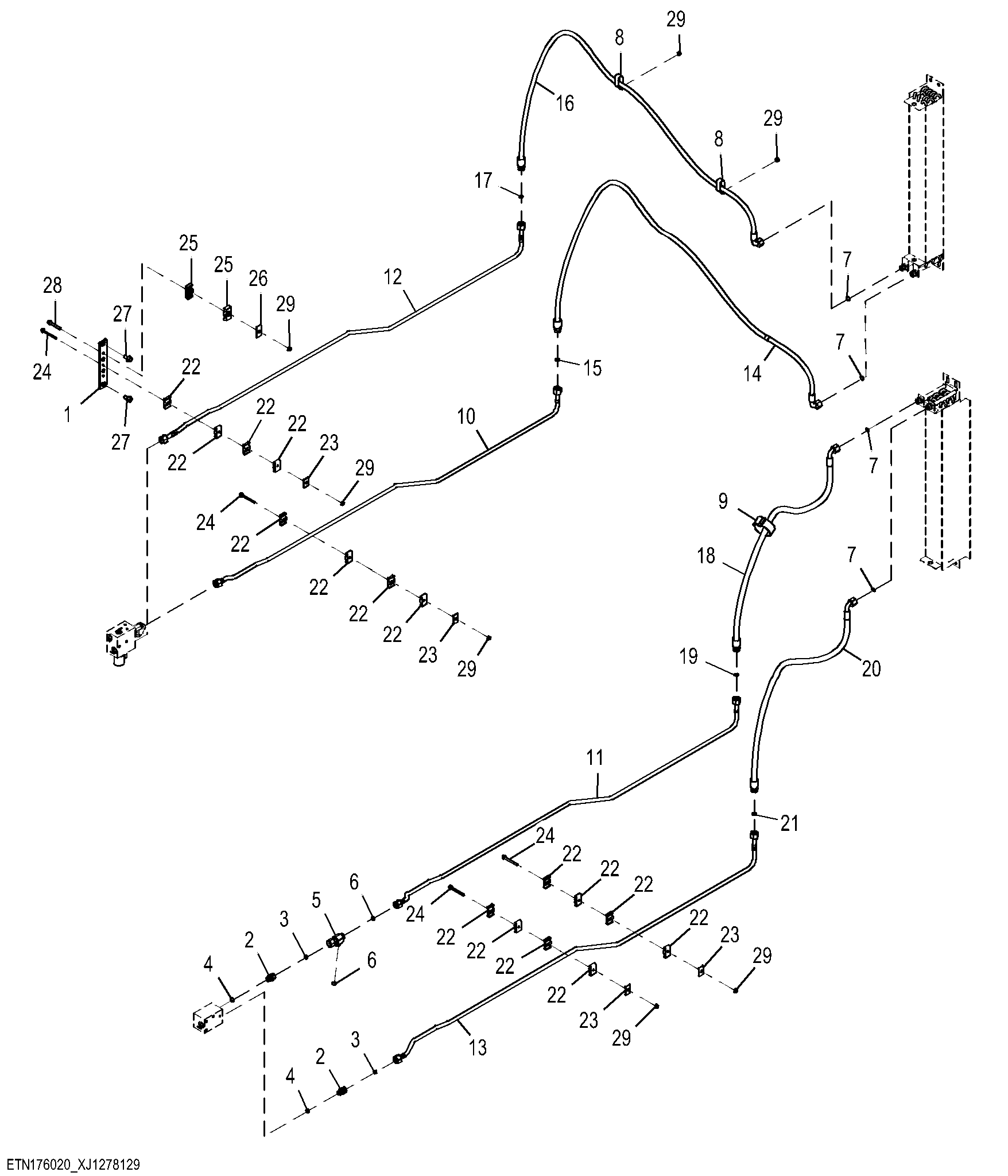

Axle Cooling and Filtration System for Front Differential Lock (4 of 5)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T383970	1	Plate	Axle Cooling Tubes Bracket, Front
2	38H5010	2	Adapter Fitting	-
3	T77932	2	O-Ring	-
4	51M7043	2	O-Ring	15.300 X 2.200 mm
5	38H5175	1	Tee Fitting	-
6	T77932	2	O-Ring	-
7	T77932	4	O-Ring	-
8	AH226096	2	Clamp	-
9	T238029	1	Adjusting Strap	-
10	AT501504	1	Oil Line	-
11	AT501508	1	Oil Line	-
12	AT501506	1	Oil Line	-
13	AT501509	1	Oil Line	-
14	AT501589	1	Hydraulic Hose	INCLUDES T77932
15	T77932	1	O-Ring	-
16	AT502704	1	Hydraulic Hose	INCLUDES T77932
17	T77932	1	O-Ring	-
18	AT470298	1	Hydraulic Hose	INCLUDES T77932
19	T77932	1	O-Ring	-
20	AT470297	1	Hydraulic Hose	INCLUDES T77932
21	T77932	1	O-Ring	-
22	H120847	16	Clamp	-
23	H121168	4	Plate	-
24	19M9977	4	Screw	M8 X 80
25	H135155	2	Clamp	-
26	H112567	1	Plate	-
27	19M9873	2	Screw	M12 X 25
28	19M7802	1	Screw	M8 X 65
29	14M7649	7	Flange Nut	M8

Axle Cooling and Filtration System for Front Differential Lock (4 of 5)
