Открытый узел

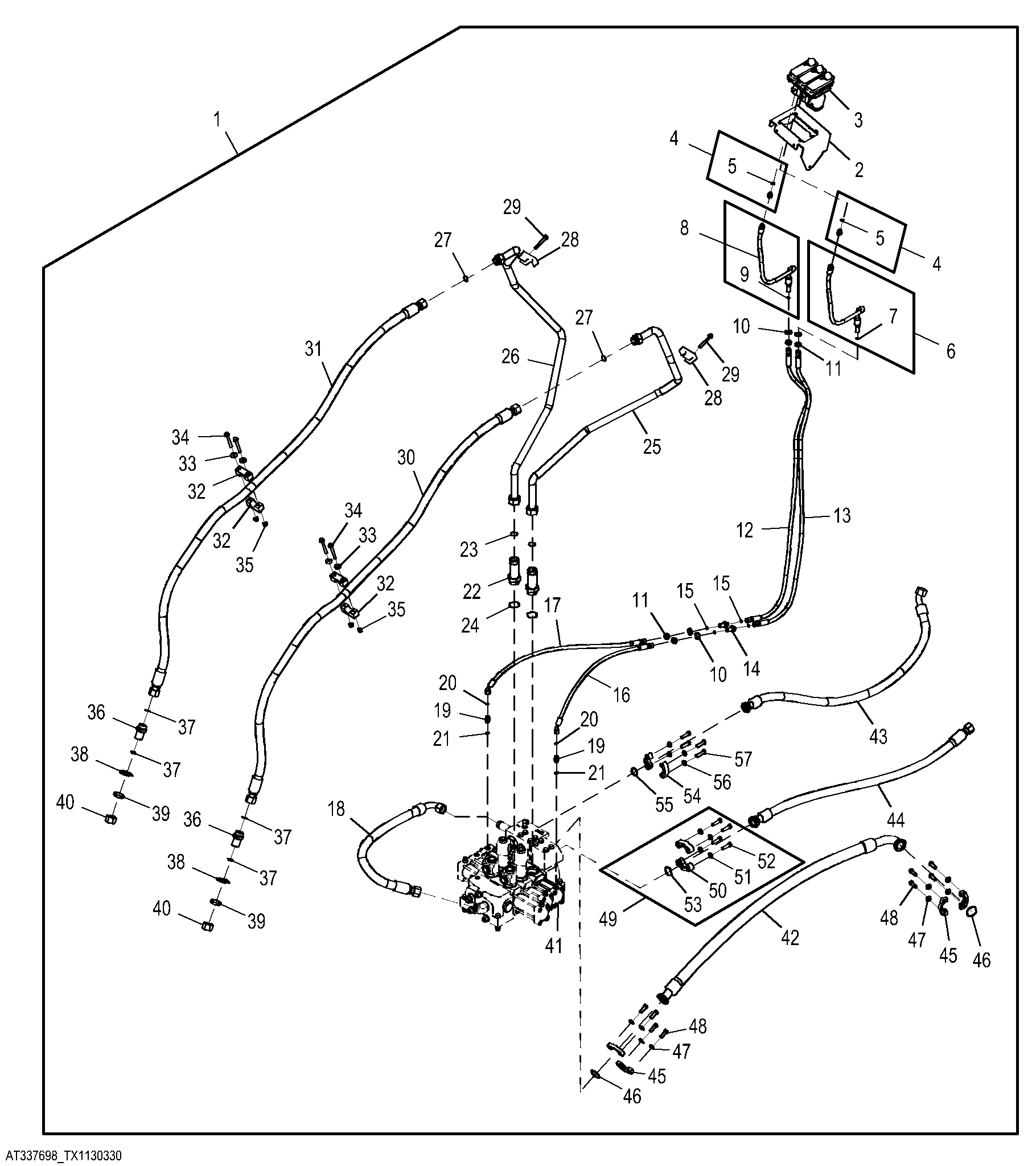

Two Lever To Three Lever Pilot Controller Conversion Kit ( - 662429)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207984	3	Rod	Stud Assembly for 3-Spool Control Valve Not Illustrated, INCLUDES (2) 810000500 AND (2) T170067
1	AT337698	1	Control Kit	Whole Goods
1	AT210105	1	Seal Kit	Interface Seal Kit Not Illustrated
1	810000500	2	WASHER*5/8	-
1	T170067	2	Nut	-
2	AT341526	1	Plate	-
3	AT300154	1	Hydr./Pilot Control Valve	3-Lever
4	63H1001	2	Fitting	-
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	AT336507	1	Hydraulic Hose	Fabricate
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	AT336507	1	Hydraulic Hose	Fabricate
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	12H327	4	Lock Washer	3/4"
11	T81029	4	Nut	-
12	AT340873	1	Hydraulic Hose	Fabricate
13	AT340873	1	Hydraulic Hose	Fabricate
14	38H1285	2	Union Fitting	-
15	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	AT323706	1	Hydraulic Hose	-
17	AT323706	1	Hydraulic Hose	-
18	AT322737	1	Hydraulic Hose	Fabricate
19	38H1160	2	Adapter Fitting	-
20	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
22	38H1615	1	Adapter Fitting	-
23	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
24	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
25	AT330023	1	Oil Line	-
26	AT330024	1	Oil Line	-
27	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
28	T104355	2	Clamp	-
29	19M9128	2	Screw	M10 X 75
30	AT322754	1	Hydraulic Hose	Fabricate
31	AT322754	1	Hydraulic Hose	Fabricate
32	T67995	4	Clamp	-
33	24M7296	4	Washer	10.500 X 30 X 2.500 mm
34	19M7811	4	Screw	M10 X 90
35	14M7296	4	Flange Nut	M10
36	38H1287	2	Adapter Fitting	-
37	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
38	T216836	2	Lock Washer	-
39	T78715	2	Nut	-
40	38H1419	2	Fitting	-
41	AT312731	1	Flow Control Hyd. Valve	Auxiliary Valve Section Components On Separate Page
42	AT438993	1	Hydraulic Hose	Fabricate
43	AT438991	1	Hydraulic Hose	Fabricate
44	AT438992	1	Hydraulic Hose	Fabricate
45	X51H-24	2	Flange Fitting	-
46	T34248	1	O-Ring	47.219 X 3.531 mm (1-55/64" X 0.139")
47	24M7240	4	Washer	13 X 25 X 3 mm
48	19M7403	4	Cap Screw	M12 X 35
49	AT390184	1	Fitting Kit	-
50	AT131685	2	Flange Fitting	-
51	24M7240	4	Washer	13 X 25 X 3 mm
52	19M7496	4	Cap Screw	M12 X 45
53	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
54	T107068	2	Flange Fitting	-
55	T78313	1	O-Ring	32.918 X 3.531 mm (1.296" X 0.139")
56	24M7240	4	Washer	13 X 25 X 3 mm
57	19M7496	4	Cap Screw	M12 X 45

Two Lever To Three Lever Pilot Controller Conversion Kit ( - 662429)

Нет текстового описания
