Third Accumulator For Ride Control Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

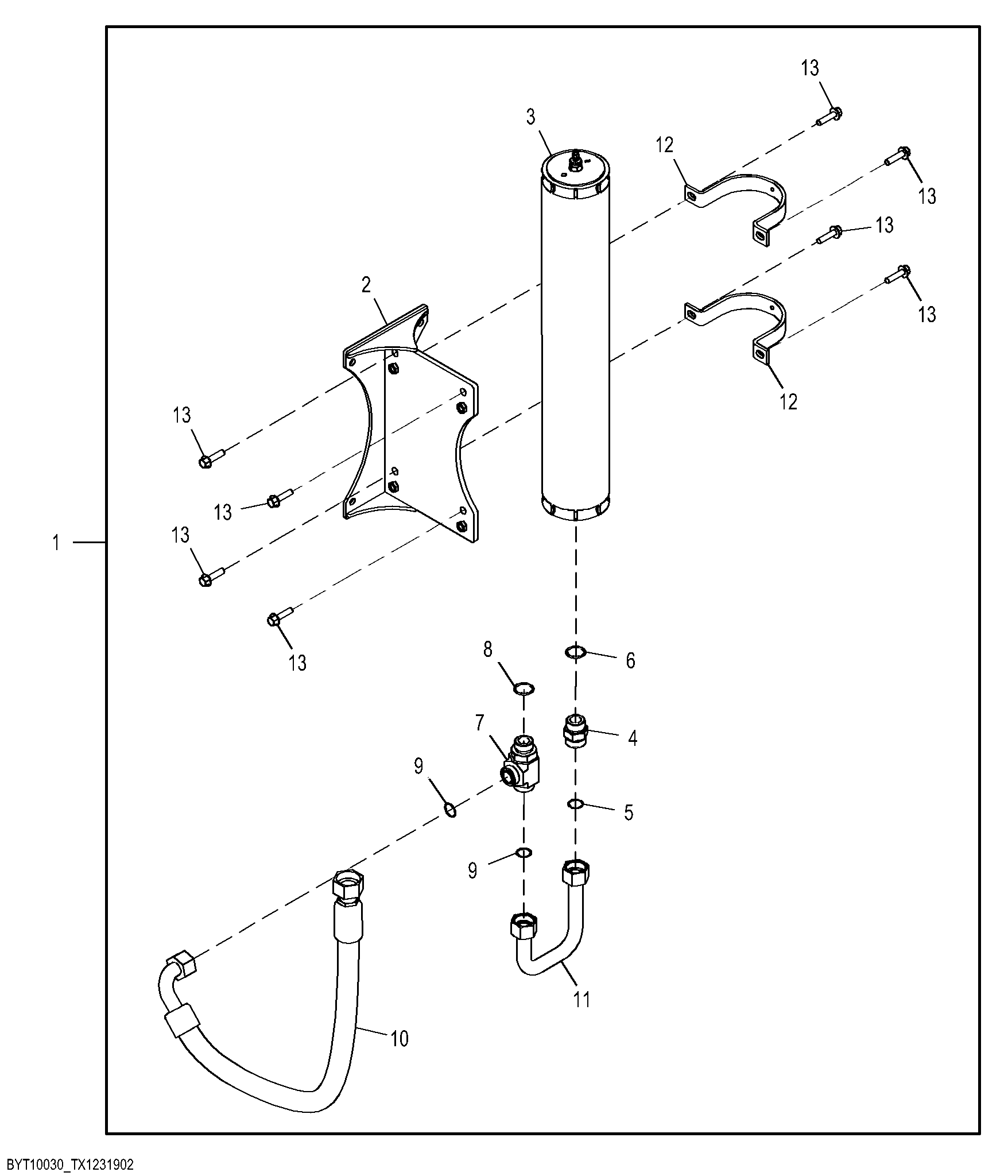

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10030	1	Bracket Kit	Whole Goods
2	AT461414	1	Bracket	-
3	AT451187	1	Accumulator Kit	INCLUDES AT451188
3	AT451188	1	Valve Kit	INCLUDES T150961
3	T150961	1	O-Ring	-
4	38H1164	1	Adapter Fitting	-
5	T76938	1	O-Ring	-
6	R29936	1	O-Ring	-
7	38H1027	1	Tee Fitting	-
8	R29936	1	O-Ring	-
9	T76938	2	O-Ring	-
10	AT461516	1	Hydraulic Hose	-
11	AT461515	1	Line	-
12	T146490	2	Clamp	-
13	19M7804	8	Screw	M10 X 40
14	T180944	1	Label	Accumulator - English Not Illustrated, NLA; ORDER T225374
14	T225374	1	Label	Accumulator - English Not Illustrated
15	T215216	1	Label	Accumulator - French Not Illustrated, NLA; ORDER T225375
15	T225375	1	Label	Accumulator - French Not Illustrated
16	T215217	1	Label	Accumulator - Spanish Not Illustrated, NLA; ORDER T225376
16	T225376	1	Label	Accumulator - Spanish Not Illustrated
17	T290050	1	Label	Accumulator - Russian Not Illustrated, ORDER T252395
17	T252395	1	Label	Accumulator - Russian Not Illustrated

Third Accumulator For Ride Control Kit
