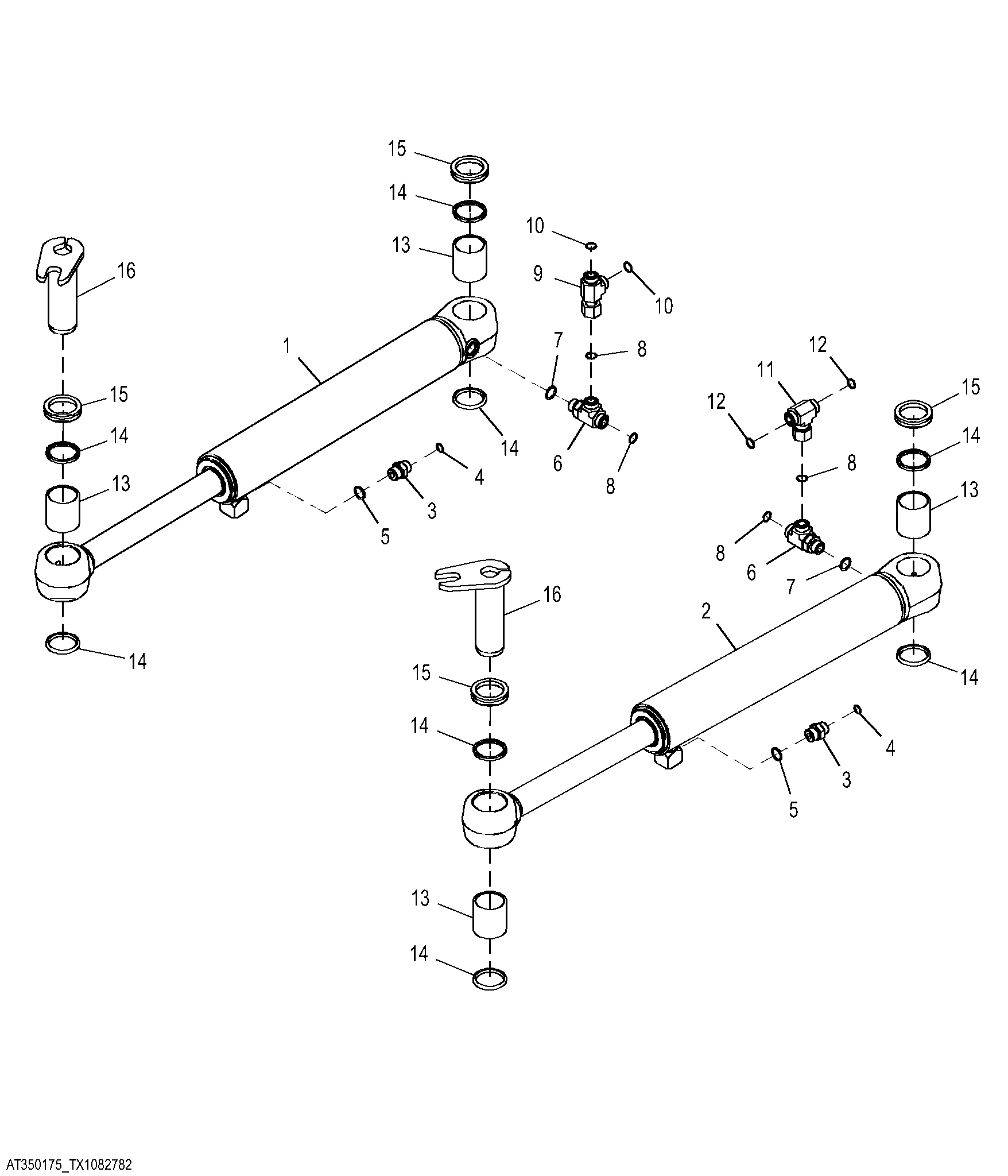

Steering Cylinders and Fittings (NeverGrease™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AHC10921	1	Hydraulic Cylinder	Right Components On Seperate Page, NLA; ORDER AHC16417
1	AHC18628	1	Hydraulic Cylinder	Components On Seperate Page, ALSO ORDER 38H5005, (3) T77858, (2) 51M7047, 38H5108; SUB FOR AHC16417
1	38H5005	1	Adapter Fitting	-
1	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
1	51M7047	2	O-Ring	23.600 X 2.900 mm
1	38H5108	1	Tee Fitting	-
1	-	1	Part 1	Components On Seperate Page, SUB AHC10921 AND (2) T277557 AH222736 NLA
2	-	1	Part 8	Components On Seperate Page, SUB AHC10928 AND (2) T277557 AH222737 NLA
2	AHC10928	1	Hydraulic Cylinder	Left Components On Seperate Page, NLA; ORDER AHC16416
2	AHC18623	1	Hydraulic Cylinder	Components On Seperate Page, ALSO ORDER 38H5005, T77858, 51M7047, 38H5108; SUB FOR AHC16416
2	38H5005	1	Adapter Fitting	-
2	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
2	51M7047	1	O-Ring	23.600 X 2.900 mm
2	38H5108	1	Tee Fitting	-
3	38H1329	2	Adapter Fitting	-
4	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
5	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
6	38H1026	2	Tee Fitting	-
7	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	38H1033	1	Tee Fitting	-
10	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	38H1041	1	Tee Fitting	-
12	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	T224313	4	Bushing	-
14	T157275	8	Seal	-
15	T277557	4	V-Ring Seal	-
16	AT325850	2	Pin	-

Steering Cylinders and Fittings (NeverGrease™)
