Power Takeoff (without Lock-up Torque Converter)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L112206	1	Washer	1.60 mm
1	L112218	1	Washer	1.15 mm
1	L40997	1	Washer	1.20 mm
1	L112219	1	Washer	1.25 mm
1	L112220	1	Washer	1.30 mm
1	L112221	1	Washer	1.35 mm
1	L112210	1	Washer	1.40 mm
1	L112209	1	Washer	1.45 mm
1	T181388	1	Shim	1.47 mm
1	L112208	1	Washer	1.50 mm
1	L112207	1	Washer	1.55 mm
1	T169663	1	Shim	0.15 mm
1	T181389	1	Shim	1.63 mm
1	L112205	1	Washer	1.65 mm
1	T181390	1	Shim	1.75 mm
1	AT321954	1	Shim	1.70 mm
1	T181392	1	Shim	1.80 mm
1	T181393	1	Shim	1.85 mm
1	T181394	1	Shim	1.90 mm
1	T181395	1	Shim	1.95 mm
1	T169636	1	Solid Shim	2.00 mm
1	L112222	1	Washer	1.05 mm
1	L41005	1	Shim	0.10 mm
1	L41004	1	Shim	0.20 mm
1	T169664	1	Shim	0.25 mm
1	T169627	1	Solid Shim	0.30 mm
1	T169665	1	Shim	0.35 mm
1	L41002	1	Shim	0.40 mm
1	L101689	1	Shim	0.45 mm
1	L41001	1	Shim	0.50 mm
1	L101690	1	Shim	0.55 mm
1	L112211	1	Washer	0.65 mm
1	L112212	1	Washer	0.70 mm
1	L112213	1	Washer	0.75 mm
1	L40999	1	Washer	0.80 mm
1	L112214	1	Washer	0.85 mm
1	L112215	1	Washer	0.90 mm
1	L112216	1	Washer	0.95 mm
1	L40998	1	Washer	1.00 mm
1	L112217	1	Washer	1.10 mm
1	L41000	1	Shim	0.60 mm
2	T168706	1	Piston Ring	-
3	T169096	1	Gear	-
4	T169100	2	Washer	-
5	T170190	1	Bearing	-
6	T170193	1	Ring	-
7	T182370	1	Tapered Roller Bearing	-
8	T405968	1	Shaft	SUB FOR T196795
9	L60042	1	Shim	-
10	L31212	1	Cap Screw	-
11	19M7496	8	Cap Screw	M12 X 45
12	T174398	1	O-Ring	-
13	T174529	1	O-Ring	-
14	T196851	2	Cap Screw	-
15	T213834	1	Spacer	-
16	T213837	1	Splined Coupling	-
17	T246998	1	Plate	-
18	T246999	1	Cover	-
19	30M7014	1	Plug	52 mm
20	T169055	1	Cover	-

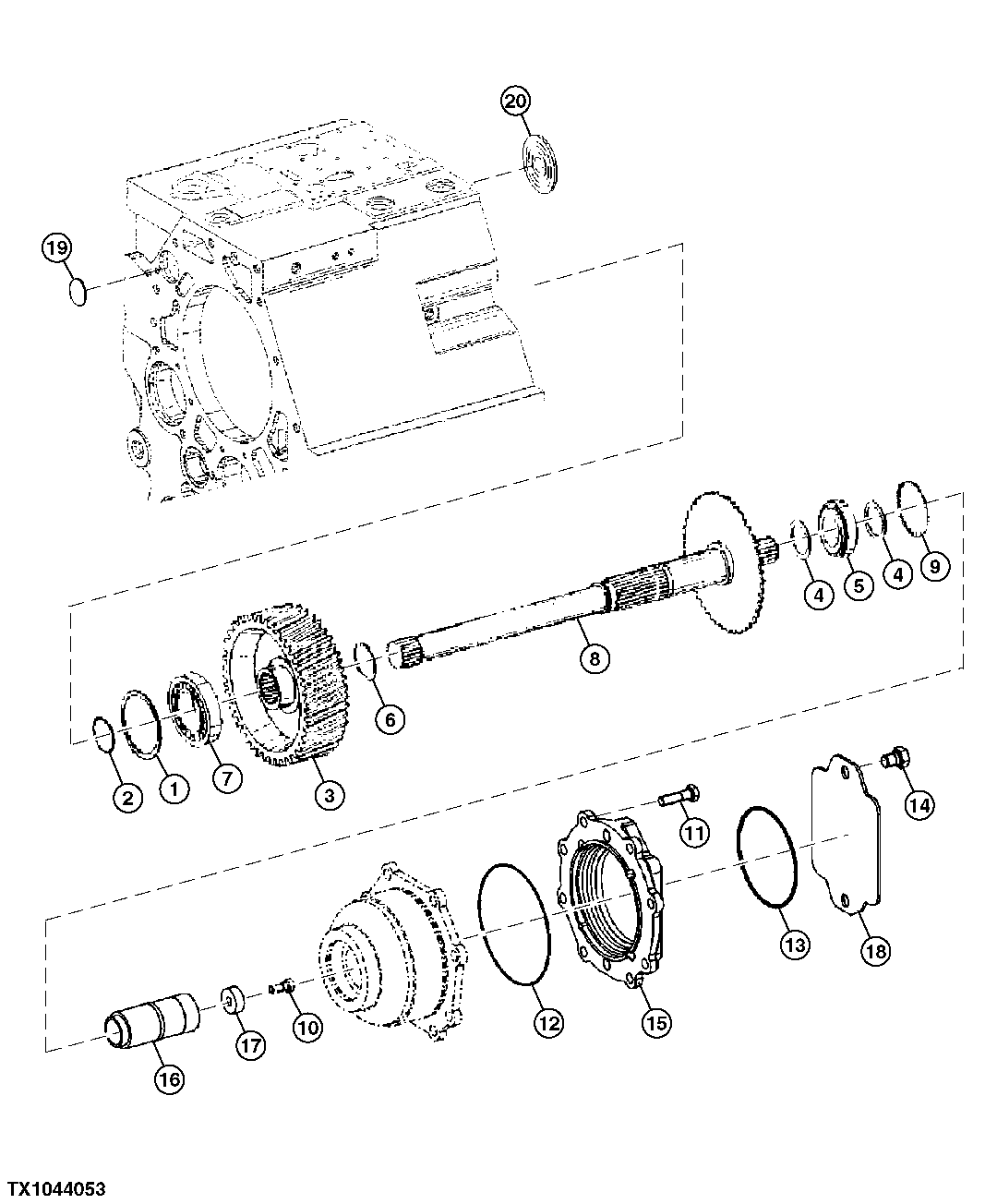

Power Takeoff (without Lock-up Torque Converter)
