Открытый узел

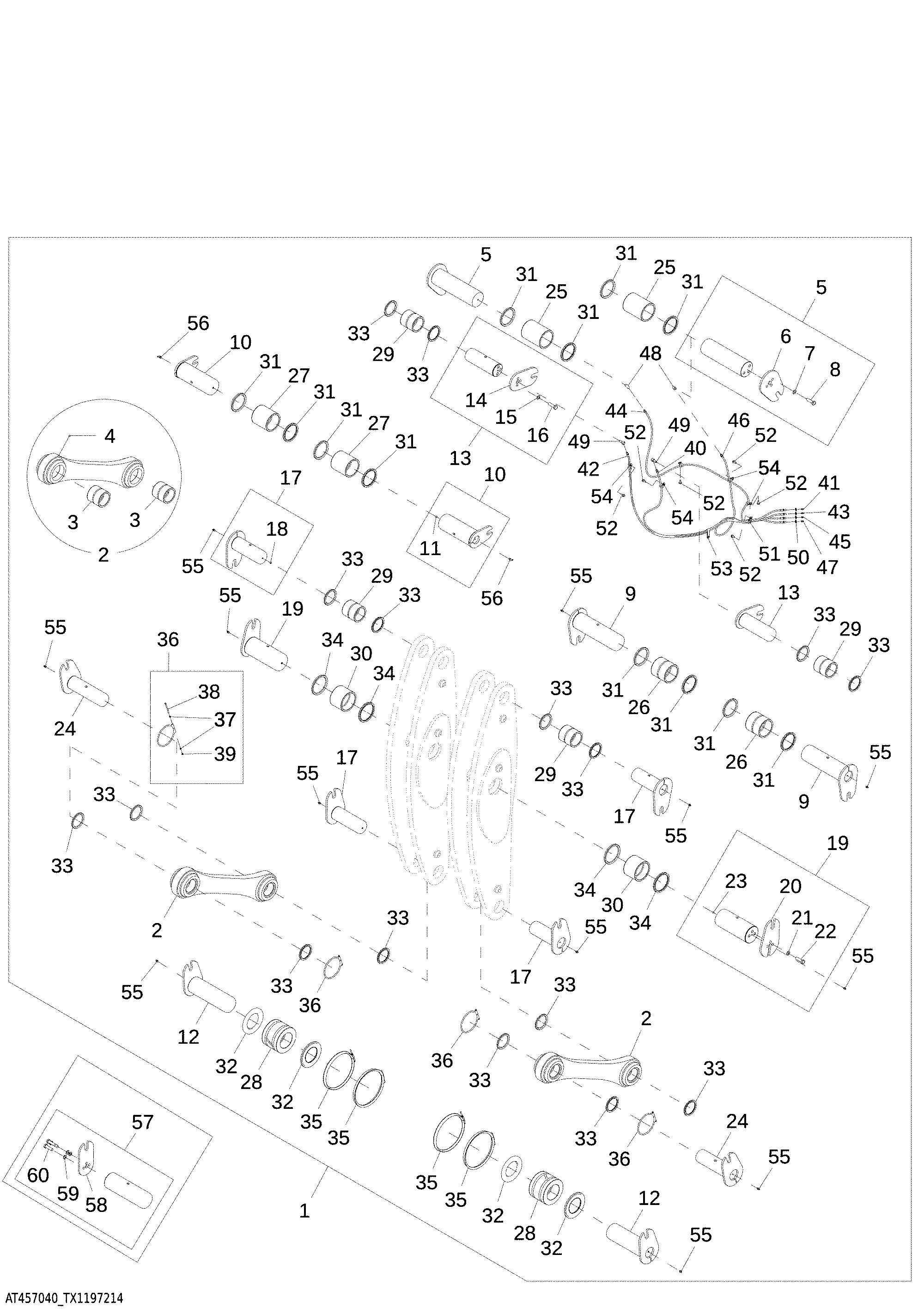

Nevergrease™ to Greased Linkage Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT457040	1	Pin, Seal & Bushing Kit	WHOLE GOODS
2	AT440686	2	Link	INCLUDES T224791 AND 15H558
3	T224791	2	Bushing	-
4	15H558	2	Pipe Plug	1/8"
5	AT353860	2	Pin Fastener	INCLUDES (3) 19M8295, (3) 24M7097 AND T228237
6	T228237	2	Plate	-
7	24M7097	6	Washer	17 X 28 X 2.500 mm
8	19M8295	6	Cap Screw	M16 X 55
9	AT325851	2	Pin Fastener	-
10	AT442122	2	Pin Fastener	SUB FOR AT325875
11	15H558	2	Pipe Plug	1/8"
12	AT469983	2	Pin	-
13	AT353855	2	Pin Fastener	INCLUDES (3) 19M8295, (3) 24M7097 AND T242247
14	T242247	2	Plate	-
15	24M7097	6	Washer	17 X 28 X 2.500 mm
16	19M8295	6	Cap Screw	M16 X 55
17	AT468203	4	Pin Fastener	SUB FOR AT330515
18	15H558	4	Pipe Plug	1/8"
19	AT442066	2	Pin Fastener	SUB FOR AT396780; INCLUDES (3) 19M8295, (3) 24M7097 AND T289794
20	T289794	2	Retainer	-
21	24M7097	6	Washer	17 X 28 X 2.500 mm
22	19M8295	6	Cap Screw	M16 X 55
23	15H558	2	Pipe Plug	1/8"
24	AT333721	2	Pin	NLA; ORDER AT467524
24	AT467524	2	Pin	-
25	T228506	2	Bushing	-
26	T225134	2	Bushing	-
27	T225131	2	Bushing	-
28	T424672	2	Bushing	-
29	T224794	4	Bushing	-
30	T225133	2	Bushing	-
31	T352831	12	Seal	-
32	T352836	4	Seal	-
33	T352828	16	Seal	-
34	T352837	4	Seal	-
35	AT341093	4	Seal	-
36	AT415857	4	Ring	INCLUDES 14M7572, 19M9304 AND 24M7027
37	24M7027	8	Washer	5.300 X 10 X 1 mm
38	19M9304	4	Cap Screw	M5 X 90
39	14M7572	4	Lock Nut	M5
40	AT313932	1	Hydraulic Hose	-
41	JD7797	1	Lubrication Fitting	-
42	AT313932	1	Hydraulic Hose	-
43	JD7797	1	Lubrication Fitting	-
44	AT313932	1	Hydraulic Hose	-
45	JD7797	1	Lubrication Fitting	-
46	AT307996	1	Hydraulic Hose	-
47	JD7797	1	Lubrication Fitting	-
48	T56112	2	Elbow Fitting	-
49	E53801	2	Elbow Fitting	-
50	E12379	4	Nut	-
51	T74416	1	Clamp	-
52	19M7865	7	Screw	M8 X 16
53	KV24327	1	Clamp	-
54	T78974	6	Clamp	-
55	JD7759	12	Lubrication Fitting	-
56	JD7763	2	Lubrication Fitting	-
57	AT353856	2	Pin	NLA; ORDER AT469983; INCLUDES (3) 19M8295, (3) 24M7097 AND T242247
58	T242247	2	Plate	-
59	24M7097	6	Washer	17 X 28 X 2.500 mm
60	19M8295	6	Cap Screw	M16 X 55

Nevergrease™ to Greased Linkage Conversion Kit

Нет текстового описания
