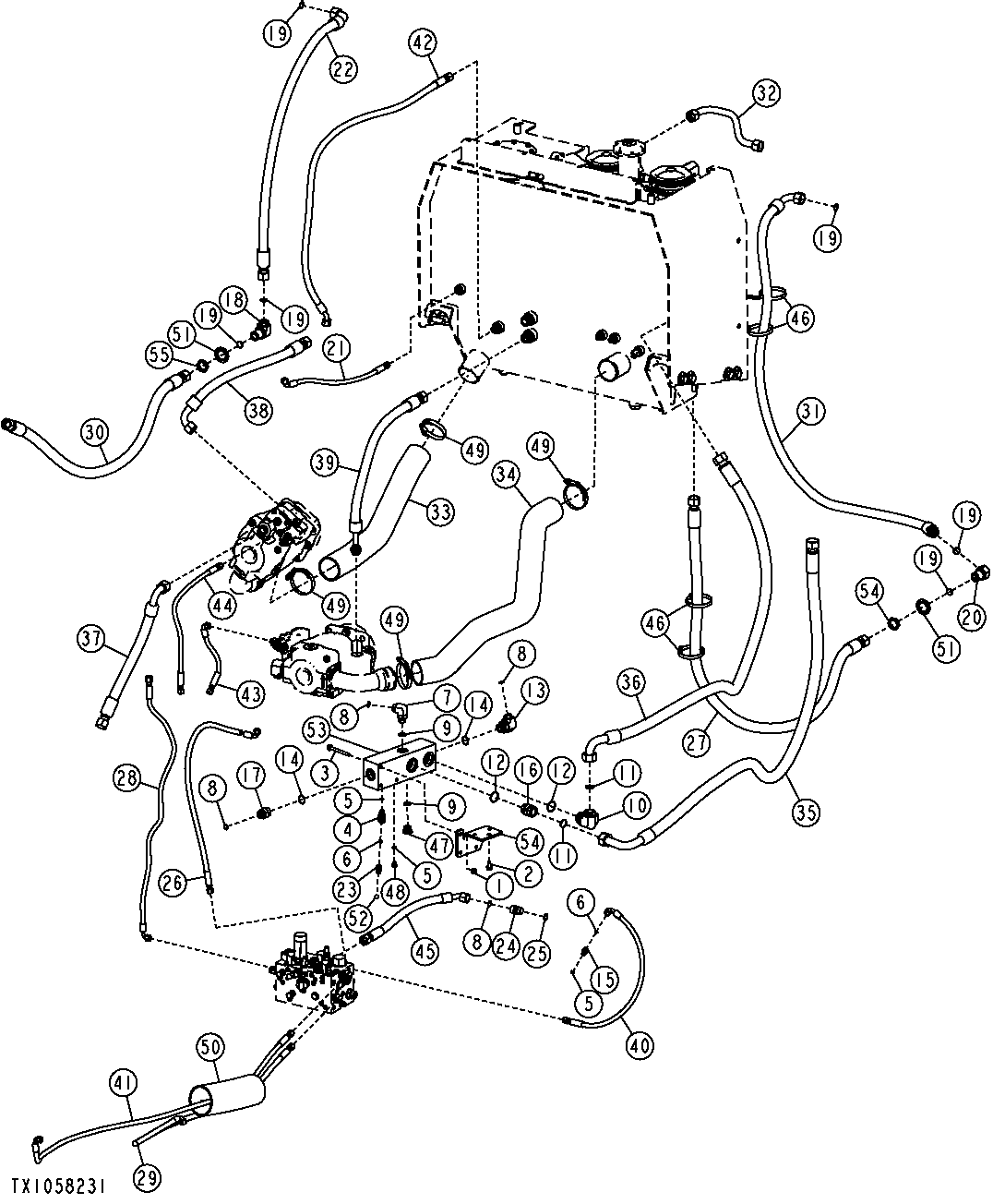

Main Hydraulic Lines ( - 627831)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	3	Flange Nut	M10
2	19M7785	3	Screw	M10 X 25
3	19M7836	3	Screw	M10 X 110
4	38H1004	1	Elbow Fitting	-
5	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	38H1007	1	Elbow Fitting	-
8	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	38H1008	1	Elbow Fitting	-
11	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
12	U13639	2	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
13	38H1052	1	Elbow Fitting	-
14	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
15	38H1160	1	Adapter Fitting	-
16	38H1165	1	Adapter Fitting	-
17	38H1194	1	Adapter Fitting	-
18	38H1456	1	Elbow Fitting	-
19	T76938	6	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
20	38H1536	1	Elbow Fitting	-
21	AT336761	1	Hydraulic Hose	17.4752" X 609 mm (24") X 17.4752", Fabricate
22	AT311617	1	Hydraulic Hose	36.5252" X 1325 mm (52-1/4") X 36.5252"
23	AT320593	1	Fitting	-
24	T168064	1	Adapter Fitting	-
25	L150867	1	O-Ring	23 X 2 mm (29/32" X 0.079"), SUB FOR T24210
26	AT340274	1	Hydraulic Hose	17.4752" X 1189 mm (46-3/4") X 17.4752"
27	AT340374	1	Hydraulic Hose	36.5252" X 2108 mm (83") X 36.5252", Fabricate
28	AT341054	1	Hydraulic Hose	13/16" X 1150 mm (45-1/4") X 17.4752", Fabricate
29	AT345345	1	Hydraulic Hose	17.4752" X 1320 mm (52") X 17.4752", Fabricate, (SUB FOR AT365861)
30	AT349533	1	Hydraulic Hose	36.5252" X 1447 mm (57") X 36.5252", Fabricate
31	AT349774	1	Hydraulic Hose	36.5252" X 2133 mm (84") X 36.5252", Fabricate
32	AT350669	1	Oil Line	-
33	AT361227	1	Suction Hose	-
34	AT361230	1	Suction Hose	-
35	AT361431	1	Hydraulic Hose	42.8752" X 2396 mm (94-1/4") X 42.8752", Fabricate
36	AT361432	1	Hydraulic Hose	42.8752" X 2283 mm (90") X 42.8752", Fabricate
37	AT362064	1	Hydraulic Hose	36.5252" X 709 mm (28") X 36.5252", Fabricate
38	AT362065	1	Hydraulic Hose	36.5252" X 724 mm (28-1/2") X 36.5252", Fabricate
39	AT362066	1	Hydraulic Hose	36.5252" X 1060 mm (41-3/4") X 30.1752", Fabricate
40	AT362173	1	Hydraulic Hose	17.4752" X 810 mm (32") X 17.4752", Fabricate
41	AT362195	1	Hydraulic Hose	17.4752" X 1800 mm (70-3/4") X 17.4752", Fabricate
42	AT362199	1	Hydraulic Hose	1" X 1580 mm (62-1/4") X 1", Fabricate
43	AT362202	1	Hydraulic Hose	17.4752" X 340 mm (13-1/2") X 17.4752", Fabricate
44	AT362207	1	Hydraulic Hose	17.4752" X 750 mm (29-1/2") X 17.4752", Fabricate
45	AT363576	1	Hydraulic Hose	30.1752" X 584 mm (23") X 30.1752", Fabricate
46	N189220	4	Tie Band	-
47	R27175	1	Drain Plug	-
48	R27218	1	Fitting Plug	-
49	RE56859	4	Clamp	-
50	T188182	1	Hose Guard	-
51	T216836	2	Lock Washer	38.100 mm (1-1/2")
52	T217792	1	Label	Hydraulic Oil
53	T242077	1	Manifold	-
54	T249291	1	Bracket	-
55	T78715	2	Nut	36.525 mm (1-7/16")
