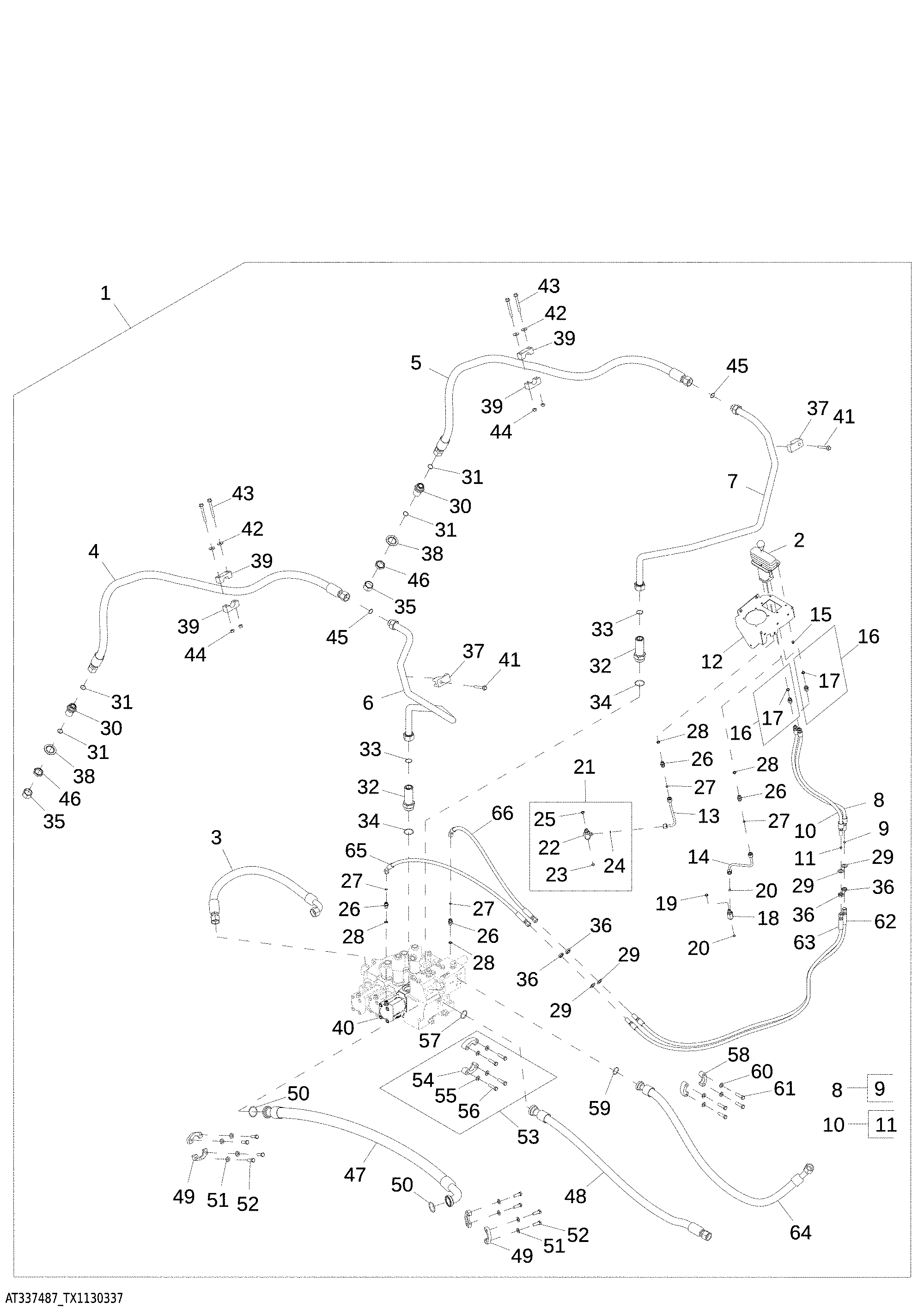

Joystick To Joystick with Auxiliary Lever Conversion Kit ( - 662429)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207984	3	Rod	Stud Assembly for 3-Spool Control Valve Not Illustrated, INCLUDES (2) 810000500 AND (2) T170067
1	AT337487	1	Hose Kit	Whole Goods
1	AT210105	1	Seal Kit	Interface Seal Kit Not Illustrated
1	810000500	2	WASHER*5/8	-
1	T170067	2	Nut	-
2	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Single Lever Controller Components On Separate Page
3	AT322737	1	Hydraulic Hose	Fabricate
4	AT322754	1	Hydraulic Hose	Fabricate
5	AT322754	1	Hydraulic Hose	Fabricate
6	AT330023	1	Oil Line	-
7	AT330024	1	Oil Line	-
8	AT336507	1	Hydraulic Hose	Fabricate
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	AT336507	1	Hydraulic Hose	Fabricate
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	AT341527	1	Plate	-
13	AT342616	1	Oil Line	-
14	AT340873	1	Hydraulic Hose	Fabricate
15	14M7397	4	Lock Nut	M6
16	62H1001	2	Adapter Fitting	SUB FOR 63H1001
17	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	38H1023	1	Tee Fitting	-
19	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
20	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	61H1642	1	Adapter Fitting	-
22	38H1642	1	Adapter Fitting	-
23	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
24	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
25	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	38H1160	4	Adapter Fitting	-
27	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
29	12H327	4	Lock Washer	3/4"
30	38H1287	2	Adapter Fitting	-
31	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
32	38H1615	2	Adapter Fitting	-
33	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
34	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
35	38H1419	2	Fitting	-
36	T81029	4	Nut	-
37	T104355	2	Clamp	-
38	T216836	2	Lock Washer	38.100 mm (1-1/2")
39	T67995	4	Clamp	-
40	AT312731	1	Flow Control Hyd. Valve	Auxiliary Valve Section Components On Separate Page
41	19M9128	2	Screw	M10 X 75
42	24M7296	4	Washer	10.500 X 30 X 2.500 mm
43	19M7811	4	Screw	M10 X 90
44	14M7296	4	Flange Nut	M10
45	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
46	T78715	2	Nut	36.525 mm (1-7/16")
47	AT438993	1	Hydraulic Hose	Fabricate
48	AT438992	1	Hydraulic Hose	Fabricate
49	X51H-24	2	Flange Fitting	-
50	T34248	2	O-Ring	47.219 X 3.531 mm (1-55/64" X 0.139")
50	T34248	1	O-Ring	47.219 X 3.531 mm (1-55/64" X 0.139")
51	24M7240	4	Washer	13 X 25 X 3 mm
52	19M7403	4	Cap Screw	M12 X 35
53	AT390184	1	Fitting Kit	-
54	AT131685	2	Flange Fitting	-
55	24M7240	4	Washer	13 X 25 X 3 mm
56	19M7496	4	Cap Screw	M12 X 45
57	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
58	T107068	2	Flange Fitting	-
59	T78313	1	O-Ring	32.918 X 3.531 mm (1.296" X 0.139")
60	24M7240	4	Washer	13 X 25 X 3 mm
61	19M7496	4	Cap Screw	M12 X 45
62	AT460756	1	Hydraulic Hose	Fabricate
63	AT460756	1	Hydraulic Hose	Fabricate
64	AT438991	1	Hydraulic Hose	Fabricate
65	AT323706	1	Hydraulic Hose	Fabricate
66	AT323706	1	Hydraulic Hose	Fabricate
