№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT341527	1	Plate	-
2	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Control Lever Components On Separate Page
3	14M7397	4	Lock Nut	M6, SUB FOR 14M7592
4	AT362747	1	Hydr./Pilot Control Valve	Joystick Controller Components On Separate Page, ORDER AT488660
4	AT488660	1	Hydr./Pilot Control Valve	-
5	19M9831	4	Screw	M6 X 16
6	38H1023	1	Tee Fitting	-
7	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	38H1023	1	Tee Fitting	-
9	38H1642	1	Adapter Fitting	-
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
13	38H1160	2	Adapter Fitting	-
14	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	62H1001	6	Adapter Fitting	SUB FOR 63H1001
17	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	AT344124	1	Hydraulic Hose	Fabricate
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	AT344125	1	Hydraulic Hose	Fabricate
20	AT363800	1	Hydraulic Hose	Fabricate
21	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	AT336507	1	Hydraulic Hose	Fabricate
23	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	AT336507	1	Hydraulic Hose	Fabricate
25	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	AT336507	1	Hydraulic Hose	Fabricate
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	AT336507	1	Hydraulic Hose	Fabricate
29	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	AT336507	1	Hydraulic Hose	Fabricate
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	AT336507	1	Hydraulic Hose	Fabricate
33	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
34	AT342617	1	Oil Line	-
35	AT342616	1	Oil Line	-
36	T81029	7	Nut	17.475 mm (11/16")
37	T78716	1	Nut	20.625 mm (13/16")
38	T203670	1	Label	Joystick Controls
39	AT352891	1	Plate	-
40	19M7868	2	Screw	M8 X 30
41	T125994	2	Plug	-
42	T196079	2	Nut	M8
43	T230554	1	Conduit	-
44	-	1	Part 48	MAKE FROM T66419, CTL 670.56 mm (2.2 ft)
45	12H328	1	Lock Washer	7/8"
46	12H327	7	Lock Washer	3/4"
47	R44302	1	Tie Band	-
48	T212304	1	Tool	STC Release Tool

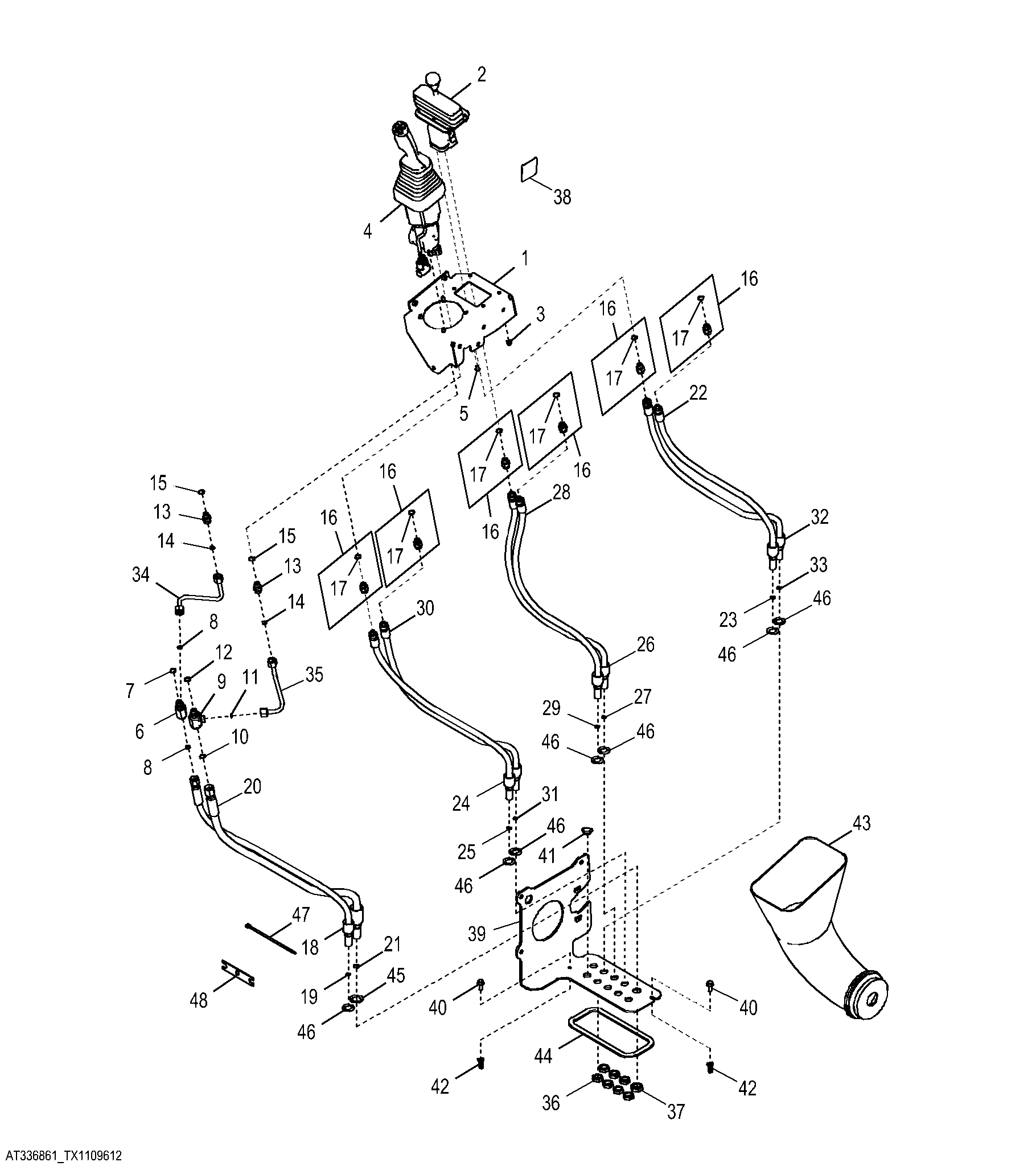

Joystick Pilot Controller and Auxiliary Control Lever
