Full Coverage Front and Rear Fenders ( - 653128)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT321096	1	Hinge	-
2	24M7242	1	Washer	21.400 X 42 X 5 mm
3	AT321097	1	Hinge	-
4	AT321095	1	Support	-
5	AT321098	1	Bracket	-
6	T230522	1	Fender	-
7	T279482	1	Splash Guards	-
8	AT322382	1	Latch	-
9	T214949	1	Pad	-
10	R214344	6	Clamp	-
11	24M7296	17	Washer	10.500 X 30 X 2.500 mm
12	14M7400	17	Lock Nut	M10
13	19M7835	27	Screw	M10 X 35
14	T215604	1	Rod	-
15	14M7401	1	Lock Nut	M12
16	03M7290	2	Bolt	M6 X 30
17	14M7397	8	Lock Nut	M6
18	19M7833	6	Screw	M6 X 35
19	T215884	1	Support	-
20	AT219974	1	Bumper	-
21	14M7296	11	Flange Nut	M10
22	14M7152	1	Nut	M10
23	24M7239	10	Washer	10.700 X 21 X 2.500 mm
24	AT395492	1	Bracket	SUB FOR AT371018
25	AT395493	1	Bracket	SUB FOR AT371019
26	T215083	1	Fender	-
27	T215508	3	Bracket	-
28	T22381	20	Washer	-
29	T218091	2	Bracket	-
30	24M7296	23	Washer	10.500 X 30 X 2.500 mm
31	19M7805	18	Screw	M10 X 45, SUB FOR 19M7804
32	14M7400	23	Lock Nut	M10
33	T279483	1	Splash Guards	-
34	19M7835	5	Screw	M10 X 35
35	T215676	1	Plate	-
36	AT301711	2	Striker	-
37	14M7401	10	Lock Nut	M12
38	AT323116	1	Hinge	-
39	24M7242	1	Washer	21.400 X 42 X 5 mm
40	AT323117	1	Hinge	-
41	AT321095	1	Support	-
42	AT323118	1	Bracket	-
43	T230523	1	Fender	-
44	T279482	1	Splash Guards	-
45	AT322383	1	Latch	-
46	T214949	1	Pad	-
47	R214344	6	Clamp	-
48	24M7296	17	Washer	10.500 X 30 X 2.500 mm
49	14M7400	17	Lock Nut	M10
50	19M7835	27	Screw	M10 X 35
51	T215604	1	Rod	-
52	14M7401	1	Lock Nut	M12
53	03M7290	2	Bolt	M6 X 30
54	14M7397	8	Lock Nut	M6
55	19M7833	6	Screw	M6 X 35
56	T215884	1	Support	-
57	AT219974	1	Bumper	-
58	14M7296	11	Flange Nut	M10
59	14M7152	1	Nut	M10
60	24M7239	10	Washer	10.700 X 21 X 2.500 mm
61	T216226	1	Fender	-
62	T215508	3	Bracket	-
63	T218091	2	Bracket	-
64	T22381	20	Washer	-
65	24M7296	23	Washer	10.500 X 30 X 2.500 mm
66	19M7805	18	Screw	M10 X 45, SUB FOR 19M7804
67	14M7400	23	Lock Nut	M10
68	T279483	1	Splash Guards	-
69	19M7835	5	Screw	M10 X 35
70	T215676	1	Plate	-
71	T178063	14	Washer	-
72	19M7790	8	Screw	M12 X 35
73	19M7788	6	Screw	M12 X 25
74	T209649	1	Plate	-
75	T216861	1	Splash Guards	LH
76	24M7296	8	Washer	10.500 X 30 X 2.500 mm
77	19M7786	12	Screw	M10 X 30
78	14M7400	12	Lock Nut	M10
79	T173779	4	Strap	-
80	19M7812	4	Screw	M10 X 100
81	T147891	4	Bushing	-
82	T209797	1	Plate	-
83	T216862	1	Splash Guards	RH
84	T209699	1	Plate	-
85	19M7835	2	Screw	M10 X 35
86	19M7789	6	Screw	M12 X 30
87	T288776	1	Plate	SUB FOR T259381
88	T288778	1	Plate	SUB FOR T259384
89	19M7866	4	Screw	M8 X 20
90	AT395492	1	Bracket	-
91	14M7233	2	Weld Nut	M8
92	AT395493	1	Bracket	-
93	14M7233	2	Weld Nut	M8
94	T288776	1	Plate	-
95	T288778	1	Plate	-

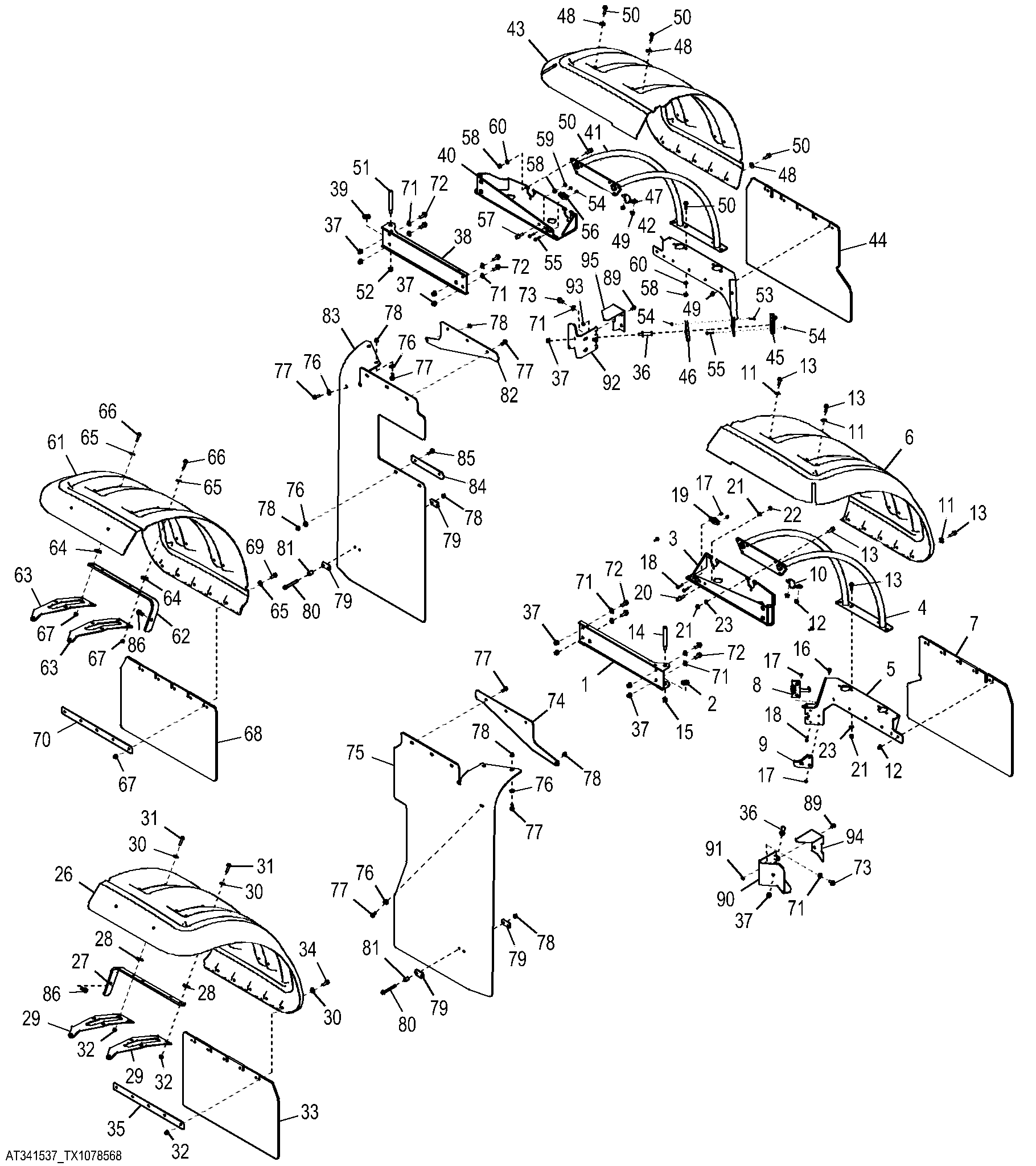

Full Coverage Front and Rear Fenders ( - 653128)
