Cooling System (Engine 6135HDW03-RE539004)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

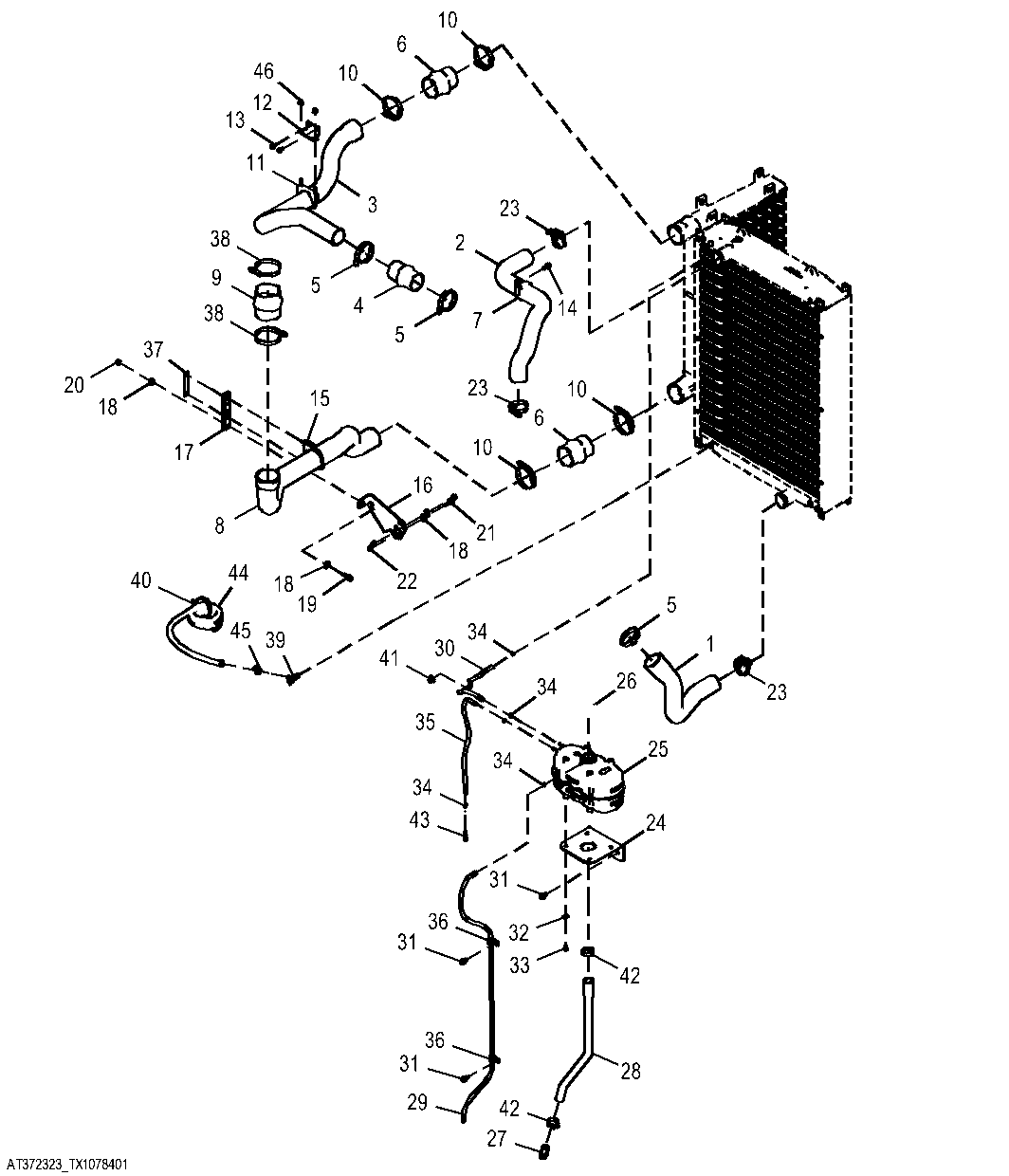

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T239201	1	Radiator Hose	Lower Radiator Hose
2	T239200	1	Radiator Hose	Upper Radiator Hose
3	T260788	1	Tube	Upper Charge Air Cooler Hose
4	R164193	1	Hose	-
5	RE52702	3	Clamp	-
6	T179288	2	Compressed Air Hose	-
7	T162575	1	Clamp	-
8	T261288	1	Tube	Lower Charge Air Cooler Hose
9	T179289	1	Compressed Air Hose	-
10	RE56859	4	Clamp	-
11	AN276328	1	Clamp	-
12	T213531	1	Bracket	-
13	19M7866	2	Screw	M8 X 20
14	19M7785	1	Screw	M10 X 25
15	AT116380	1	Clamp	-
16	T295656	1	Bracket	SUB FOR T229894
17	T182578	1	Support	-
18	24M7296	4	Washer	10.500 X 30 X 2.500 mm
19	19M7804	1	Screw	M10 X 40
20	14M7400	1	Lock Nut	M10
21	19M7835	2	Screw	M10 X 35
22	14M7296	2	Flange Nut	M10
23	AH170895	3	Clamp	-
24	T227565	1	Plate	-
25	AT326151	1	Tank	-
26	AT310335	1	Filler Cap	-
26	AT372657	1	Filler Cap	-
27	T37796	1	Hose Fitting	-
28	T239239	1	Radiator Hose	-
29	-	1	Part 30	MAKE FROM TY22324, CTL 5.5 ft.
30	-	1	Part 31	MAKE FROM TY22324, CTL 2.1 ft.
31	19M7784	5	Screw	M10 X 20
32	24M7298	4	Washer	8.400 X 25 X 2 mm
33	19M7865	4	Screw	M8 X 16
34	TY22462	5	Clamp	-
35	-	1	Part 36	MAKE FROM TY22324, CTL 1.9 ft.
36	T74416	2	Clamp	-
37	T181182	1	Strap	-
38	RE52703	2	Hose Clamp	-
39	AT35831	1	Drain Valve	-
40	N189220	1	Tie Band	-
41	R76454	1	Grommet	-
42	AR21839	2	Clamp	-
43	R162917	1	Hose Fitting	-
44	-	1	Part 45	MAKE FROM TY22328, CTL 5.1 ft.
45	AR21837	1	Clamp	-
46	14M7518	2	Flange Nut	M10
