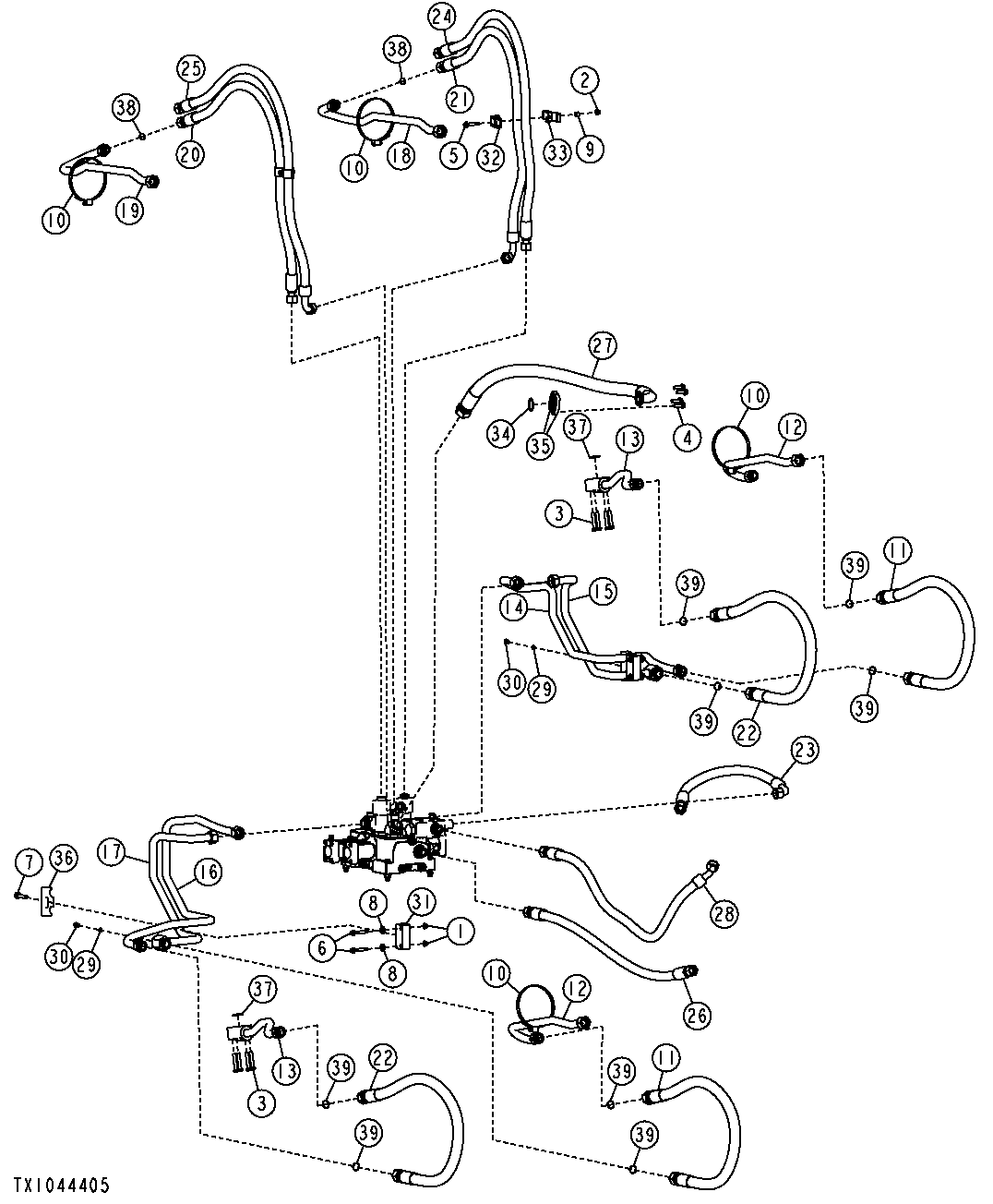

Boom and Bucket Cylinder Hydraulics for 2-Spool Control Valve (Z-Bar) ( - 662427)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	4	Flange Nut	M10
2	14M7400	2	Lock Nut	M10
3	19H3057	8	Cap Screw	1/2" X 2-3/4"
4	19M7790	4	Screw	M12 X 35
5	19M7808	2	Screw	M10 X 65
6	19M8114	4	Screw	M10 X 70, (SUB FOR 19M7809)
7	19M7816	2	Screw	M12 X 65
8	24M7296	4	Washer	10.500 X 30 X 2.500 mm
9	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
10	AH130230	4	Hose Clamp	-
11	AT203018	2	Hydraulic Hose	Boom Cylinder, Extend
12	AT203027	2	Oil Line	-
13	AT203028	2	Oil Line	-
14	AT322316	1	Oil Line	-
15	AT322317	1	Oil Line	-
16	AT322318	1	Oil Line	-
17	AT322319	1	Oil Line	-
18	AT322513	1	Oil Line	-
19	AT322514	1	Oil Line	-
20	AT322549	1	Hydraulic Hose	LH Bucket Cylinder, Extend
21	AT322550	1	Hydraulic Hose	RH Bucket Cylinder, Extend
22	AT322732	2	Hydraulic Hose	Boom Cylinder, Retract
23	AT322736	1	Hydraulic Hose	Split Flow Manifold to Control Valve
24	AT330043	1	Hydraulic Hose	RH Bucket Cylinder, Retract
25	AT330044	1	Hydraulic Hose	LH Bucket Cylinder, Retract
26	AT349064	1	Hydraulic Hose	Main Hydraulic Pump Manifold to Control Valve
27	AT361301	1	Hydraulic Hose	Control valve to Manifold
28	AT361304	1	Hydraulic Hose	Pump to Split Flow Manifold
29	R26448	2	O-Ring	-
30	R27218	2	Fitting Plug	-
31	T156738	2	Clamp	-
32	T159956	2	Clamp	-
33	T209726	2	Half Clamp	-
34	T34248	1	O-Ring	-
35	X51H-24	2	Flange Fitting	-
36	T52979	2	Clamp	-
37	T72216	2	O-Ring	-
38	T76938	2	O-Ring	-
39	T78612	8	O-Ring	-

Boom and Bucket Cylinder Hydraulics for 2-Spool Control Valve (Z-Bar) ( - 662427)
