3-Lever Controller to Joystick with Auxiliary Control Lever Conversion Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT337447	1	Lever Kit	WHOLE GOODS
2	AT341527	1	Plate	-
3	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Control Lever Components on Separate Page
4	AT362746	1	Hydr./Pilot Control Valve	Joystick Controller with FNR Switch Components on Separate Page, ORDER AT488662
4	AT488662	1	Hydr./Pilot Control Valve	Joystick Controller with FNR Switch Components on Separate Page
5	38H1642	1	Adapter Fitting	-
6	T77857	1	O-Ring	-
7	T77613	1	O-Ring	-
8	R26448	1	O-Ring	-
9	38H1160	2	Adapter Fitting	-
10	T77613	2	O-Ring	-
11	R26448	2	O-Ring	-
12	AT342616	1	Oil Line	Press to Press
13	38H1023	1	Tee Fitting	-
14	R26448	1	O-Ring	-
15	T77613	2	O-Ring	-
16	AT300921	1	Clamp	-
17	21M7258	1	Screw	M4 X 8
18	AT342617	1	Oil Line	Tank to Tank
19	AT344124	1	Hydraulic Hose	Fabricate, INCLUDES T77613
20	T77613	1	O-Ring	-
21	AT363800	1	Hydraulic Hose	Fabricate, INCLUDES T77857
22	T77857	1	O-Ring	-
23	AT336507	6	Hydraulic Hose	Fabricate, INCLUDES T77613
23	T77613	1	O-Ring	-
24	T197182	1	Label	Joystick Controls with Joystick FNR
25	T203670	1	Label	Joystick Control Without FNR
26	AT442732	1	Cover	INCLUDES T350325 AND T350326
26	T350325	1	Cover	Upper Steering Column
26	T350326	1	Cover	Upper Steering Column
27	T242089	1	Cover	-
28	19M9831	4	Screw	M6 X 16

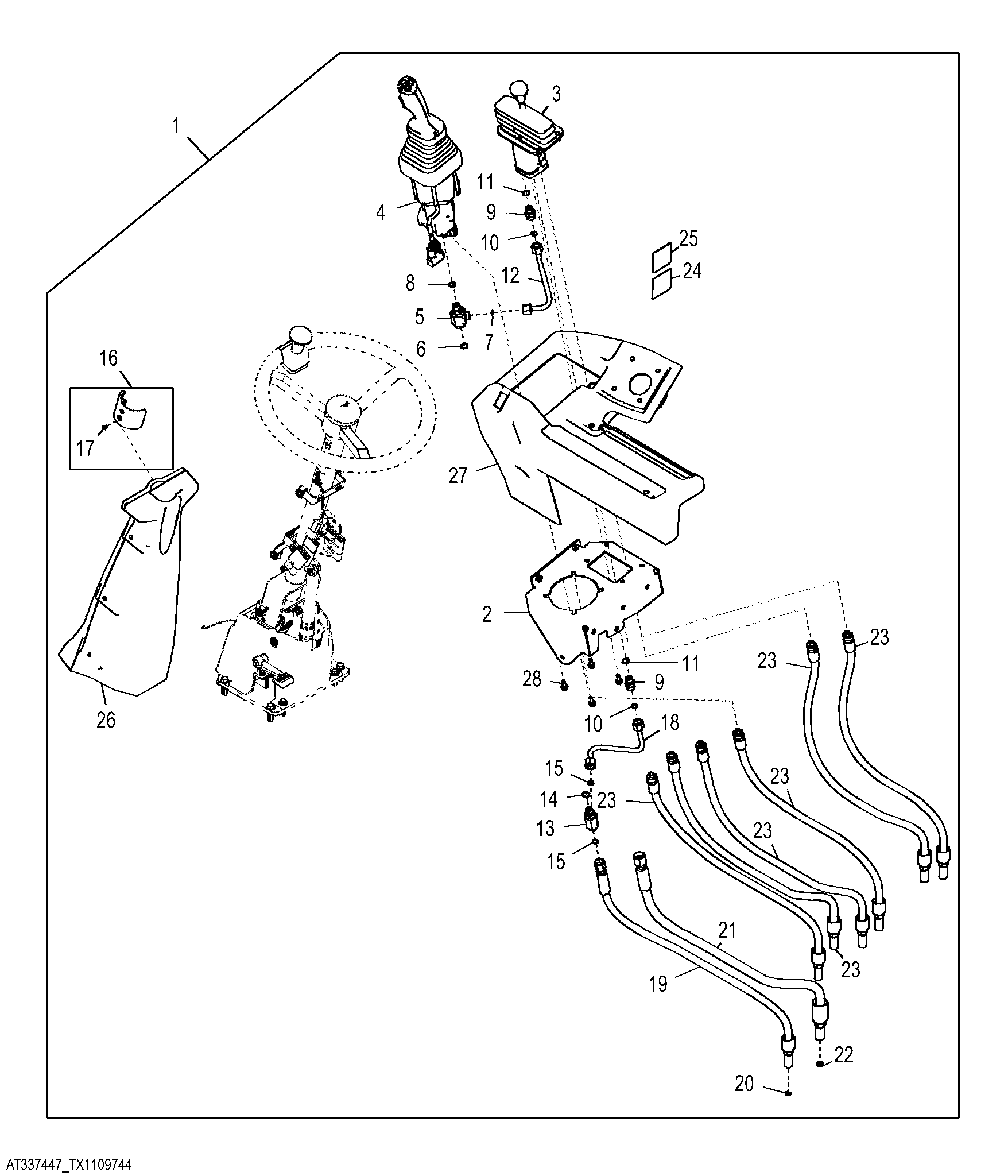

3-Lever Controller to Joystick with Auxiliary Control Lever Conversion Kit
