Открытый узел

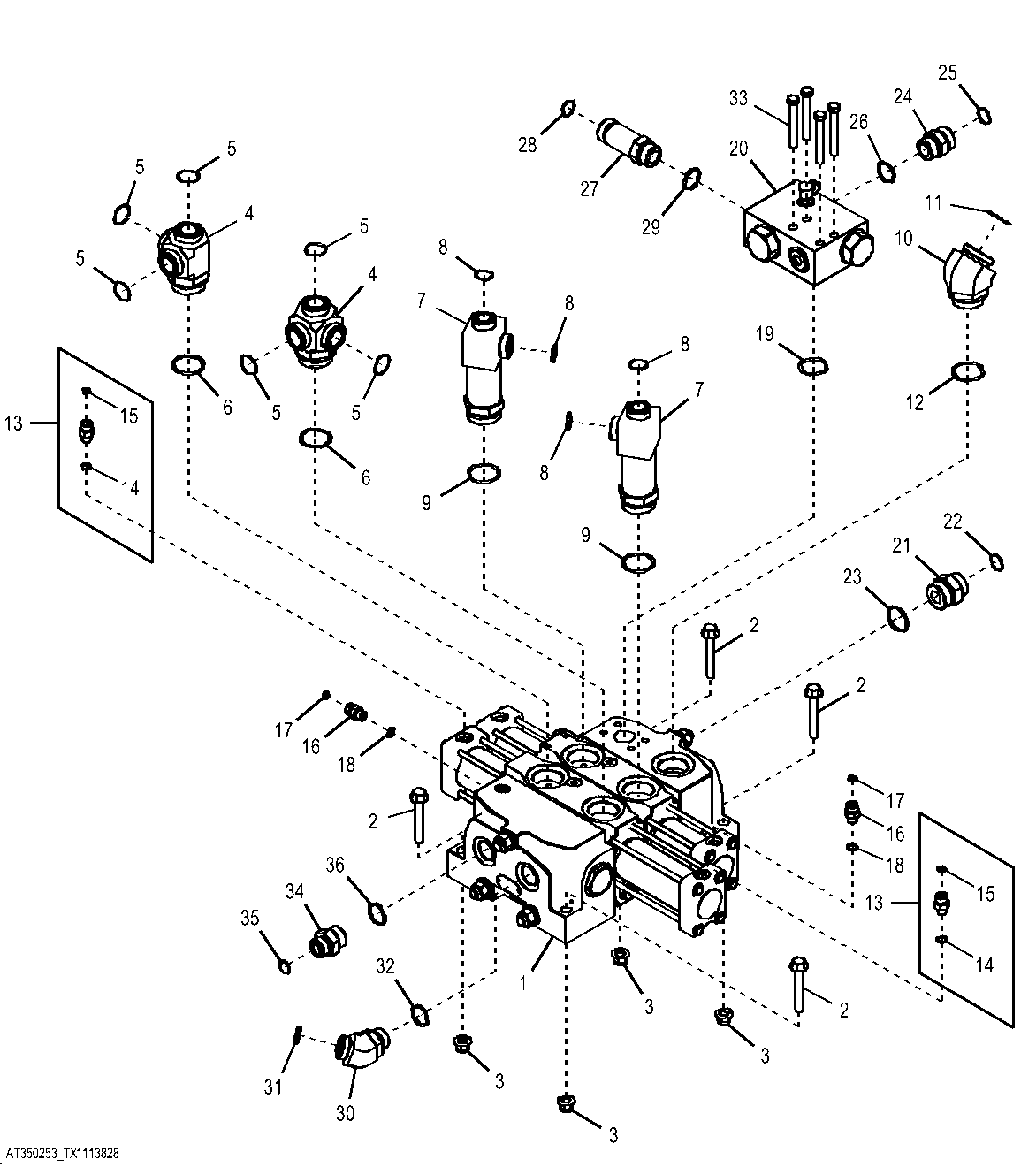

2-Spool Loader Control Valve ( - 662427)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT386461	1	Hyd Actuated Control Valve	Control Valve Assembly
1	AT309300	1	Hyd Actuated Control Valve	Control Valve Assembly, NLA; ORDER AT386461
1	AT386462	1	Housing	Outlet Valve Section Components On Separate Page
1	AT312737	1	Housing	Outlet Valve Section, NLA; ORDER AT386462
1	AT312736	1	Flow Control Hyd. Valve	Boom Valve Section Components On Separate Page
1	AT312740	1	Housing	Inlet Valve Section Components On Separate Page
1	AT210105	1	Seal Kit	Interface Seal Kit
1	AT207983	3	Rod	Stud Assembly for 2-Spool Control Valve
1	AT312732	1	Flow Control Hyd. Valve	Bucket Valve Section Components On Separate Page
2	19M7818	4	Screw	M12 X 80
3	14M7401	4	Lock Nut	M12
4	AT313546	2	Elbow Fitting	-
5	T78612	6	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
6	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
7	AT313551	2	Fitting	-
8	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
9	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
10	38H1106	1	Elbow Fitting	-
11	T78784	1	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
12	R26773	1	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
13	AT181313	2	Check Valve	-
14	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	38H1160	2	Adapter Fitting	-
17	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
20	AT313407	1	Manifold	Split Flow Manifold Components On Separate Page
21	38H1180	1	Adapter Fitting	-
22	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
23	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
24	38H1164	1	Adapter Fitting	-
25	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
26	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
27	38H1216	1	Adapter Fitting	-
28	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
29	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
30	38H1049	1	Elbow Fitting	-
31	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
32	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
33	19H3206	4	Cap Screw	7/16" X 3-1/4"
34	38H1194	1	Adapter Fitting	-
35	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
36	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")

2-Spool Loader Control Valve ( - 662427)

Нет текстового описания
