№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207984	3	Rod	Three Spool Stud Assembly Not Illustrated, INCLUDES (2) 810000500 AND (2) T170067
1	AT447077	1	Hose Kit	Whole Goods, INCLUDES (3) AT207984
1	T170067	6	Nut	Not Illustrated
1	810000500	6	WASHER*5/8	Not Illustrated
2	AT228250	1	Hydr./Pilot Control Valve	Single Lever Controller Components On Seperate Page
3	AT322737	1	Hydraulic Hose	Fabricate
4	AT322754	1	Hydraulic Hose	Fabricate
5	AT322754	1	Hydraulic Hose	Fabricate
6	AT323706	1	Hydraulic Hose	-
7	AT323706	1	Hydraulic Hose	-
8	AT330023	1	Oil Line	-
9	AT330024	1	Oil Line	-
10	AT336507	1	Hydraulic Hose	Fabricate
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	AT336507	1	Hydraulic Hose	Fabricate
13	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	AT340873	1	Hydraulic Hose	Fabricate
15	AT340873	1	Hydraulic Hose	Fabricate
16	AT341527	1	Plate	-
17	AT342616	1	Oil Line	-
18	AT342617	1	Oil Line	-
19	AT362098	1	Hydraulic Hose	Fabricate
20	AT350447	1	Hydraulic Hose	Fabricate
21	AT362102	1	Hydraulic Hose	Fabricate
22	14M7397	4	Lock Nut	M6
23	63H1001	2	Fitting	-
24	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	38H1023	1	Tee Fitting	-
26	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
27	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	61H1642	1	Adapter Fitting	-
29	38H1642	1	Adapter Fitting	-
30	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
33	38H1160	4	Adapter Fitting	-
34	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
35	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
36	12H327	4	Lock Washer	3/4"
37	38H1285	2	Union Fitting	-
38	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
39	38H1287	2	Adapter Fitting	-
40	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
41	38H1615	2	Adapter Fitting	-
42	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
43	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
44	AT312731	1	Flow Control Hyd. Valve	Auxiliary Valve Section Components On Seperate Page
45	38H1419	2	Fitting	-
46	T81029	4	Nut	-
47	T104355	2	Clamp	-
48	T216836	2	Lock Washer	-
49	T67995	4	Clamp	-
50	19M9128	2	Screw	M10 X 75
51	24M7296	4	Washer	10.500 X 30 X 2.500 mm
52	19M7811	4	Screw	M10 X 90
53	14M7296	4	Flange Nut	M10
54	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
55	T78715	2	Nut	-

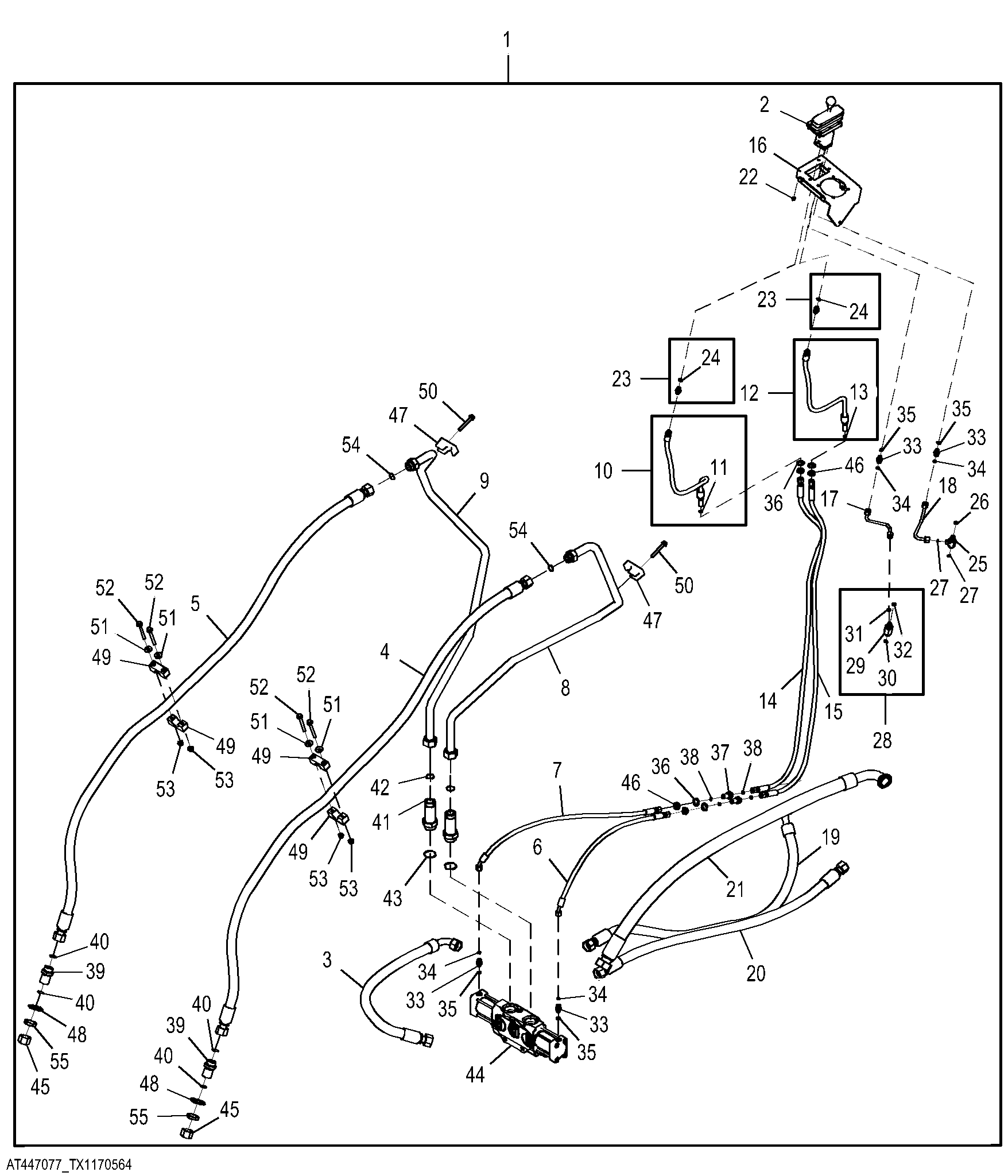

Joystick to Joystick and Auxiliary Control Lever Pilot Controller Conversion Kit
