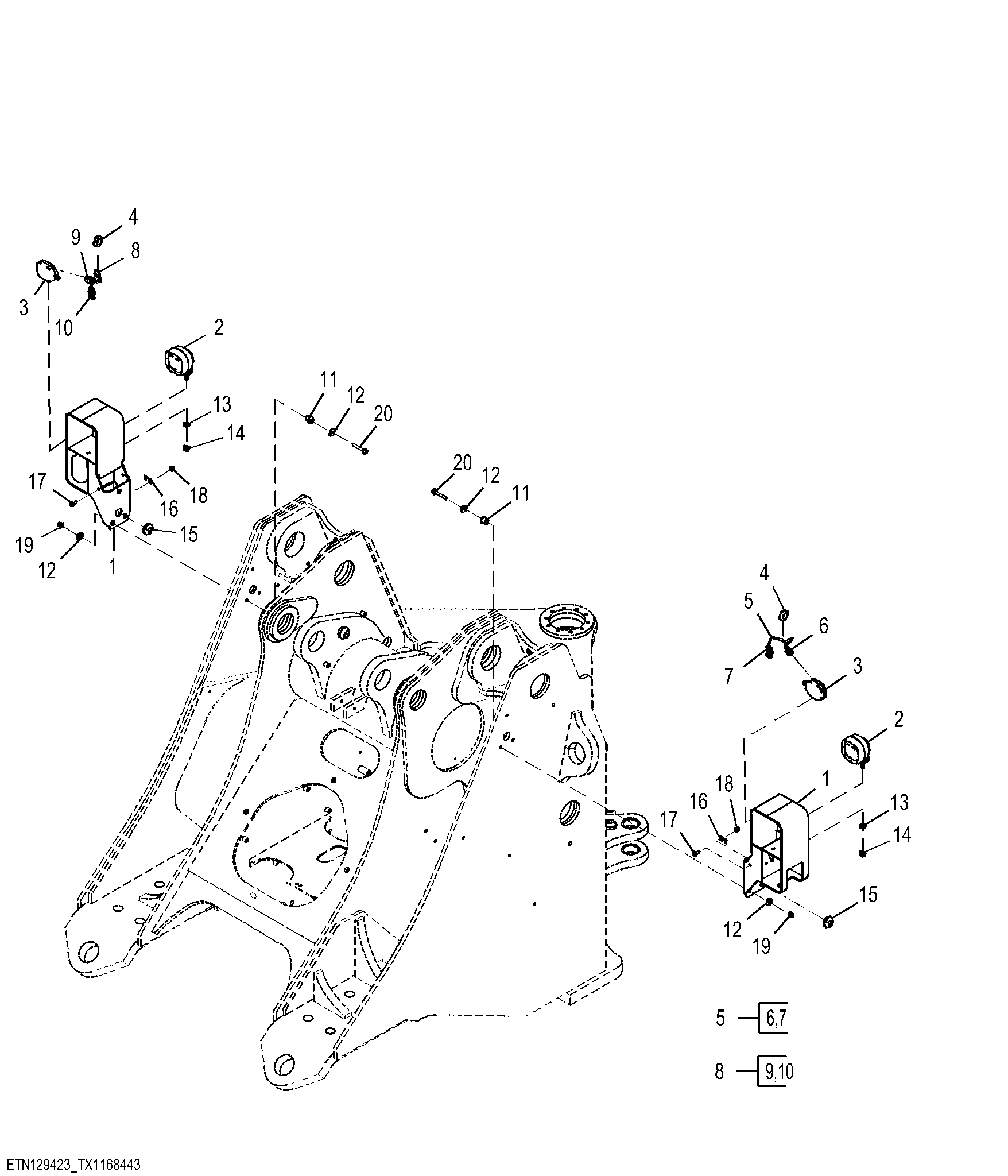

Driving Lights with LED Turn Signal and Marker Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT324440	2	Bracket	-
2	AT446759	2	Floodlamp	24 V
3	AT465217	2	Lamp	Front Turn / Marker LED, SUB FOR AT362406
4	T395143	2	Grommet	USE WITH AT465217
5	AT494005	1	Wiring Harness	Front/Marker Light Jumper, USE WITH AT465217
6	57M9734	1	Elec. Connector Housing	Front Turn/Marker
6	R78065	3	Elec. Connector Terminal	-
7	R78054	1	Electrical Connector Assy	To Loader Frame
7	R78061	3	Elec. Connector Terminal	-
7	57M9218	3	Elec. Connector Seal	-
8	AT494005	1	Wiring Harness	Front/Marker Light Jumper, USE WITH AT465217
9	57M9734	1	Elec. Connector Housing	Front Turn/Marker
9	R78065	3	Elec. Connector Terminal	-
10	R78054	1	Electrical Connector Assy	To Loader Frame
10	57M9218	3	Elec. Connector Seal	-
10	R78061	3	Elec. Connector Terminal	-
11	AT116162	6	Isolator	-
12	24M7545	12	Washer	10.500 X 30 X 2.500 mm
13	24M7544	2	Washer	13 X 25 X 3 mm
14	14M7688	2	Flange Nut	M12
15	R45210	2	Grommet	-
16	57M10310	2	Elec. Connector Accessory	-
17	19M9836	2	Screw	M8 X 20
18	14M7396	2	Lock Nut	M8
19	14M7593	6	Lock Nut	M10
20	19M9850	6	Screw	M10 X 65

Driving Lights with LED Turn Signal and Marker Lights
