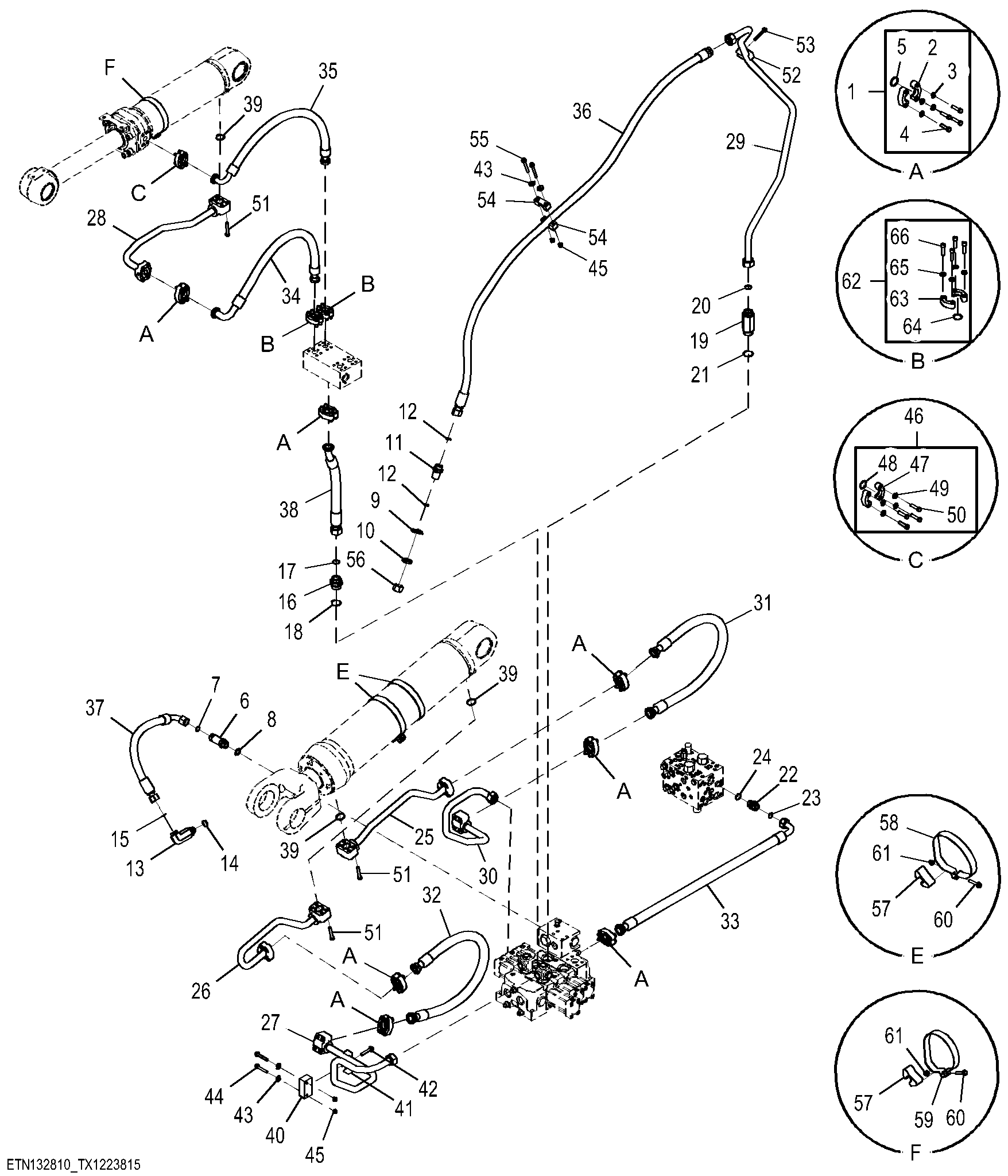

Boom And Bucket Cylinder Hydraulics (3 Spool Control Valve), Right

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT390184	7	Fitting Kit	-
2	AT131685	2	Flange Fitting	-
3	24M7240	4	Washer	13 X 25 X 3 mm
4	19M7496	4	Cap Screw	M12 X 45
5	T78393	1	O-Ring	-
6	38H3216	1	Adapter Fitting	-
7	T76938	1	O-Ring	-
8	R29936	1	O-Ring	-
9	T216836	1	Lock Washer	-
10	T78715	1	Nut	-
11	38H5220	1	Adapter Fitting	-
12	T76938	2	O-Ring	-
13	38H5415	1	Adapter Fitting	-
14	51M7048	1	O-Ring	29.600 X 2.900 mm
15	T76938	1	O-Ring	-
16	38H5523	1	Adapter Fitting	-
17	T78612	1	O-Ring	-
18	51M7120	1	O-Ring	44.600 X 2.900 mm
19	38H5524	1	Adapter Fitting	-
20	T78612	1	O-Ring	-
21	51M7120	1	O-Ring	44.600 X 2.900 mm
22	38H5006	1	Adapter Fitting	-
23	T76938	1	O-Ring	-
24	51M7048	1	O-Ring	29.600 X 2.900 mm
25	AT450146	1	Oil Line	-
26	AT450147	1	Oil Line	-
27	AT471627	1	Oil Line	-
28	AT451429	1	Oil Line	-
29	AT460555	1	Oil Line	-
30	AT467960	1	Oil Line	-
31	AT450155	1	Hydraulic Hose	Fabricate
32	AT450155	1	Hydraulic Hose	Fabricate
33	AT451509	1	Hydraulic Hose	Fabricate
34	AT450265	1	Hydraulic Hose	Fabricate
35	AT450267	1	Hydraulic Hose	Fabricate
36	AT460556	1	Hydraulic Hose	Fabricate
37	AT453430	1	Hydraulic Hose	Fabricate
38	AT460162	1	Hydraulic Hose	Fabricate
39	T78393	3	O-Ring	-
40	T424806	1	Clamp	SUB FOR T156738
41	T52979	1	Clamp	-
42	19M9980	1	Screw	M12 X 65
43	24M7545	4	Washer	10.500 X 30 X 2.500 mm
44	19M8114	2	Screw	M10 X 70
45	14M7648	4	Flange Nut	M10
46	AT397435	1	Fitting Kit	-
47	T107068	2	Flange Fitting	-
48	T78313	1	O-Ring	-
49	24M7240	4	Washer	13 X 25 X 3 mm
50	19M7496	4	Cap Screw	M12 X 45
51	19M7753	12	Cap Screw	M12 X 70
52	T104355	1	Clamp	-
53	19M9128	1	Screw	M10 X 75
54	T67995	2	Clamp	-
55	19M7811	2	Screw	M10 X 90
56	38H5480	1	Fitting	-
57	T102005	3	Guide	-
58	T362406	2	Clamp	-
59	T362408	1	Clamp	-
60	19M9849	3	Screw	M10 X 60
61	14M7593	3	Lock Nut	M10
62	AT423573	2	Flange Kit	-
63	T107068	2	Flange Fitting	-
64	T78313	1	O-Ring	-
65	24M7240	4	Washer	13 X 25 X 3 mm
66	19M8273	4	Screw	M12 X 45

Boom And Bucket Cylinder Hydraulics (3 Spool Control Valve), Right
