Открытый узел

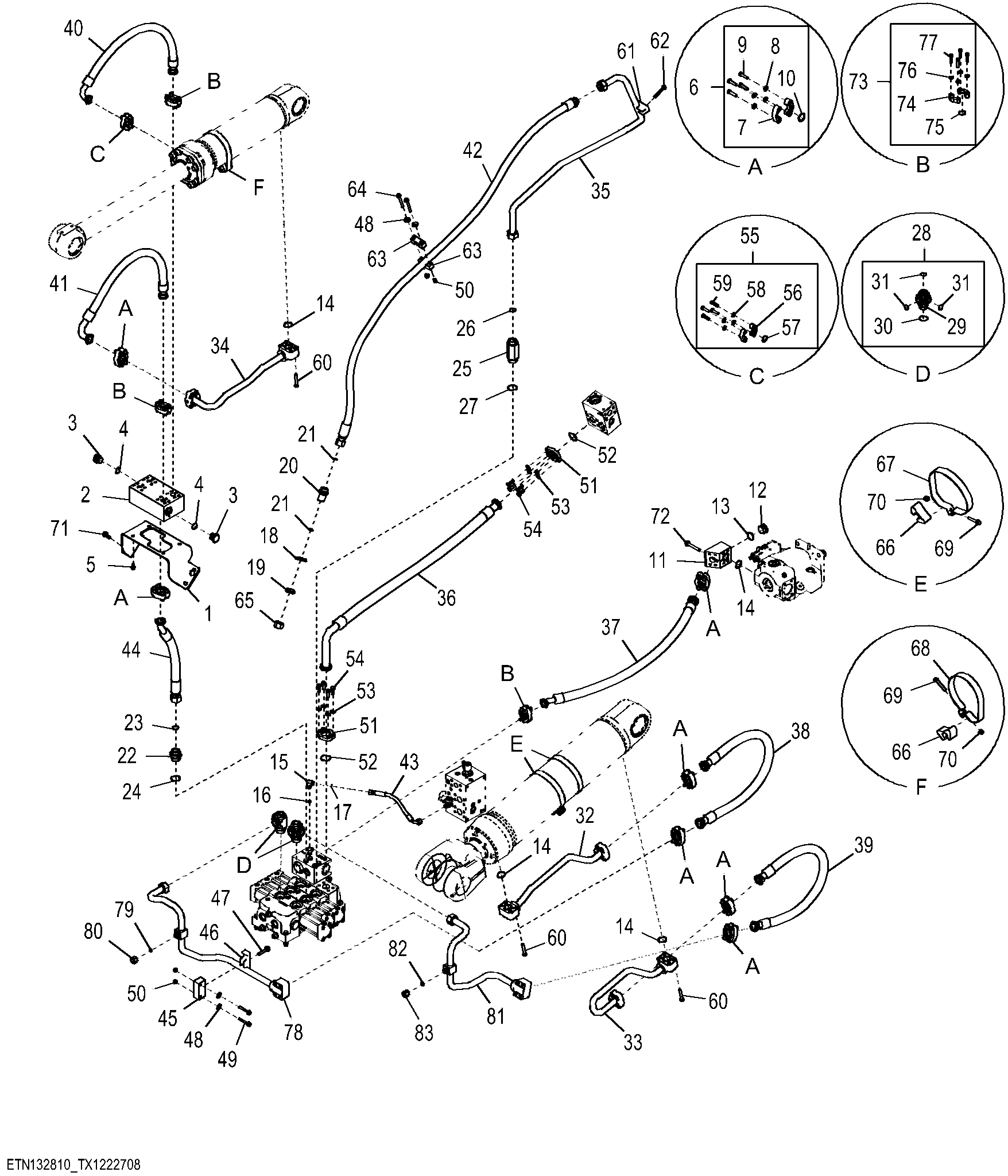

Boom And Bucket Cylinder Hydraulics (3 Spool Control Valve), Left

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T369664	1	Plate	-
2	T369660	1	Manifold	-
3	64M1010	2	Drain Plug	-
4	51M7048	2	O-Ring	29.600 X 2.900 mm
5	19M9844	4	Screw	M10 X 20
6	AT390184	7	Fitting Kit	-
7	AT131685	1	Flange Fitting	-
8	24M7240	4	Washer	13 X 25 X 3 mm
9	19M7496	4	Cap Screw	M12 X 45
10	T78393	1	O-Ring	-
11	T370037	1	Manifold	-
12	64M1025	1	Drain Plug	-
13	51M7049	1	O-Ring	38.600 X 2.900 mm
14	T78393	4	O-Ring	-
15	38H3004	1	Adapter Fitting	-
16	R26448	1	O-Ring	-
17	T77613	1	O-Ring	-
18	T216836	1	Lock Washer	-
19	T78715	1	Nut	-
20	38H5220	1	Adapter Fitting	-
21	T76938	2	O-Ring	-
22	38H5523	1	Adapter Fitting	-
23	T78612	1	O-Ring	-
24	51M7120	1	O-Ring	44.600 X 2.900 mm
25	38H5524	1	Adapter Fitting	-
26	T78612	1	O-Ring	-
27	51M7120	1	O-Ring	44.600 X 2.900 mm
28	AT458997	2	Fitting	-
29	T368696	1	Fitting	-
30	51M7120	1	O-Ring	44.600 X 2.900 mm
31	T78612	3	O-Ring	-
32	AT450146	1	Oil Line	-
33	AT450147	1	Oil Line	-
34	AT451430	1	Oil Line	-
35	AT460554	1	Oil Line	-
36	AT451503	1	Hydraulic Hose	Fabricate
37	AT451507	1	Hydraulic Hose	Fabricate, INCLUDES T78393 AND U12037
37	T78393	1	O-Ring	-
37	U12037	1	O-Ring	-
38	AT450155	1	Hydraulic Hose	Fabricate
39	AT450155	1	Hydraulic Hose	Fabricate
40	AT450156	1	Hydraulic Hose	Fabricate
41	AT450268	1	Hydraulic Hose	Fabricate
42	T78612	1	O-Ring	-
42	AT460556	1	Hydraulic Hose	Fabricate, INCLUDES T78612
43	AT458899	1	Hydraulic Hose	Fabricate
44	AT460161	1	Hydraulic Hose	Fabricate
45	T424806	1	Clamp	SUB FOR T156738
46	T52979	1	Clamp	-
47	19M9980	1	Screw	M12 X 65
48	24M7545	4	Washer	10.500 X 30 X 2.500 mm
49	19M8114	2	Screw	M10 X 70
50	14M7648	4	Flange Nut	M10
51	X51H-24	4	Flange Fitting	-
52	T34248	2	O-Ring	-
53	24M7240	8	Washer	13 X 25 X 3 mm
54	19M7403	8	Cap Screw	M12 X 35
55	AT397435	1	Fitting Kit	-
56	T107068	2	Flange Fitting	-
57	T78313	1	O-Ring	-
58	24M7240	4	Washer	13 X 25 X 3 mm
59	19M7496	4	Cap Screw	M12 X 45
60	19M7753	12	Cap Screw	M12 X 70
61	T104355	1	Clamp	-
62	19M9128	1	Screw	M10 X 75
63	T67995	2	Clamp	-
64	19M7811	2	Screw	M10 X 90
65	38H5480	1	Fitting	-
66	T102005	3	Guide	-
67	T362406	2	Clamp	-
68	T362408	1	Clamp	-
69	19M9849	3	Screw	M10 X 60
70	14M7593	3	Lock Nut	M10
71	19M10077	4	Screw	M12 X 50
72	19M7819	4	Screw	M12 X 90
73	AT423573	3	Flange Kit	-
74	T107068	2	Flange Fitting	-
75	T78313	1	O-Ring	-
76	24M7240	4	Washer	13 X 25 X 3 mm
77	19M8273	4	Screw	M12 X 45
78	AT471626	1	Oil Line	ORDER AT492042
78	AT492042	1	Oil Line	-
79	T77932	1	O-Ring	-
80	38H1417	1	Fitting	-
81	AT467961	1	Oil Line	ORDER AT492043
81	AT492043	1	Oil Line	-
82	T77932	1	O-Ring	-
83	38H1417	1	Fitting	-

Boom And Bucket Cylinder Hydraulics (3 Spool Control Valve), Left
