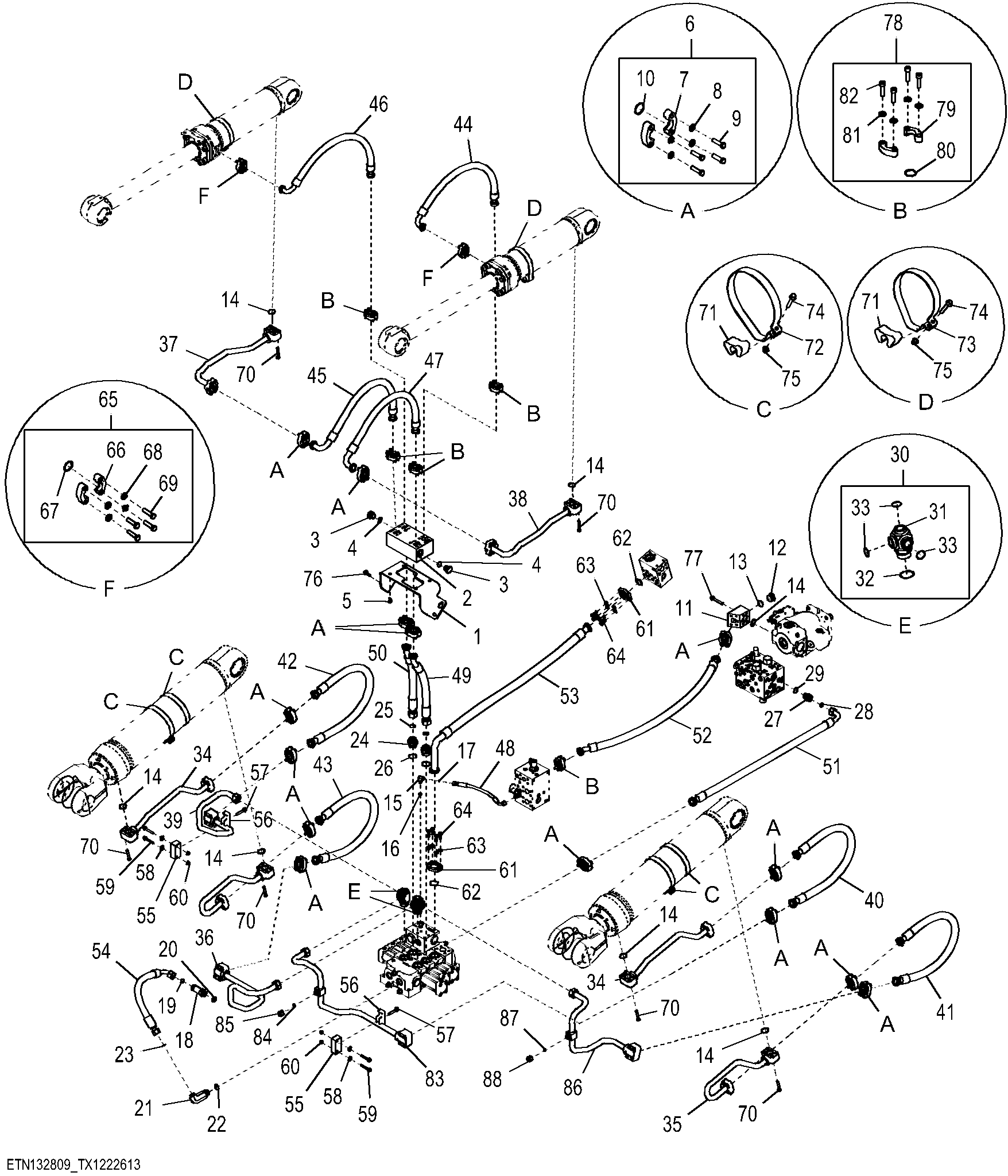

Boom And Bucket Cylinder Hydraulics (2 Spool Control Valve)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T369664	1	Plate	-
2	T369660	1	Manifold	-
3	64M1010	2	Drain Plug	-
4	51M7048	2	O-Ring	29.600 X 2.900 mm
5	19M9844	4	Screw	M10 X 20
6	AT390184	14	Fitting Kit	-
7	AT131685	2	Flange Fitting	-
8	24M7240	4	Washer	13 X 25 X 3 mm
9	19M7496	4	Cap Screw	M12 X 45
10	T78393	1	O-Ring	-
11	T370037	1	Manifold	-
12	64M1025	1	Drain Plug	-
13	51M7049	1	O-Ring	38.600 X 2.900 mm
14	T78393	7	O-Ring	-
15	38H3004	1	Adapter Fitting	-
16	R26448	1	O-Ring	-
17	T77613	1	O-Ring	-
18	38H3216	1	Adapter Fitting	-
19	T76938	1	O-Ring	-
20	R29936	1	O-Ring	-
21	38H5415	1	Adapter Fitting	-
22	51M7048	1	O-Ring	29.600 X 2.900 mm
23	T76938	1	O-Ring	-
24	38H5523	2	Adapter Fitting	-
25	T78612	2	O-Ring	-
26	51M7120	2	O-Ring	44.600 X 2.900 mm
27	38H5006	1	Adapter Fitting	-
28	T76938	1	O-Ring	-
29	51M7048	1	O-Ring	29.600 X 2.900 mm
30	AT458997	2	Fitting	-
31	T368696	1	Fitting	-
32	51M7120	1	O-Ring	44.600 X 2.900 mm
33	T78612	3	O-Ring	-
34	AT450146	2	Oil Line	-
35	AT450147	2	Oil Line	-
36	AT471627	1	Oil Line	-
37	AT451429	1	Oil Line	-
38	AT451430	1	Oil Line	-
39	AT467960	1	Oil Line	-
40	AT450155	1	Hydraulic Hose	Fabricate
41	AT450155	1	Hydraulic Hose	Fabricate
42	AT450155	1	Hydraulic Hose	Fabricate
43	AT450155	1	Hydraulic Hose	Fabricate
44	AT450156	1	Hydraulic Hose	Fabricate
45	AT450265	1	Hydraulic Hose	Fabricate
46	AT450267	1	Hydraulic Hose	Fabricate
47	AT450268	1	Hydraulic Hose	Fabricate
48	AT458899	1	Hydraulic Hose	Fabricate
49	AT460161	1	Hydraulic Hose	Fabricate
50	AT460162	1	Hydraulic Hose	Fabricate
51	AT450154	1	Hydraulic Hose	Fabricate
52	AT450153	1	Hydraulic Hose	Fabricate
53	AT450144	1	Hydraulic Hose	Fabricate
54	AT472323	1	Hydraulic Hose	-
55	T424806	2	Clamp	SUB FOR T156738
56	T52979	2	Clamp	-
57	19M9980	2	Screw	M12 X 65
58	24M7545	4	Washer	10.500 X 30 X 2.500 mm
59	19M8114	4	Screw	M10 X 70
60	14M7648	4	Flange Nut	M10
61	X51H-24	4	Flange Fitting	-
62	T34248	2	O-Ring	-
63	24M7240	8	Washer	13 X 25 X 3 mm
64	19M7403	8	Cap Screw	M12 X 35
65	AT397435	2	Fitting Kit	-
66	T107068	2	Flange Fitting	-
67	T78313	1	O-Ring	-
68	24M7240	4	Washer	13 X 25 X 3 mm
69	19M7496	4	Cap Screw	M12 X 45
70	19M7753	24	Cap Screw	M12 X 70
71	T102005	6	Guide	-
72	T362406	4	Clamp	-
73	T362408	2	Clamp	-
74	19M9849	6	Screw	M10 X 60
75	14M7593	6	Lock Nut	M10
76	19M10077	4	Screw	M12 X 50
77	19M7819	4	Screw	M12 X 90
78	AT423573	5	Flange Kit	-
79	T107068	2	Flange Fitting	-
80	T78313	1	O-Ring	-
81	24M7240	4	Washer	13 X 25 X 3 mm
82	19M8273	4	Screw	M12 X 45
83	AT471626	1	Oil Line	ORDER AT492042
83	AT492042	1	Oil Line	-
84	T77932	1	O-Ring	-
85	38H1417	1	Fitting	-
86	AT467961	1	Oil Line	ORDER AT492043
86	AT492043	1	Oil Line	-
87	T77932	1	O-Ring	-
88	38H1417	1	Fitting	-
