Axle Cooling and Filtration System for Front Differential Lock, Rear Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT458118	2	Plate	-
2	AT471098	1	Bracket	Axle Cooling Tubes Rear Bracket
3	AT471097	2	Bracket	Axle Cooling Tubes Middle Bracket
4	AT471096	1	Bracket	Axle Cooling Tubes Front Bracket
5	AT457664	2	Plate	-
6	T383970	1	Plate	-
7	AT467065	1	Plate	-
8	AT309296	1	Pump	Axle Cooling Pump
9	38H1623	2	Adapter Fitting	-
10	T77857	2	O-Ring	-
11	R26375	2	O-Ring	-
12	38H5069	2	Tee Fitting	-
13	T77857	4	O-Ring	-
14	R500318	1	O-Ring	-
15	38H5003	2	Adapter Fitting	-
16	T77857	2	O-Ring	-
17	51M7043	2	O-Ring	15.300 X 2.200 mm
18	38H5004	1	Adapter Fitting	-
19	T77932	1	O-Ring	-
20	51M7045	1	O-Ring	19.300 X 2.200 mm
21	38H5107	2	Elbow Fitting	-
22	T77857	2	O-Ring	-
23	38H5221	2	Adapter Fitting	-
24	T77932	4	O-Ring	-
25	38H5130	1	Elbow Fitting	-
26	T77932	2	O-Ring	-
27	38H3162	1	Adapter Fitting	-
28	T77932	1	O-Ring	-
29	R26906	1	O-Ring	-
30	38H5385	1	Adapter Fitting	-
31	T77932	1	O-Ring	-
32	24M7294	5	Washer	26 X 39 X 4 mm
33	38H1520	1	Tee Fitting	-
34	T77857	2	O-Ring	-
35	T77932	1	O-Ring	-
36	38H5093	4	Nut	1"
37	19M7789	5	Screw	M12 X 30
38	19M9984	1	Screw	M12 X 35
39	H75541	4	Clamp	-
40	19M9844	5	Screw	M10 X 20
41	T77932	4	O-Ring	-
42	AH77869	2	Clip	-
43	AT312932	2	Fitting	-
44	T218003	2	Label	Axle/Gearbox Oil
45	T238029	1	Adjusting Strap	-
46	AT462558	1	Oil Line	-
47	AT462559	1	Oil Line	-
48	AT470274	1	Oil Line	-
49	AT449980	1	Oil Line	-
50	AT450218	1	Oil Line	-
51	AT470271	1	Oil Line	Cooler To Valve - Front
52	AT470270	1	Oil Line	-
53	AT470275	1	Oil Line	Front Suction To Pump
54	AT470269	1	Oil Line	Valve To Cooler - Front
55	AT470272	1	Oil Line	Valve To Cooler - Rear
56	AT470273	1	Oil Line	Pump To Filter - Rear
57	AT470276	1	Oil Line	Pump To Filter - Front
58	AT470290	1	Hydraulic Hose	Cooler Outlet - Front, INCLUDES T77932
59	T77932	1	O-Ring	-
60	AT470289	1	Hydraulic Hose	Cooler Inlet - Front, INCLUDES T77932
61	T77932	1	O-Ring	-
62	AT470298	1	Hydraulic Hose	Cooler Outlet - Rear, INCLUDES T77932
63	T77932	1	O-Ring	-
64	AT470297	1	Hydraulic Hose	Cooler Inlet - Rear, INCLUDES T77932
65	T77932	1	O-Ring	-
66	AT490791	1	Hydraulic Hose	Pump Outlet - Rear, INCLUDES T77932; SUB FOR AT470295
67	T77932	1	O-Ring	-
68	AT490790	1	Hydraulic Hose	Front Pump Outlet, INCLUDES T77932; SUB FOR AT470285
69	T77932	1	O-Ring	-
70	AT449969	1	Hydraulic Hose	INCLUDES T77932
71	T77932	1	O-Ring	-
72	AT470293	1	Hydraulic Hose	INCLUDES T77932
73	T77932	1	O-Ring	-
74	AT470284	1	Hydraulic Hose	Front Suction Pump, INCLUDES R26906 AND T77858
75	T77858	1	O-Ring	-
75	T77858	1	O-Ring	-
76	R26906	1	O-Ring	-
76	R26906	1	O-Ring	-
77	AT470294	1	Hydraulic Hose	Suction Pump In - Rear
78	T28949	1	Clamp	-
79	H135155	10	Clamp	-
80	H120847	36	Clamp	-
81	H121168	7	Plate	-
82	19M9873	11	Screw	M12 X 25
83	19M9843	7	Screw	M8 X 90
84	19M7970	4	Screw	M8 X 100
85	H112567	1	Plate	-
86	19M7803	1	Screw	M8 X 70
87	T178063	4	Washer	-
88	14M7649	14	Flange Nut	M8
89	T238029	1	Adjusting Strap	-
90	H224073	1	Tie Band	-

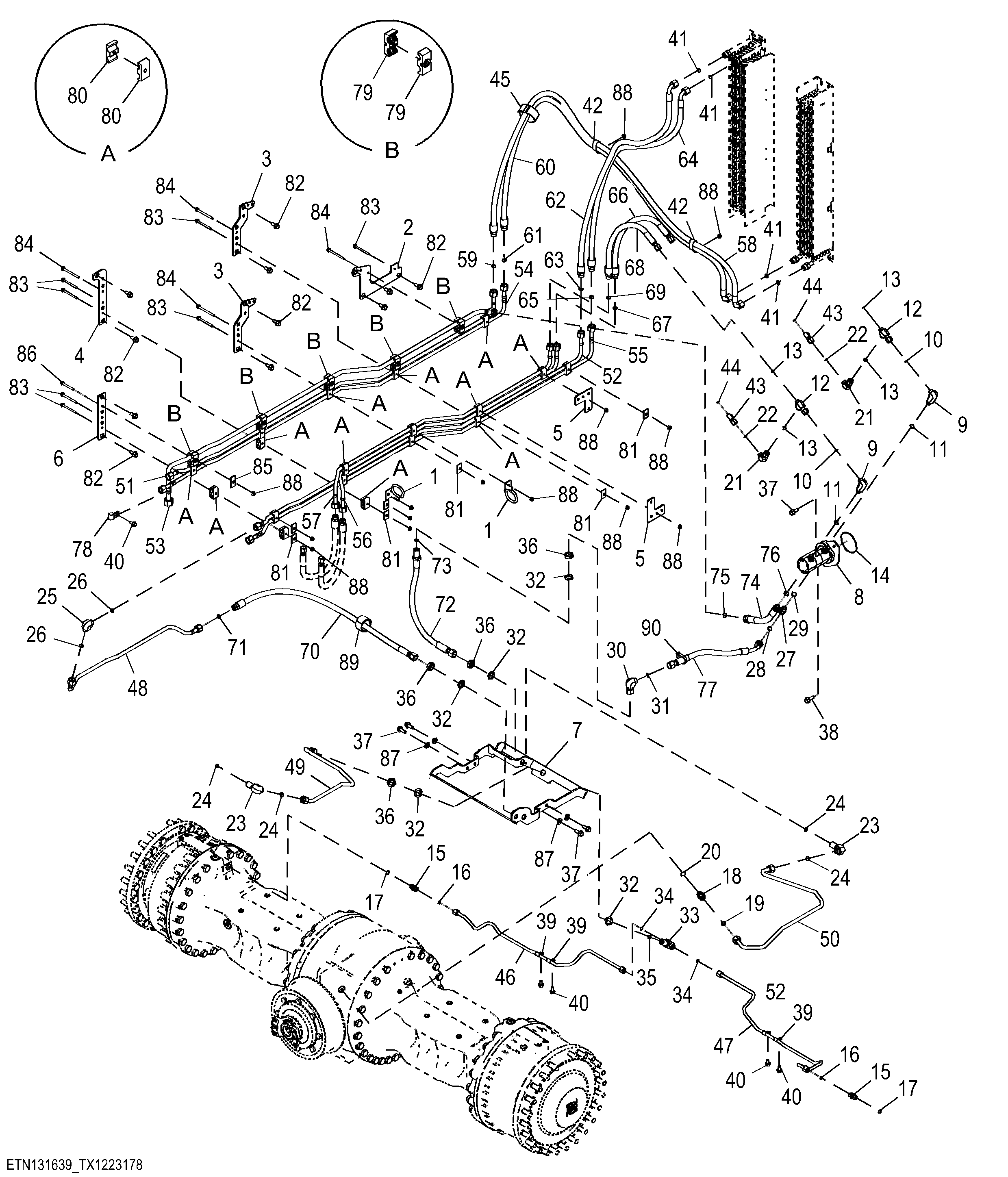

Axle Cooling and Filtration System for Front Differential Lock, Rear Axle
