Axle Cooling and Filtration System for Front Differential Lock, Front Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT457948	1	Support	-
2	34M7250	2	Spring Pin	10 X 20 mm
3	AT489922	1	Filter Element	SUB FOR AT333901
3	AT333900	2	Filter	-
3	R567277	1	Ring	SUB FOR R319585
3	T70177	1	O-Ring	-
3	12H295	1	Lock Washer	0.190"
3	AT349964	1	Pressure Switch	-
3	14H778	2	Nut	0.190"
4	AT472197	1	Bracket	-
5	AT450139	1	Plate	-
6	AT380261	1	Valve	Differential Lock Components On Separate Page
7	19M7810	2	Screw	M10 X 80
8	38H1005	1	Elbow Fitting	-
9	R26375	1	O-Ring	-
10	T77857	1	O-Ring	-
11	38H3317	2	Elbow Fitting	-
12	T77932	2	O-Ring	-
13	R26375	2	O-Ring	-
14	38H5175	1	Tee Fitting	-
15	T77932	2	O-Ring	-
16	38H3709	1	Adapter Fitting	-
17	R26375	1	O-Ring	-
18	T77613	1	O-Ring	-
19	38H3004	1	Adapter Fitting	-
20	R26448	1	O-Ring	-
21	T77613	1	O-Ring	-
22	38H3175	1	Adapter Fitting	-
23	T77857	1	O-Ring	-
24	U12547	1	O-Ring	-
25	38H3534	1	Elbow Fitting	-
26	T77857	1	O-Ring	-
27	U12547	1	O-Ring	-
28	19M9844	11	Screw	M10 X 20
29	T360728	1	Plate	-
30	T384419	1	Plate	-
31	T398153	1	Plate	Articulation Bulkhead, SUB FOR T378855
32	AT481716	1	Bracket	Articulation Bracket, SUB FOR T378855
33	38H5004	1	Adapter Fitting	-
34	T77932	1	O-Ring	-
35	51M7045	1	O-Ring	19.300 X 2.200 mm
36	38H5003	2	Adapter Fitting	-
37	T77857	2	O-Ring	-
38	51M7043	2	O-Ring	15.300 X 2.200 mm
39	38H5008	1	Adapter Fitting	-
40	T77613	1	O-Ring	-
41	51M7040	1	O-Ring	9.300 X 2.200 mm
42	38H5098	2	Elbow Fitting	-
43	T77857	4	O-Ring	-
44	38H5221	1	Adapter Fitting	-
45	T77932	2	O-Ring	-
46	38H5130	1	Elbow Fitting	-
47	T77932	2	O-Ring	-
48	24M7396	5	Washer	21 X 34 X 3 mm
49	38H5062	1	Tee Fitting	-
50	T77857	3	O-Ring	-
51	H75541	4	Clamp	-
52	19M9405	4	Screw	M8 X 16
53	T178063	4	Washer	-
54	19M7789	4	Screw	M12 X 30
55	T278328	1	Tee Fitting	-
56	T77857	1	O-Ring	-
57	U12547	1	O-Ring	-
58	AT462556	1	Oil Line	-
59	AT462557	1	Oil Line	-
60	RE537637	2	Coolant Temperature Sensor	-
61	AT470288	1	Hydraulic Hose	Filter to Valve - Front
62	AT470291	1	Hydraulic Hose	Valve Differential Lock - Front
63	AT470292	1	Hydraulic Hose	-
64	AT470286	1	Hydraulic Hose	Pump To Filter - Front, INCLUDES T77932
64	T77932	1	O-Ring	-
65	AT470287	1	Hydraulic Hose	Pump To Filter - Rear, INCLUDES T77932
65	T77932	1	O-Ring	-
66	AT470278	1	Hydraulic Hose	To Front Differential Lock, INCLUDES T77613
66	T77613	1	O-Ring	-
67	AT470280	1	Hydraulic Hose	-
68	T77857	1	O-Ring	-
68	AT470277	1	Hydraulic Hose	To Front Axle, INCLUDES T77857
69	AT470281	1	Hydraulic Hose	-
70	AT470279	1	Hydraulic Hose	INCLUDES T77932
70	T77932	1	O-Ring	-
71	AT470282	1	Hydraulic Hose	-
72	AT470283	1	Hydraulic Hose	INCLUDES T77858
72	T77858	1	O-Ring	-
73	AT471075	1	Hydraulic Hose	Filter to Cooler Rear
74	19M9845	6	Screw	M10 X 25
75	24M7294	2	Washer	26 X 39 X 4 mm
76	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
77	38H5093	2	Nut	1"
78	38H5092	4	Nut	13/16"
79	38H5091	1	Nut	11/16"
80	24M7427	4	Washer	15 X 24 X 2.500 mm
81	19M7877	4	Cap Screw	M14 X 30
82	RE60701	1	Diagnostic Coupling	-
83	R77175	1	Cover	-
84	19M9873	2	Screw	M12 X 25
85	T78787	1	Clamp	SUB FOR T76719
86	T238029	1	Adjusting Strap	-
87	H224073	1	Tie Band	-
88	19M9370	2	Screw	M10 X 30, USE WITH AT481716 AND T398153

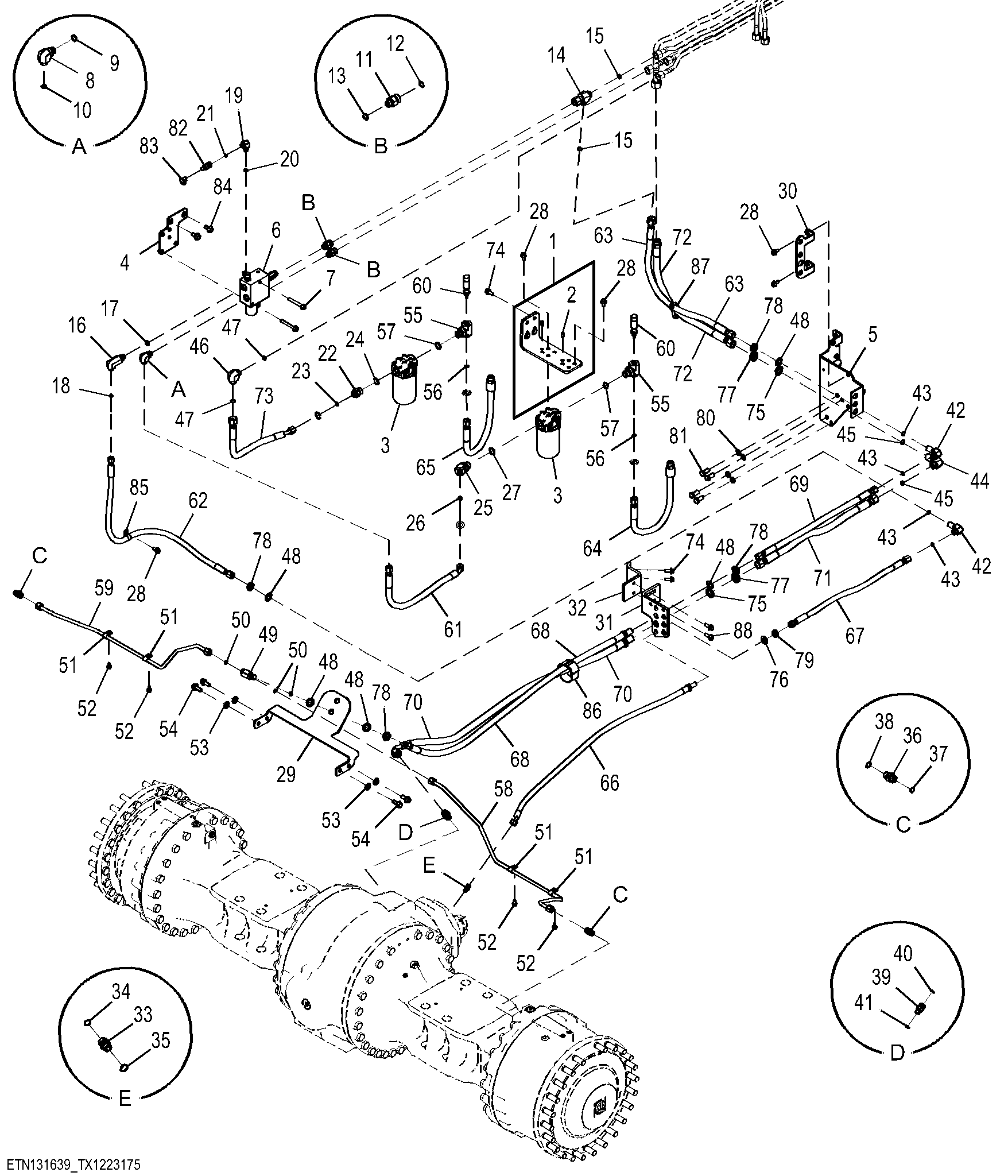

Axle Cooling and Filtration System for Front Differential Lock, Front Axle
