Axle Cooling and Filtration System for Dual Differential Lock, Rear Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT458118	2	Plate	-
2	AT471098	1	Bracket	Axle Cooling Tubes Rear Bracket
3	AT471097	2	Bracket	Axle Cooling Tubes Middle Bracket
4	AT471096	1	Bracket	Axle Cooling Tubes Front Bracket
5	AT457664	2	Plate	-
6	38H5175	1	Tee Fitting	-
7	T77932	2	O-Ring	-
8	T383970	1	Plate	-
9	AT467065	1	Plate	-
10	AT309296	1	Pump	Axle Cooling Pump
11	38H1623	2	Adapter Fitting	-
12	T77857	2	O-Ring	-
13	R26375	2	O-Ring	-
14	38H5069	2	Tee Fitting	-
15	T77857	4	O-Ring	-
16	R500318	1	O-Ring	-
17	38H5003	2	Adapter Fitting	-
18	T77857	2	O-Ring	-
19	51M7043	2	O-Ring	15.300 X 2.200 mm
20	38H5004	1	Adapter Fitting	-
21	T77932	1	O-Ring	-
22	51M7045	1	O-Ring	19.300 X 2.200 mm
23	38H5107	2	Elbow Fitting	-
24	T77857	2	O-Ring	-
25	38H5221	2	Adapter Fitting	-
26	T77932	4	O-Ring	-
27	38H5257	1	Adapter Fitting	-
28	51M7040	1	O-Ring	9.300 X 2.200 mm
29	T77857	1	O-Ring	-
30	38H5098	1	Elbow Fitting	-
31	T77857	2	O-Ring	-
32	24M7294	5	Washer	26 X 39 X 4 mm
33	38H3162	1	Adapter Fitting	-
34	T77932	1	O-Ring	-
35	R26906	1	O-Ring	-
36	38H5385	1	Adapter Fitting	-
37	T77932	1	O-Ring	-
38	38H1520	1	Tee Fitting	-
39	T77857	2	O-Ring	-
40	T77932	1	O-Ring	-
41	38H5093	4	Nut	1"
42	24M7396	1	Washer	21 X 34 X 3 mm
43	38H5092	1	Nut	13/16"
44	19M7789	5	Screw	M12 X 30
45	19M9984	1	Screw	M12 X 35
46	H75541	4	Clamp	-
47	19M9844	5	Screw	M10 X 20
48	T77932	4	O-Ring	-
49	AH77869	2	Clip	-
50	AT312932	2	Fitting	-
51	T218003	2	Label	Axle/Gearbox Oil
52	T238029	1	Adjusting Strap	-
53	AT462558	1	Oil Line	-
54	AT462559	1	Oil Line	-
55	AT470274	1	Oil Line	-
56	AT449980	1	Oil Line	-
57	AT473245	1	Oil Line	-
58	AT450218	1	Oil Line	-
59	AT470271	1	Oil Line	Cooler To Valve - Front
60	AT470270	1	Oil Line	-
61	AT470275	1	Oil Line	Front Suction To Pump
62	AT470269	1	Oil Line	Valve To Cooler - Front
63	AT470272	1	Oil Line	Valve To Cooler - Rear
64	AT470273	1	Oil Line	Pump To Filter - Rear
65	AT470276	1	Oil Line	Pump To Filter - Front
66	AT470290	1	Hydraulic Hose	Cooler Outlet - Front, INCLUDES T77932
67	T77932	1	O-Ring	-
68	AT470289	1	Hydraulic Hose	Cooler Inlet - Front, INCLUDES T77932
69	T77932	1	O-Ring	-
70	AT470298	1	Hydraulic Hose	Cooler Outlet - Rear, INCLUDES T77932
71	T77932	1	O-Ring	-
72	AT470297	1	Hydraulic Hose	Cooler Inlet - Rear, INCLUDES T77932
73	T77932	1	O-Ring	-
74	AT490791	1	Hydraulic Hose	Pump Outlet - Rear, INCLUDES T77932; SUB FOR AT470295
75	T77932	1	O-Ring	-
76	AT490790	1	Hydraulic Hose	Front Pump Outlet, INCLUDES T77932; SUB FOR AT470285
77	T77932	1	O-Ring	-
78	AT449974	1	Hydraulic Hose	INCLUDES T77932
79	T77932	1	O-Ring	-
80	AT449969	1	Hydraulic Hose	INCLUDES T77932
81	T77932	1	O-Ring	-
82	AT470293	1	Hydraulic Hose	INCLUDES T77932
82	T77932	1	O-Ring	-
83	AT470284	1	Hydraulic Hose	Front Suction Pump, INCLUDES R26906 AND T77858
84	T77858	1	O-Ring	-
85	R26906	1	O-Ring	-
86	AT470294	1	Hydraulic Hose	Suction Pump In - Rear
87	H224073	1	Tie Band	-
88	T28949	1	Clamp	-
89	H135155	10	Clamp	-
90	H120847	36	Clamp	-
91	H121168	7	Plate	-
92	19M9873	11	Screw	M12 X 25
93	19M9843	7	Screw	M8 X 90
94	19M7970	4	Screw	M8 X 100
95	H112567	1	Plate	-
96	19M7803	1	Screw	M8 X 70
97	T178063	4	Washer	-
98	14M7649	14	Flange Nut	M8

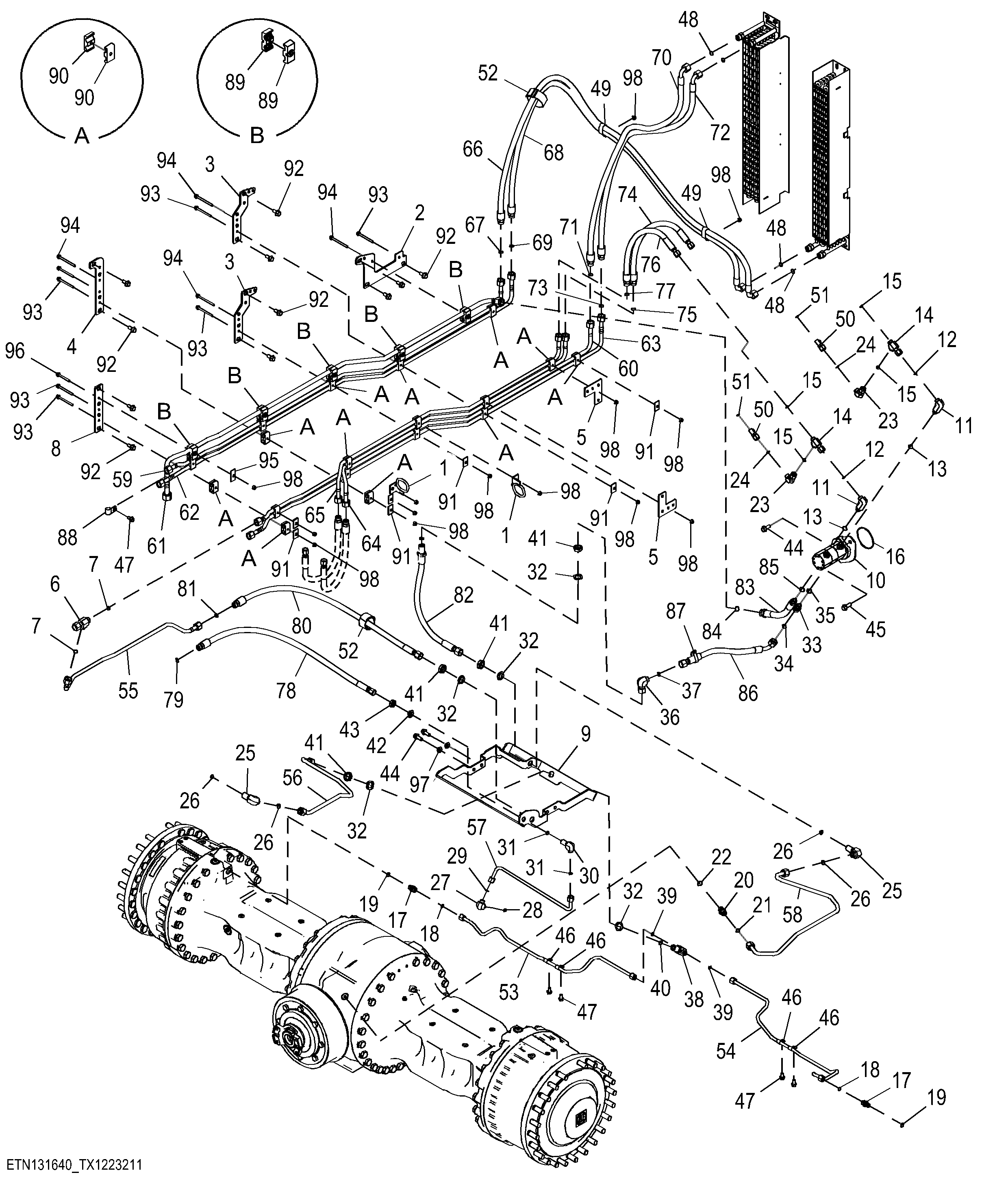

Axle Cooling and Filtration System for Dual Differential Lock, Rear Axle
