Axle Cooling and Filtration System for Dual Differential Lock, Front Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT457948	1	Support	-
2	34M7250	2	Spring Pin	10 X 20 mm
3	AT489922	1	Filter Element	SUB FOR AT333901
3	AT333900	2	Filter	-
3	R567277	1	Ring	SUB FOR R319585
3	T70177	1	O-Ring	-
3	12H295	1	Lock Washer	0.190"
3	AT349964	1	Pressure Switch	-
3	14H778	2	Nut	0.190"
4	AT450139	1	Plate	-
5	AT380261	2	Valve	Differential Lock Components On Separate Page
6	19M8896	2	Screw	M10 X 140
7	38H1005	1	Elbow Fitting	-
8	R26375	1	O-Ring	-
9	T77857	1	O-Ring	-
10	38H3317	5	Elbow Fitting	-
11	T77932	5	O-Ring	-
12	R26375	5	O-Ring	-
13	38H5175	1	Tee Fitting	-
14	T77932	2	O-Ring	-
15	38H3709	1	Adapter Fitting	-
16	R26375	1	O-Ring	-
17	T77613	1	O-Ring	-
18	38H3004	2	Adapter Fitting	-
19	R26448	2	O-Ring	-
20	T77613	2	O-Ring	-
21	38H5385	1	Adapter Fitting	-
22	T77932	1	O-Ring	-
23	38H3175	1	Adapter Fitting	-
24	T77857	1	O-Ring	-
25	U12547	1	O-Ring	-
26	38H3534	1	Elbow Fitting	-
27	T77857	1	O-Ring	-
28	U12547	1	O-Ring	-
29	AT472197	1	Bracket	-
30	19M9844	11	Screw	M10 X 20
31	T360728	1	Plate	-
32	T384419	1	Plate	-
33	T398153	1	Plate	SUB FOR T378855
34	AT481716	1	Bracket	SUB FOR T378855
35	38H5004	1	Adapter Fitting	-
36	T77932	1	O-Ring	-
37	51M7045	1	O-Ring	19.300 X 2.200 mm
38	38H5003	2	Adapter Fitting	-
39	T77857	2	O-Ring	-
40	51M7043	2	O-Ring	15.300 X 2.200 mm
41	38H5008	1	Adapter Fitting	-
42	T77613	1	O-Ring	-
43	51M7040	1	O-Ring	9.300 X 2.200 mm
44	38H5098	1	Elbow Fitting	-
45	T77857	2	O-Ring	-
46	38H5221	1	Adapter Fitting	-
47	T77932	2	O-Ring	-
48	24M7396	5	Washer	21 X 34 X 3 mm
49	38H5062	1	Tee Fitting	-
50	T77857	3	O-Ring	-
51	H75541	4	Clamp	-
52	19M9405	4	Screw	M8 X 16
53	T178063	4	Washer	-
54	19M7789	4	Screw	M12 X 30
55	T278328	2	Tee Fitting	-
56	T77857	2	O-Ring	-
57	U12547	2	O-Ring	-
58	AT462556	1	Oil Line	-
59	AT462557	1	Oil Line	-
60	AT449970	1	Oil Line	-
61	RE537637	2	Coolant Temperature Sensor	-
62	AT470288	1	Hydraulic Hose	Filter to Valve - Front
63	AT470291	1	Hydraulic Hose	Valve Differential Lock - Front
64	AT470292	1	Hydraulic Hose	-
65	AT470286	1	Hydraulic Hose	Pump To Filter - Front, INCLUDES T77932
65	T77932	1	O-Ring	-
66	AT470287	1	Hydraulic Hose	Pump To Filter - Rear, INCLUDES T77932
66	T77932	1	O-Ring	-
67	AT470278	1	Hydraulic Hose	INCLUDES T77613
67	T77613	1	O-Ring	-
68	AT470280	1	Hydraulic Hose	-
69	T77857	1	O-Ring	-
69	AT470277	1	Hydraulic Hose	To Front Axle, INCLUDES T77857
70	AT470281	1	Hydraulic Hose	-
71	AT470279	1	Hydraulic Hose	INCLUDES T77932
71	T77932	1	O-Ring	-
72	AT470282	1	Hydraulic Hose	-
73	AT470283	1	Hydraulic Hose	INCLUDES T77858
73	T77858	1	O-Ring	-
74	AT470296	1	Hydraulic Hose	Filter To Valve - Rear
75	H224073	1	Tie Band	-
76	19M9845	6	Screw	M10 X 25
77	24M7294	2	Washer	26 X 39 X 4 mm
78	24H1391	1	Washer	25/32" X 1-5/16" X 0.060"
79	38H5093	2	Nut	1"
80	38H5092	4	Nut	13/16"
81	38H5091	1	Nut	11/16"
82	24M7427	4	Washer	15 X 24 X 2.500 mm
83	19M7877	4	Cap Screw	M14 X 30
84	RE60701	2	Diagnostic Coupling	-
85	R77175	2	Cover	-
86	19M9873	2	Screw	M12 X 25
87	T78787	1	Clamp	SUB FOR T76719
88	T238029	1	Adjusting Strap	-
89	19M9370	2	Screw	M10 X 30, USE WITH T398153 AND AT481716

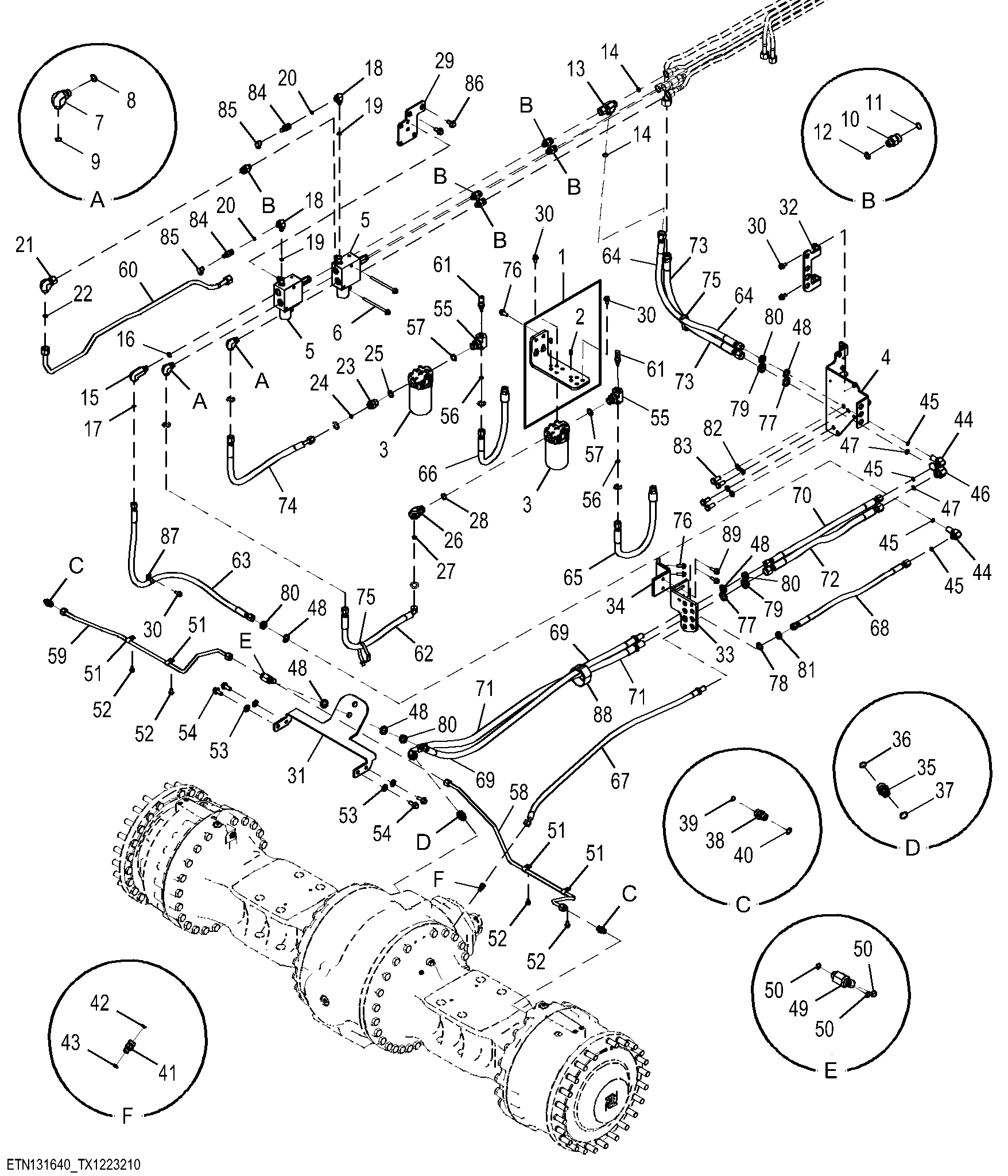

Axle Cooling and Filtration System for Dual Differential Lock, Front Axle
