Открытый узел

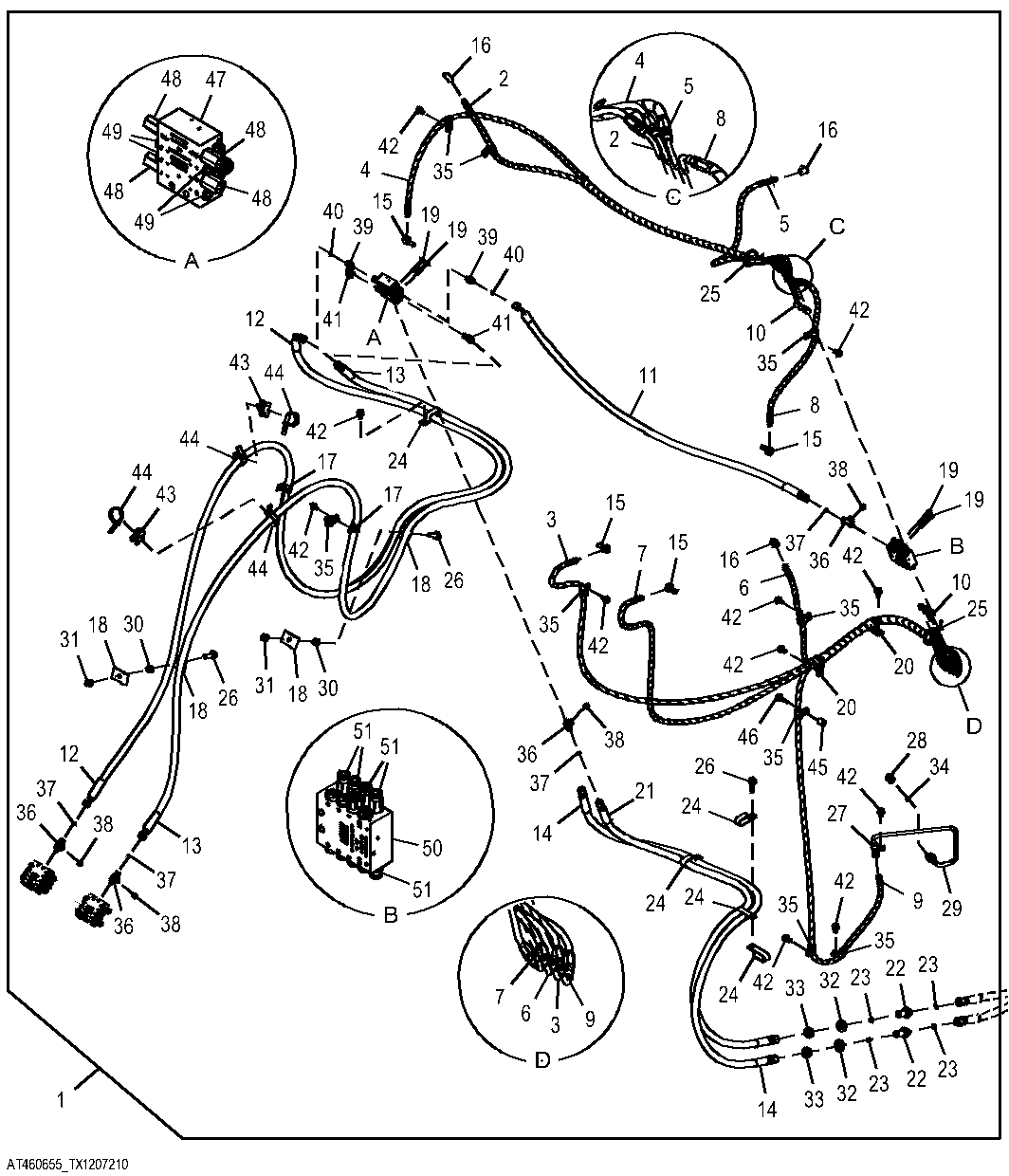

Auto Lubrication System, Middle (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT460655	1	Pin & Bushing Kit	Whole Goods Additional Components Listed On Seperate Pages
2	-	1	Part 2	MAKE FROM AT453340, CTL 2.17 m (7.12 ft), ALSO ORDER T348985, T361960 AND T361962
2	T361962	1	Sleeve Fitting	-
2	T348985	1	Lubrication Fitting	-
2	T361960	1	Fitting	-
3	-	1	Part 6	MAKE FROM AT453340, CTL 2.93 m (9.61 ft), ALSO ORDER T348985, T361960 AND T361962
3	T348985	1	Lubrication Fitting	-
3	T361960	1	Fitting	-
3	T361962	1	Sleeve Fitting	-
4	-	1	Part 10	MAKE FROM AT453340, CTL 2.45 m (8.02 ft), ALSO ORDER T348985, T361960 AND T361962
4	T348985	1	Lubrication Fitting	-
4	T361960	1	Fitting	-
4	T361962	1	Sleeve Fitting	-
5	-	1	Part 14	MAKE FROM AT453340, CTL 1.57 m (5.13 ft), ALSO ORDER T348985, T361960 AND T361962
5	T361962	1	Sleeve Fitting	-
5	T361960	1	Fitting	-
5	T348985	1	Lubrication Fitting	-
6	-	1	Part 18	MAKE FROM AT453340, CTL 1.8 m (5.89 ft), ALSO ORDER T348985, T361960 AND T361962
6	T348985	1	Lubrication Fitting	-
6	T361960	1	Fitting	-
6	T361962	1	Sleeve Fitting	-
7	-	1	Part 22	MAKE FROM AT453340, CTL 2.76 m (9.06 ft), ALSO ORDER T348985, T361960 AND T361962
7	T361962	1	Sleeve Fitting	-
7	T361960	1	Fitting	-
7	T348985	1	Lubrication Fitting	-
8	-	1	Part 26	MAKE FROM AT453340, CTL 1.18 m (3.87 ft), ALSO ORDER T348985, T361960 AND T361962
8	T348985	1	Lubrication Fitting	-
8	T361960	1	Fitting	-
8	T361962	1	Sleeve Fitting	-
9	-	1	Part 30	MAKE FROM AT453340, CTL 2.98 m (9.78 ft), ALSO ORDER T348985, T361960 AND T361962
9	T348985	1	Lubrication Fitting	-
9	T361960	1	Fitting	-
9	T361962	1	Sleeve Fitting	-
10	T361714	8	Boot	-
11	AT435331	1	Hydraulic Hose	Fabricate
12	AT435727	1	Hydraulic Hose	Fabricate
13	AT441981	1	Hydraulic Hose	Fabricate
14	AT441980	1	Hydraulic Hose	Fabricate
15	E53801	4	Elbow Fitting	-
16	T56112	3	Elbow Fitting	-
17	T74416	2	Clamp	-
18	R46919	4	Half Clamp	-
19	19M7834	4	Screw	M6 X 45
20	T102934	2	Clamp	-
21	AT441835	1	Hydraulic Hose	Fabricate
22	38H1285	2	Union Fitting	-
23	T77613	4	O-Ring	-
24	R56171	5	Clip	-
25	R44302	2	Tie Band	-
26	19M7835	3	Screw	M10 X 35
27	T78974	1	Clamp	-
28	H127578	1	Adapter Fitting	-
29	AT443942	1	Oil Line	-
30	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
31	14M7400	2	Lock Nut	M10
32	24H1391	2	Washer	25/32" X 1-5/16" X 0.060"
33	T81029	2	Nut	-
34	T77613	1	O-Ring	-
35	T269640	9	Clamp	-
36	T360946	1	Lubrication Fitting	-
37	T77814	1	O-Ring	-
38	JD7759	4	Lubrication Fitting	-
39	T80937	2	Adapter Fitting	-
40	T11899	2	O-Ring	-
41	RE202639	2	Elbow Fitting	-
42	19M7865	11	Screw	M8 X 16
43	AN209168	1	Swivel	-
44	H224073	4	Tie Band	-
45	T158436	1	Spacer	-
46	19M7897	1	Screw	M8 X 35
47	T352148	1	Valve	-
48	T349378	4	Adapter Fitting	-
48	T349381	1	Adapter Fitting	-
49	T349382	4	Plug	-
50	T352148	1	Valve	-
51	T349383	8	Quick Coupler	-

Auto Lubrication System, Middle (2/3)

Нет текстового описания
